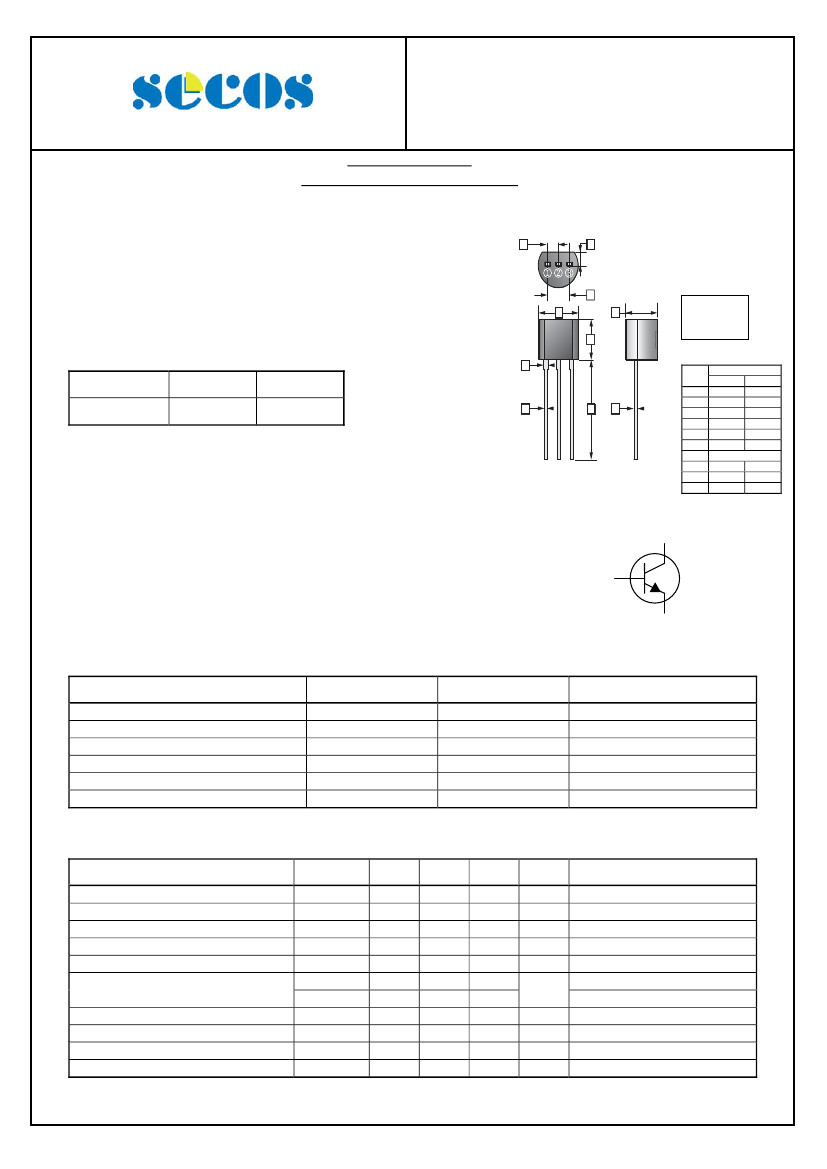

2SC2551

Elektronische Bauelemente

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

0.1 A , 300 V

NPN Plastic Encapsulated Transistor

FEATURES



High Voltage



Low Saturation Voltage



Small Collector Output Capacitance



Complementary to 2SA1091

TO-92

G

H

J

A

B

D

Emitter

Collector

Base

CLASSIFICATION OF h

FE(1)

Product-Rank

Range

2SC2551-R

30~90

2SC2551-O

50~150

K

REF.

A

B

C

D

E

F

G

H

J

K

E

C

F

Millimeter

Min.

Max.

4.40

4.70

4.30

4.70

12.70

-

3.30

3.81

0.36

0.56

0.36

0.51

1.27 TYP.

1.10

-

2.42

2.66

0.36

0.76

Collector





Base



Emitter

ABSOLUTE MAXIMUM RATINGS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector to Base Voltage

Collector to Emitter Voltage

Emitter to Base Voltage

Collector Current - Continuous

Collector Power Dissipation

Junction, Storage Temperature

Symbol

V

CBO

V

CEO

V

EBO

I

C

P

C

T

J

, T

STG

Rating

300

6

0.1

400

150, -55~150

Unit

V

A

mW

°C

ELECTRICAL CHARACTERISTICS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector to Base Breakdown Voltage

Collector to Emitter Breakdown Voltage

Emitter to Base Breakdown Voltage

Collector Cut – Off Current

Emitter Cut – Off Current

DC Current Gain

Collector to Emitter Saturation Voltage

Base to Emitter voltage

Transition Frequency

Collector Output Capacitance

Symbol

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

I

CBO

I

EBO

h

FE(1)

h

FE(2)

*

Min.

300

6

-

30

20

-

Typ.

-

80

-

Max.

-

0.1

150

-

0.5

1.2

-

4

Unit

V

μA

Test Conditions

I

C

=100μA, I

E

=0

I

C

=1mA, I

B

=0

I

E

=100μA, I

C

=0

V

CB

=300V, I

E

=0

V

EB

=6V, I

C

=0

V

CE

=10V, I

C

=20mA

V

CE

=10V, I

C

=1mA

V

CE(sat)

V

BE(sat)

f

T

C

ob

V

MHz

pF

I

C

=20mA, I

B

=2mA

I

C

=20mA, I

B

=2mA

V

CE

=10V, I

C

=20mA

V

CB

=20V, I

E

=0, f=1MHz

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

21-Feb-2011 Rev. A

Page 1 of 3
