Datasheet> All Categories > Discrete semiconductor> The transistor> 2N7331R

2N7331R: DescriptionPower Field-Effect Transistor, 19A I(D), 200V, 0.21ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-258AA, TO-258, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size46KB，5 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

2N7331R Overview

Power Field-Effect Transistor, 19A I(D), 200V, 0.21ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-258AA, TO-258, 3 PIN

2N7331R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	FLANGE MOUNT, R-MSFM-P3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RADIATION HARDENED
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (Abs) (ID)	19 A
Maximum drain current (ID)	19 A
Maximum drain-source on-resistance	0.21 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-258AA
JESD-30 code	R-MSFM-P3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	150 W
Maximum power dissipation(Abs)	150 W
Maximum pulsed drain current (IDM)	57 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	SINGLE
Transistor component materials	SILICON
Base Number Matches	1

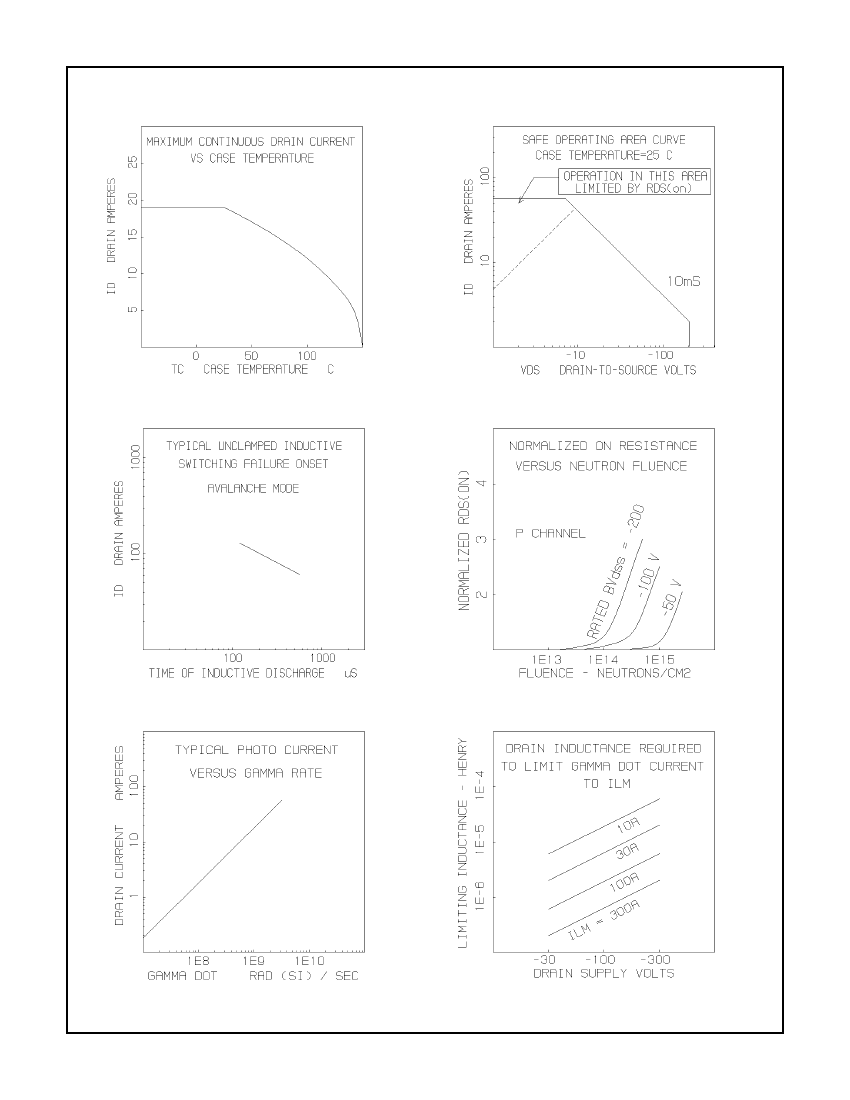

Preview

Download Datasheet

View All

S E M I C O N D U C T O R

REGISTRATION PENDING

Currently Available as FRE9260 (D, R, H)

November 1994

2N7331D, 2N7331R

2N7331H

Radiation Hardened

N-Channel Power MOSFETs

Package

TO-258

Features

• 19A, -200V, RDS(on) = 0.210Ω

• Second Generation Rad Hard MOSFET Results From New Design Concepts

• Gamma

Meets Pre-Rad Speciﬁcations to 100KRAD(SI)

Deﬁned End Point Specs at 300KRAD(Si) and 1000KRAD(Si)

Performance Permits Limited Use to 3000KRAD(Si)

Survives 3E9RAD(Si)/sec at 80% BVDSS Typically

Survives 2E12 Typically If Current Limited to IDM

18.0nA Per-RAD(Si)/sec Typically

Pre-RAD Speciﬁcations for 1E13 Neutrons/cm

Usable to 1E14 Neutrons/cm

Typically Survives 1E5ions/cm

Having an

LET

≤

35MeV/mg/cm

and a Range

≥

30µm at 80% BVDSS

• Gamma Dot

• Photo Current

• Neutron

• Single Event

Description

The Harris Semiconductor Sector has designed a series of SECOND GENERA-

TION hardened power MOSFETs of both N and P channel enhancement types

with ratings from 100V to 500V, 1A to 60A, and on resistance as low as 25mΩ.

Total dose hardness is offered at 100KRAD(Si) and 1000KRAD(Si) with neutron

hardness ranging from 1E13n/cm

for 500V product to 1E14n/cm

for 100V prod-

uct. Dose rate hardness (GAMMA DOT) exists for rates to 1E9 without current lim-

iting and 2E12 with current limiting. Heavy ion survival from signal event drain

burn-out exists for linear energy transfer (LET) of 35 at 80% of rated voltage.

This MOSFET is an enhancement-mode silicon-gate power ﬁeld effect transistor of

the vertical DMOS (VDMOS) structure. It is specially designed and processed to

exhibit minimal characteristic changes to total dose (GAMMA) and neutron (n

)

exposures. Design and processing efforts are also directed to enhance survival to

heavy ion (SEE) and/or dose rate (GAMMA DOT) exposure.

This part may be supplied as a die or in various packages other than shown

above. Reliability screening is available as either non TX (commercial), TX equiv-

alent of MIL-S-19500, TXV equivalent of MIL-S-19500, or space equivalent of

MIL-S-19500. Contact the Harris Semiconductor High-Reliability Marketing

group for any desired deviations from the data sheet.

Symbol

Absolute Maximum Ratings

(TC = +25

C) Unless Otherwise Speciﬁed

2N7331D, R, H

-200

±20

150

1.20

-55 to +150

300

UNITS

Drain-Source Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VDS

Drain-Gate Voltage (RGS = 20kΩ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDGR

Continuous Drain Current

TC = +25

C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ID

TC = +100

C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ID

Pulsed Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IDM

Gate-Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGS

Maximum Power Dissipation

TC = +25

C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PT

TC = +100

C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PT

Derated Above +25

C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inductive Current, Clamped, L = 100µH, (See Test Figure). . . . . . . . . . . . . . . . . . . . . . . . . . ILM

Continuous Source Current (Body Diode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IS

Pulsed Source Current (Body Diode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ISM

Operating And Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TJC, TSTG

Lead Temperature (During Soldering)

Distance > 0.063 in. (1.6mm) From Case, 10s Max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL

CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper I.C. Handling Procedures.

Harris Corporation 1994

File Number

3269.1
