A7D22RA29CM231M399: DescriptionCard Edge Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.125 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size119KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

A7D22RA29CM231M399 Overview

Card Edge Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.125 inch Pitch, Solder Terminal, Black Insulator, Receptacle

A7D22RA29CM231M399 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.368 inch
body length	3.035 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	A7D
Plug contact pitch	0.125 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	3.17 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

Cardedge

Modified Bellows

.125" CENTERLINE

.250" ROW-TO-ROW

.150" ROW-TO-ROW

.200" ROW-TO-ROW

RIGHT ANGLE TAILS

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

R

ESISTANCE

:

5000 megohms minimum.

I

NSERTION

/W

ITHDRAWAL

F

ORCE

(D

AUGHTER

C

ARD

):

8 oz./2oz. average contact pair using .0620 steel

blade.

I

NSULATOR

B

ODY

:

Glass filled thermoplastic,

UL rating 94V-O. High temp. plastic option is

available; add suffix M399 to catalog number.

C

OLOR

:

Black

C

ONTACTS

:

High strength copper alloy.

C

ONTACT

P

LATING

:

50 microinches nickel

underplate with 30 microinches gold in the mating

area, tin/lead on tails, 100 microinches minimum

.125 REF

Section X–X

E

LECTRICAL

P

ROPERTIES

O

PERATION

V

OLTAGE

:

1000 VDC (sea level)

C

URRENT

R

ATING

:

3 Amperes

I

NITIAL

C

ONTACT

R

ESISTANCE

:

10 milliohms

E

NVIRONMENTAL

P

ROPERTIES

O

PERATING

T

EMPERATURE

:

-55˚C to +125˚C

T

EMPERATURE

C

YCLING

:

MIL-STD-202 method 107

V

IBRATION

:

MIL-STD-202 method 204

A

CCESSORIES

P

OLARIZATION

K

EY

:

Cat. # 98014-01, see page 346

D

AUGHTER

C

ARD

See page 347 for layout

.125

SECTION X-X

ROTATED 90º

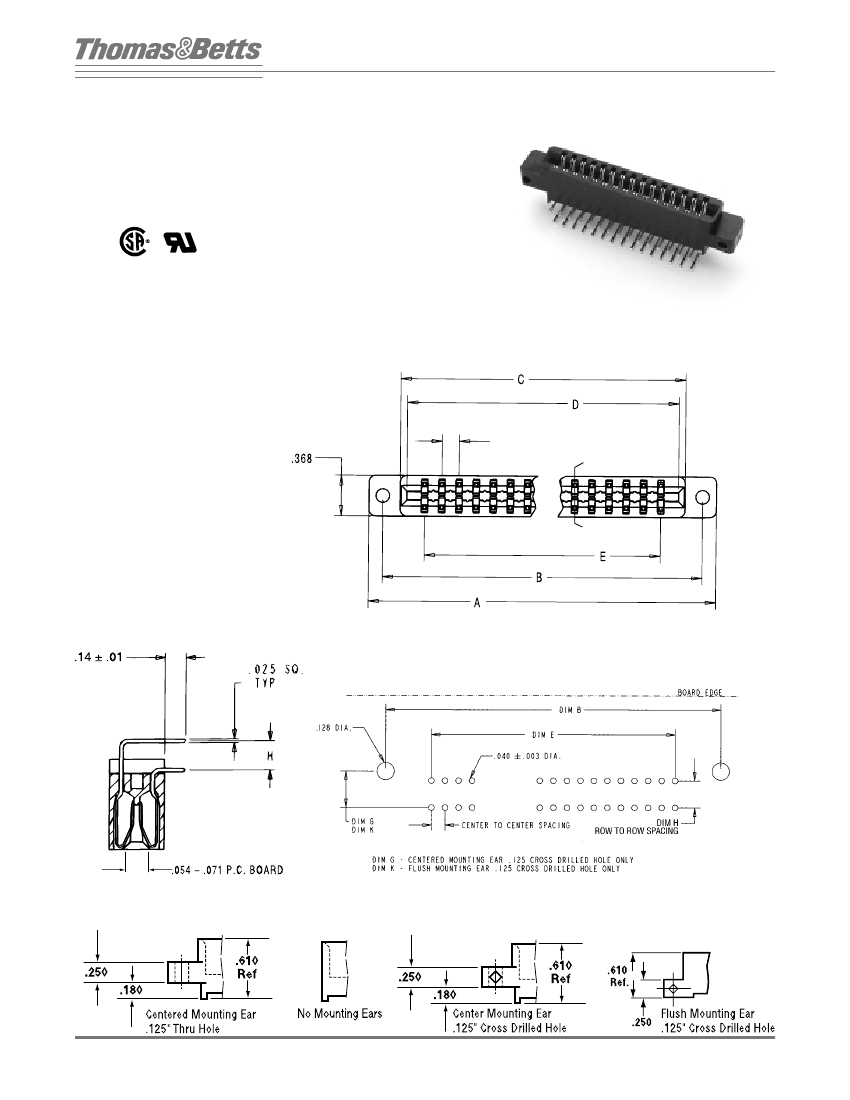

Mounting Styles

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in inches.

340
