HERMETIC POWER SCHOTTKY RECTIFIER
Low Forward Voltage Drop
Add Suffix "S" to Part Number for S-100 Screening.
Applications:
Switching Power Supply
Converters
Free-Wheeling Diodes
Polarity Protection Diode
Features:
Ultra low Reverse Leakage Current
Soft Reverse Recovery at Low and High Temperature
High Surge Capacity
Guard Ring for Enhanced Durability and Long Term Reliability
DESCRIPTION:
A 60-VOLT, 30 AMP DUAL POWER SCHOTTKY RECTIFIER IN A HERMETIC SHD-4/4A/4B
PACKAGE.
MAXIMUM RATINGS
RATING
PEAK INVERSE VOLTAGE
MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T
C
=100 C)
MAXIMUM NONREPETITIVE FORWARD SURGE CURRENT
(t=8.3ms, Sine)
MAXIMUM THERMAL RESISTANCE (per leg)
MAXIMUM OPERATING TEMPERATURE RANGE
MAXIMUM STORAGE TEMPERATURE RANGE
O
ALL RATINGS ARE @ T
C
= 25
C
UNLESS OTHERWISE SPECIFIED.
SYMBOL
PIV
I
O
I
FSM
R
JC
Top/Tstg
Top/Tstg
MAX.
60
30
280
1.7
-65 to
+ 175
-65 to
+ 175
UNITS
Volts
Amps
Amps
C/W
C
C
ELECTRICAL CHARACTERISTICS
CHARACTERISTIC
MAXIMUM FORWARD VOLTAGE DROP, Pulsed (I
f
= 30 Amps)
T
J
= 25
C
T
J
= 125
C
MAXIMUM REVERSE CURRENT (I
r
@ 60V PIV)
T
J
= 25
C
T
J
= 125
C
MAXIMUM JUNCTION CAPACITANCE
(V
r
=5V)
I
r
C
T
0.4
30
720
mA
pF
V
f
0.74
0.67
Volts
SYMBOL
MAX.
UNITS
2006 Sensitron Semiconductor 221 West Industry Court Deer Park, NY 11729-4681
PHONE (631) 586-7600 FAX (631) 242-9798 www.sensitron.com sales@sensitron.com
SHD117223(P/N)
SHD117223(P/N)A
SHD117223(P/N)B
SENSITRON
TECHNICAL DATA
DATASHEET 4763, REV. B

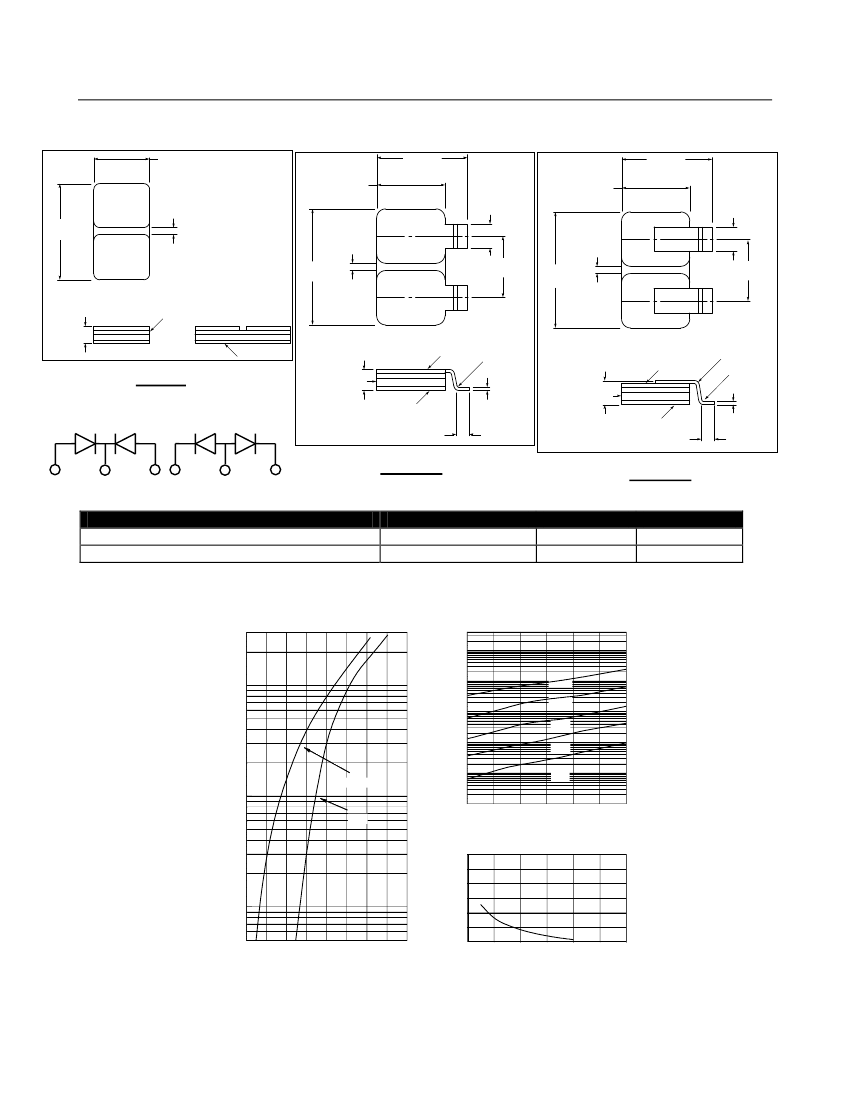

Mechanical Dimensions: In Inches / mm
.290±.010
(7.37±.254)
.290±.010
(7.37±.254)
.440±.020
(11.2±.508)
.290±.010
(7.37±.254)
.440±.020
(11.2±.508)
2
.350±.010
(8.89±.254)
3
.020±.010
(.508±.254)
.065±.010
(1.65±.254)
.090±.010
(2.29±.254)
2
.020±.010
(.508±.254)
.350±.010
(8.89±.254)
.185±.010
(4.70±.254)
.020±.010
(.508±.254)
.350±.010
(8.89±.254)
2
.185±.010
(4.70±.254)
3
.110 (2.80) Max
Alumina Ring
3
Terminal 1
.110 (2.79) Max
Alumina Ring
Moly Lid
.020±.005 R
(.508±.127 )
Copper Terminals
.130 (3.30) Max
Moly Lid
.020±.005
(.508±.127 )
SHD-4
COMMON
CATHODE
COMMON
ANODE
Alumina Ring
Moly Base
Terminal 1
.060±.010
(1.52±.254)
.020±.002
(.508±.051)
Moly Base
Terminal 1
.060±.010
(1.52±.254)
.015±.002
(.381±.051)
SHD-4A
2
1
3 2
1
3
PINOUT TABLE
DEVICE TYPE
DUAL RECTIFIER, COMMON CATHODE (P)
DUAL RECTIFIER, COMMON ANODE (N)
PIN 1
COMMON CATHODE
COMMON ANODE
PIN 2
ANODE 1
CATHODE 1
SHD-4B
PIN 3
ANODE 2
CATHODE 2
Typical Forward Characteristics
Typical Reverse Characteristics
R
(mA)
10
2
Instantaneous Reverse Current - I
10
1
10
1
125 °C
100 °C
10
0
(A)
75 °C
10
-1
Instantaneous Forward Current - I
F
50 °C
125 °C
10
0
10
-2
25 °C
10
-3
25 °C
0
10
20
30
40
Reverse Voltage - V
R
(V)
50
60
Typical Junction Capacitance
Junction Capacitance - C
T
(pF)
800
700
600
500
400
300
200
0
10
20
30
40
50
Reverse Voltage - V
R
(V)
60
10
-1
0.0
0.2
0.4
0.6
Forw ard Voltage Drop - V
F
(V)
0.8
2006 Sensitron Semiconductor 221 West Industry Court Deer Park, NY 11729-4681
PHONE (631) 586-7600 FAX (631) 242-9798 www.sensitron.com sales@sensitron.com
SHD117223(P/N)
SHD117223(P/N)A
SHD117223(P/N)B
SENSITRON
TECHNICAL DATA
DATASHEET 4763, REV. B
