2N4275 datasheet, PDF - EEWORLD Datasheet

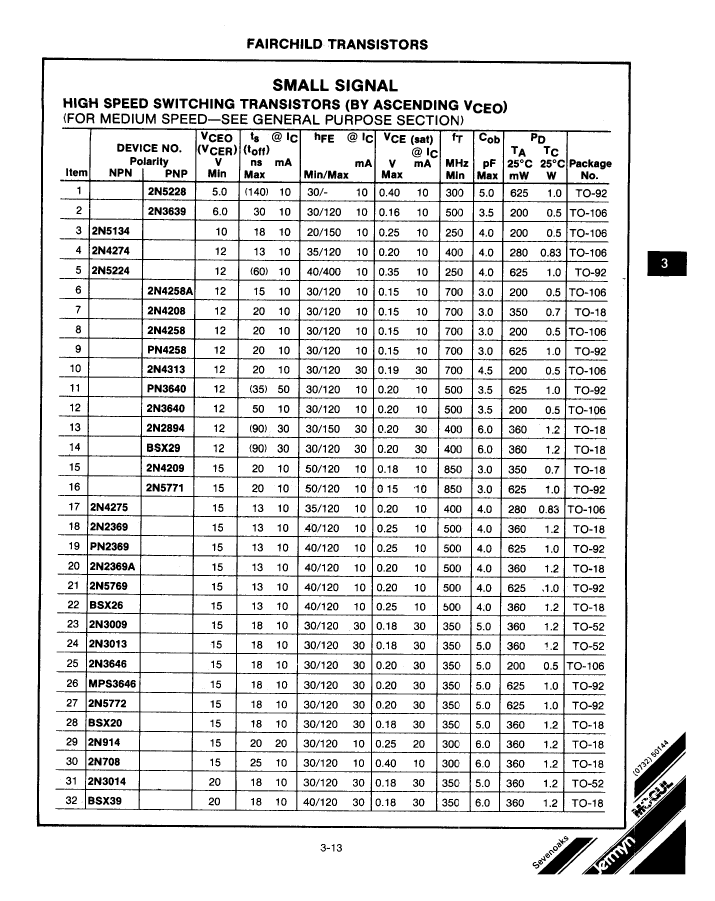

2N4275: DescriptionSmall Signal Bipolar Transistor, 1-Element, NPN, Silicon, TO-106, TO-106, 4 PIN; CategoryDiscrete semiconductor The transistor; File Size57KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

2N4275 Overview

Small Signal Bipolar Transistor, 1-Element, NPN, Silicon, TO-106, TO-106, 4 PIN

Parameter Name	Attribute value
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-PBCY-W4
Contacts	3
Reach Compliance Code	compli
Configuration	SINGLE
Minimum DC current gain (hFE)	35
JEDEC-95 code	TO-106
JESD-30 code	O-PBCY-W4
Number of components	1
Number of terminals	4
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	400 MHz
Maximum off time (toff)	13 ns
Base Number Matches	1

	2N4275	2N4258A	2N5134	2N4209	2N3009	MPS3646	2N3639	2N914
Description	Small Signal Bipolar Transistor, 1-Element, NPN, Silicon, TO-106, TO-106, 4 PIN	Transistor,	Transistor,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP, TO-18, TO-18, 3 PIN	Transistor,	Transistor,	Transistor,	Small Signal Bipolar Transistor, 0.15A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-18, METAL PACKAGE-3
Reach Compliance Code	compli	compli	compli	compli	compliant	unknown	compli	unknow
Configuration	SINGLE	Single	Single	SINGLE	Single	Single	Single	SINGLE
Minimum DC current gain (hFE)	35	30	150	50	30	30	30	30
Polarity/channel type	NPN	PNP	NPN	PNP	NPN	NPN	PNP	NPN
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Nominal transition frequency (fT)	400 MHz	700 MHz	250 MHz	850 MHz	350 MHz	350 MHz	500 MHz	300 MHz
Base Number Matches	1	1	1	1	1	-	-	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maximum collector current (IC)	-	0.05 A	0.1 A	0.05 A	0.2 A	0.3 A	0.08 A	0.15 A
JESD-609 code	-	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	-	125 °C	125 °C	200 °C	175 °C	150 °C	125 °C	200 °C
Maximum power dissipation(Abs)	-	0.2 W	0.2 W	0.3 W	0.36 W	0.625 W	0.2 W	1.2 W
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
