DATA SHEET
SILICON POWER TRANSISTOR
2SC3570
NPN
SILICON TRIPLE DIFFUSED TRANSISTOR
FOR HIGH-VOLTAGE
HIGH-SPEED SWITCHING
The 2SC3570 is a mold power transistor developed for high-
voltage high-speed switching, and is ideal for use in drivers such as
switching regulators, DC/DC converters, and high-frequency power
amplifiers.

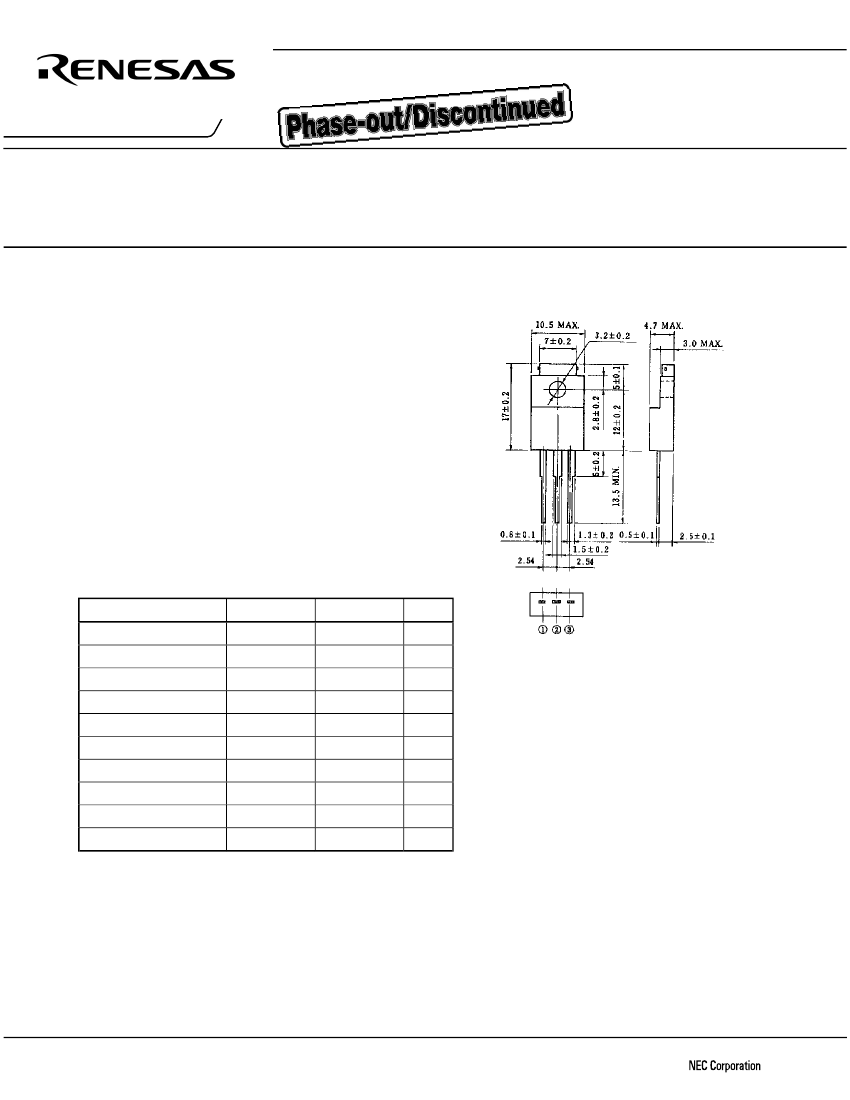

PACKAGE DRAWING (UNIT: mm)
FEATURES
• Mold package that does not require an insulating board or
insulation bushing
• Low collector saturation voltage:
V
CE(sat)
= 1.0 V MAX. (@ 2 A)
• Fast switching speed:
t
f
≤
0.7
µ
s MAX. (@ 2 A)
• Wide base reverse-bias SOA:
V
CEX(SUS)
= 450 V MIN. (@ 2 A)
ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
°
Parameter
Collector to base voltage
Collector to emitter voltage
Emitter to base voltage
Collector current (DC)
Collector current (pulse)
Base current (DC)
Total power dissipation
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C(DC)
I
C(pulse)
*
I
B(DC)
P
T
(Tc = 25°C)
P
T
(Ta = 25°C)
T
j
T
stg
Ratings
500
400
8.0
5.0
10
2.5
25
2.0
150
−55
to +150
Unit
V
V
V
A
A
A
W
W
°C
°C
Electrode Connection
1. Base
2. Collector
3. Emitter
* PW
≤
300
µ
s, duty cycle
≤
10%
