CDP1883CEX datasheet, PDF - EEWORLD Datasheet

CDP1883CEX: DescriptionD Latch, 1800 Series, 1-Func, High Level Triggered, 7-Bit, True Output, CMOS, PDIP20; Categorylogic logic; File Size152KB，5 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

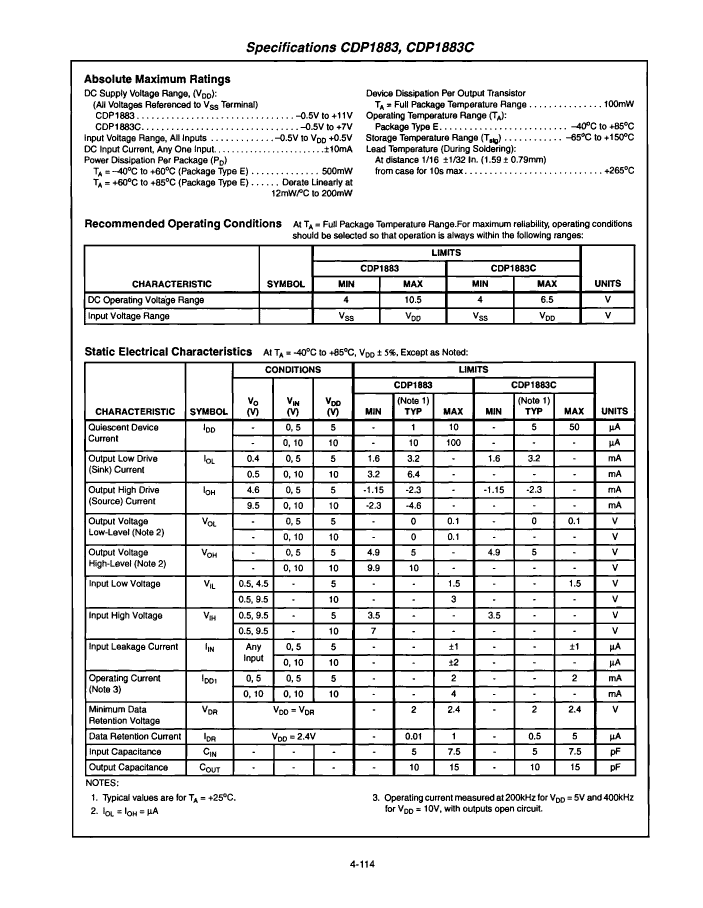

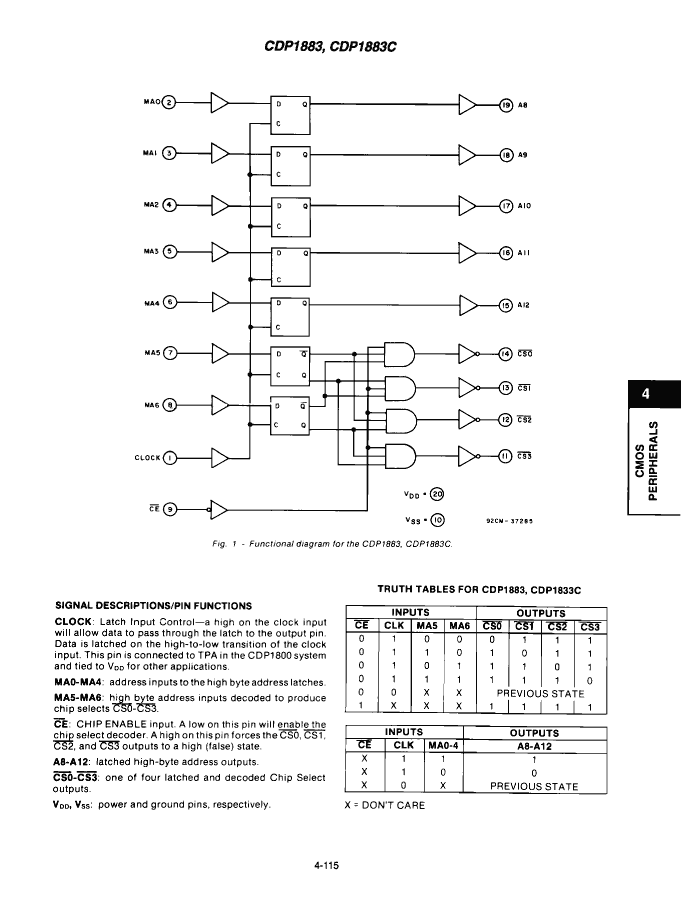

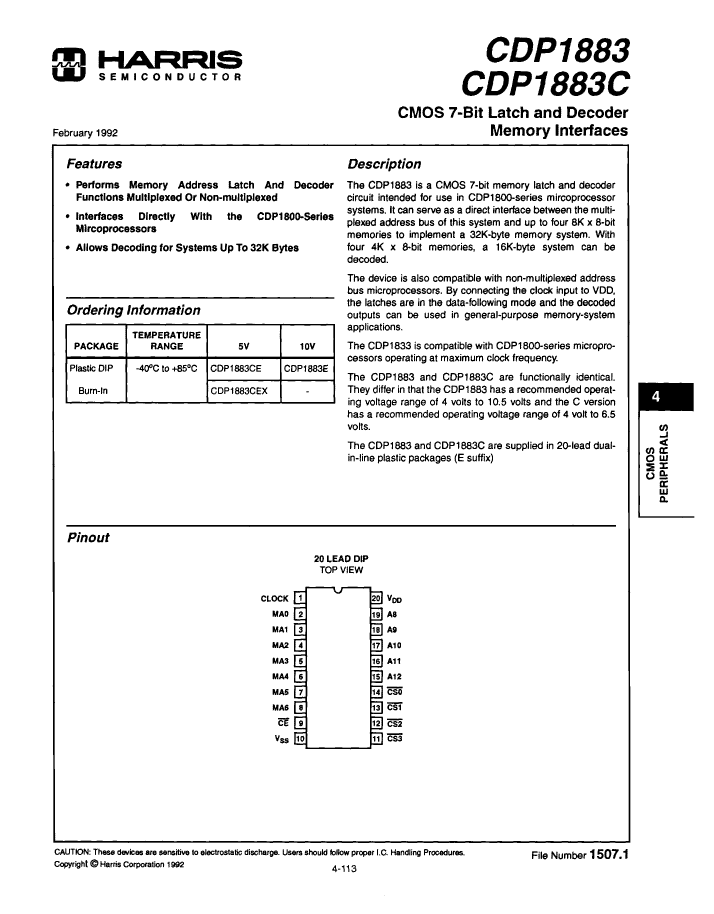

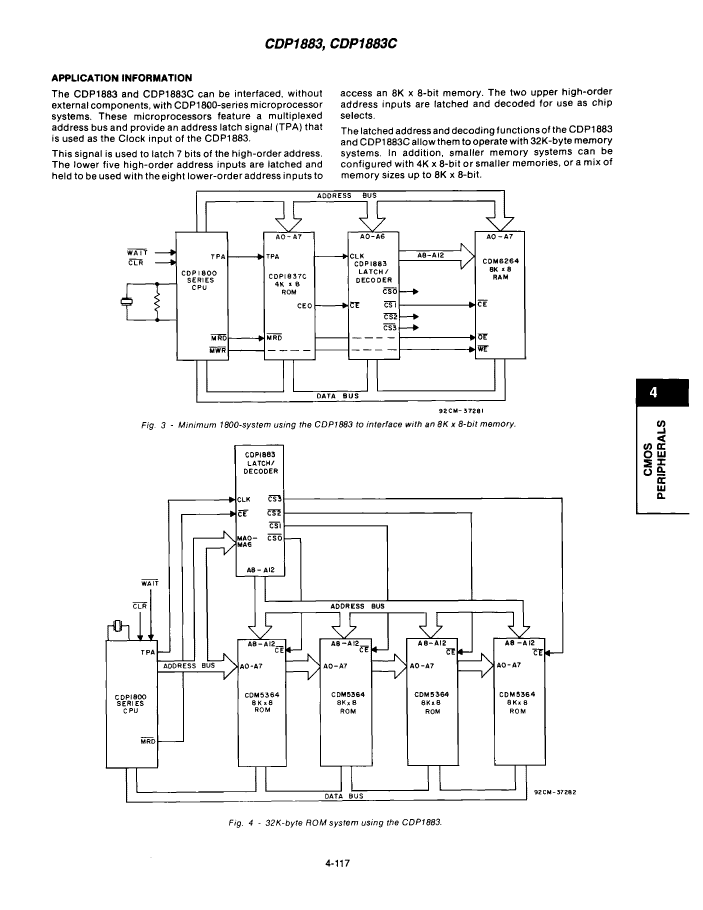

CDP1883CEX Overview

D Latch, 1800 Series, 1-Func, High Level Triggered, 7-Bit, True Output, CMOS, PDIP20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
series	1800
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Logic integrated circuit type	D LATCH
Number of digits	7
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V

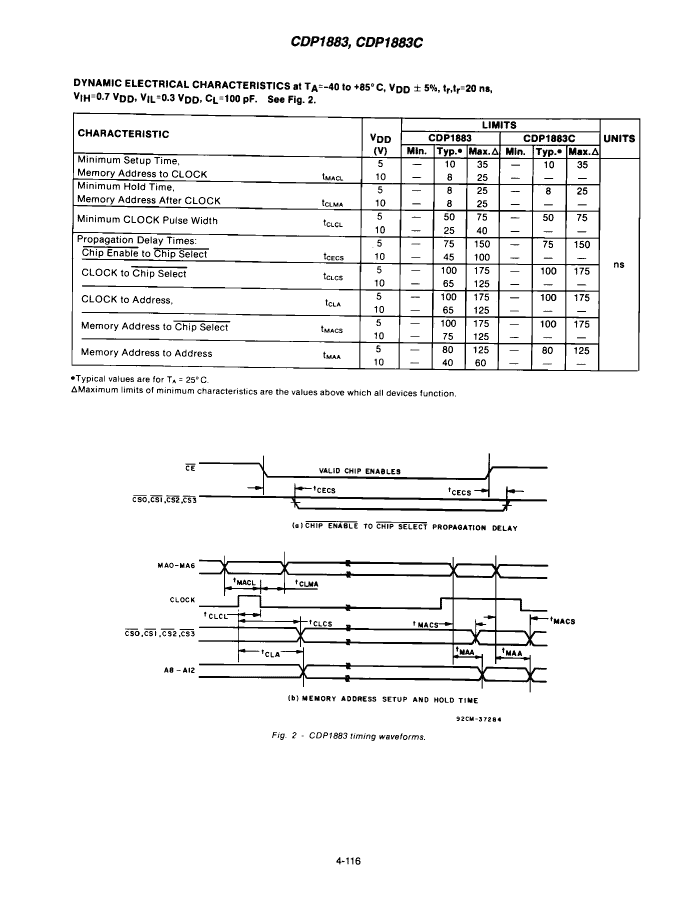

propagation delay (tpd)	175 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	HIGH LEVEL

	CDP1883CEX
Description	D Latch, 1800 Series, 1-Func, High Level Triggered, 7-Bit, True Output, CMOS, PDIP20
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
series	1800
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Logic integrated circuit type	D LATCH
Number of digits	7
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	175 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	HIGH LEVEL
