NRLMW822M16V22X30 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRLMW822M16V22X30

NRLMW822M16V22X30: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 8200uF, Through Hole Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size307KB，5 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NRLMW822M16V22X30 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 8200uF, Through Hole Mount, CAN, ROHS COMPLIANT

NRLMW822M16V22X30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2059286207
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan, Mainland China, Taiwan
ECCN code	EAR99
YTEOL	6.95
capacitance	8200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm
dielectric materials	ALUMINUM (WET)
ESR	71 mΩ
JESD-609 code	e3
leakage current	1.0866 mA
length	30 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	No
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	2400 mA
surface mount	NO
Delta tangent	0.45
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

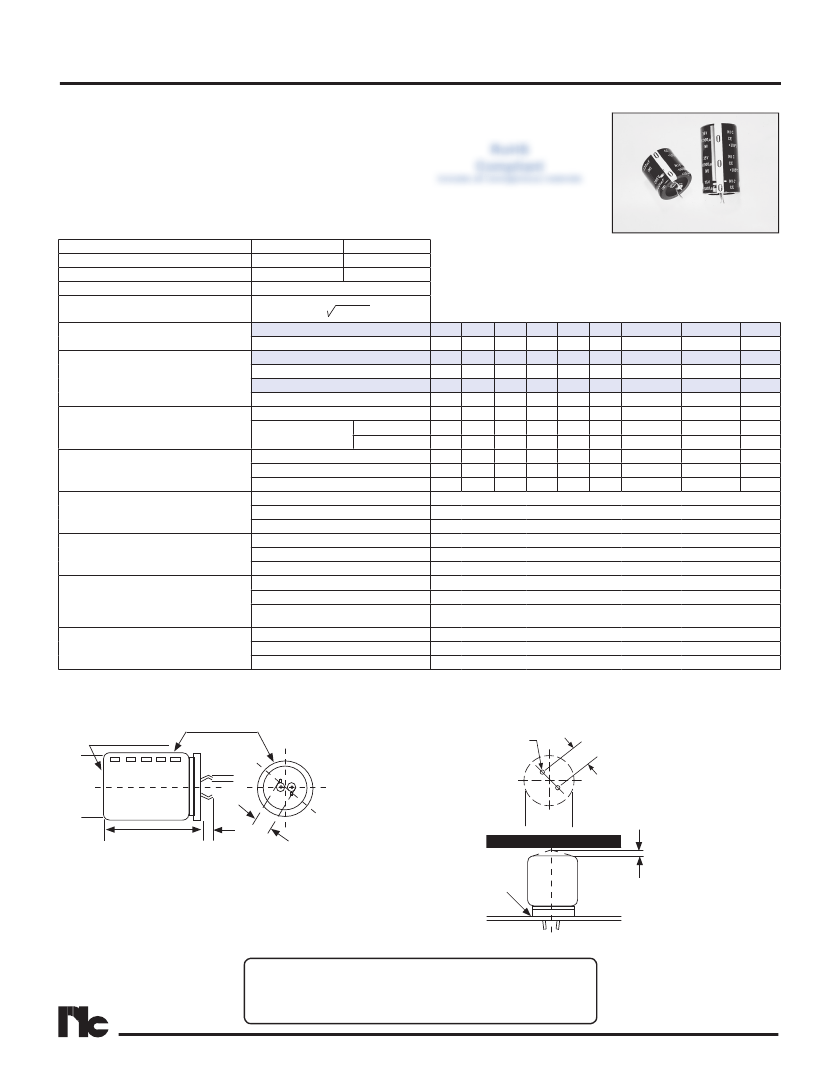

Large Can Aluminum Electrolytic Capacitors

FEATURES

• LONG LIFE (105

C, 2000 HOURS)

• LOW PROFILE AND HIGH DENSITY DESIGN OPTIONS

RoHS

• EXPANDED CV VALUE RANGE

Compliant

• HIGH RIPPLE CURRENT

includes all homogeneous materials

• CAN-TOP SAFETY VENT

• DESIGNED AS INPUT FILTER OF SMPS

*See Part Number System for Details

• STANDARD 10mm (.400") SNAP-IN SPACING

SPECIFICATIONS

Operating Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Max. Leakage Current (µA)

After 5 minutes (20°C)

Max. Tan

at 120Hz/20°C

Surge Voltage

-40 ~ +105°C

-25 ~ +105°C

10 ~ 250Vdc

400 ~ 450Vdc

180 ~ 68,000µF

56 ~ 470µF

±20% (M) at 120Hz, +20°C

3 x C(µF)V

W.V. (Vdc)

Tan

max.

W.V. (Vdc)

S.V. (Vdc)

W.V. (Vdc)

S.V. (Vdc)

Frequency (Hz)

16 ~ 100Vdc

Multiplier at 105°C

160 ~ 450Vdc

Temperature (°C)

Capacitance Change

Impedance Ratio

Capacitance Change

Tan

Leakage Current

Capacitance Change

Tan

Leakage Current

Capacitance Change

Tan

Leakage Current

Capacitance Change

Tan

Leakage Current

NRLMW Series

Ripple Current

Correction Factors

Low Temperature

Stability (10 to 250Vdc)

Load Life Test

2,000 hours at +105°C

Shelf Life Test

1,000 hours at +105°C

(no load)

Surge Voltage Test

Per JIS-C-5141 (table #6, #4)

Surge voltage applied: 30 seconds

"On" and 5.5 minutes no voltage "Off"

Soldering Effect

Refer to

MIL-STD-202F Method 210A

100 ~ 400

0.55 0.45 0.35 0.30 0.25 0.20

0.17

0.15

100

125

180 200 250 400 450

220 250 300 450 500

100 120 500 1K 10K ~ 50K

0.93 0.95 0.99 1.0 1.05 1.08

1.15

0.75 0.80 0.95 1.0 1.20 1.25

1.40

-25 -40

-5% -10 -30%

1.5

Within ±20% of initial measured value

Less than 200% of specified maximum value

Less than specified maximum value

Within ±20% of initial measured value

Less than 200% of specified maximum value

Less than specified maximum value

Within ±20% of initial measured value

Less than 200% of specified maximum value

Less than specified maximum value

Within ±10% of initial measured value

Less than specified maximum value

450

0.20

160

200

Sleeve Color: Dark

Blue

Can Top Safety Vent

D+1

Max.

Sleeve and Minus

Polarity Marking

0.8

(-)

Recommended PC Board Mounting Holes:

∅=

0.1

(+)

D∅

0.5

Notice for Mounting

The space from the top of the can shall be more than (3mm)

from chassis or other construction materials so that safety

vent has room to expand in case of emergency.

(4.0mm Leads Available As Option)

6.3

Chassis

MAXIMUM EXPANSION

FOR SAFETY VENT

Approx.

3.0mm

PC Board

Please review the notes on correct use, safety and precautions found at

https://www.niccomp.com/resource/files/aluminum/AlumApplInfoCautions.pdf

If in doubt or uncertainty, please review your specific application - process details with NIC’s

technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
