2SC4177-L5: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), NPN; CategoryDiscrete semiconductor The transistor; File Size106KB，1 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SC4177-L5 Overview

Small Signal Bipolar Transistor, 0.1A I(C), NPN

2SC4177-L5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Maximum collector current (IC)	0.1 A
Configuration	Single
Minimum DC current gain (hFE)	135
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.15 W
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

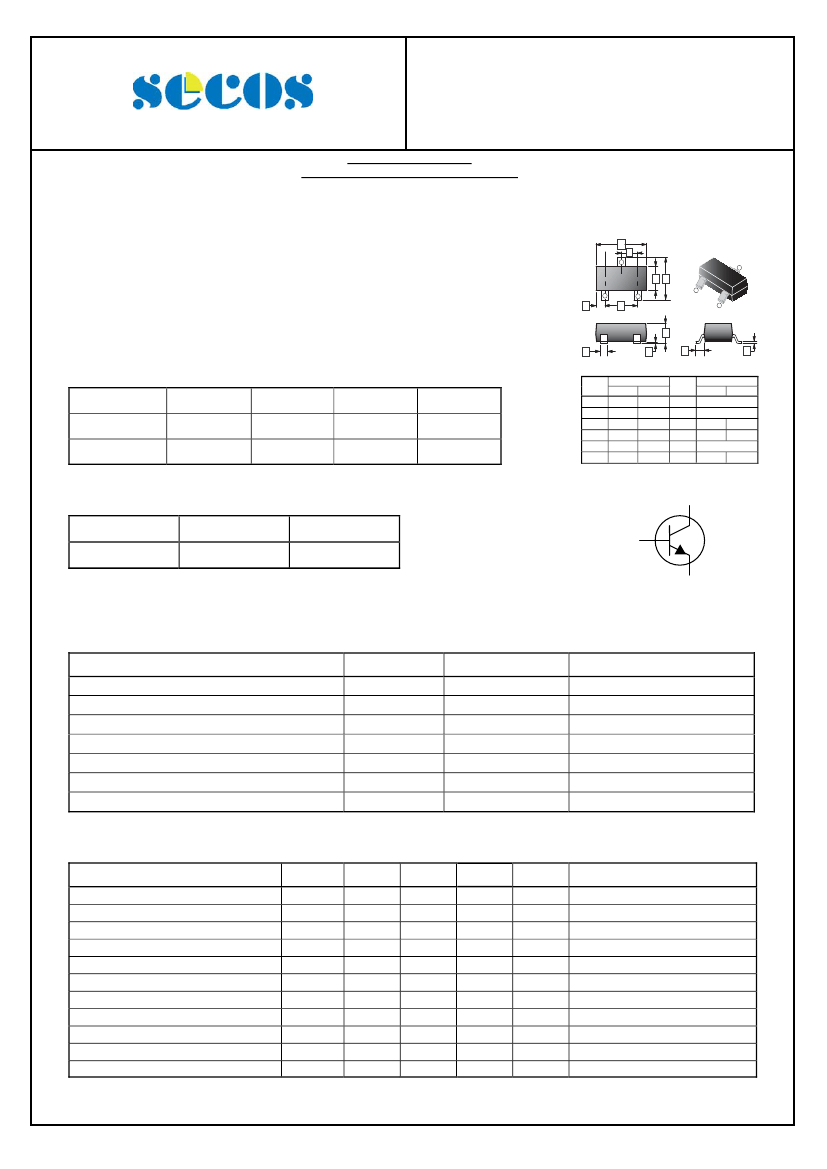

2SC4177

Elektronische Bauelemente

0.1A , 60V

NPN Plastic-Encapsulate Transistor

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES



SOT-323

A

3

High DC Current Gain.

High Voltage.

Complementary to 2SA1611

1

L

Top View

2

C B

1

2

APPLICATIONS



K

E

D

General Purpose Amplification

F

G

H

J

CLASSIFICATION OF h

FE

Product-Rank

Range

Marking

2SC4177-L4

90~180

L4

2SC4177-L5

135~270

L5

2SC4177-L6

200~400

L6

2SC4177-L7

300~600

L7

REF.

A

B

C

D

E

F

Millimeter

Min.

Max.

1.80

2.20

1.80

2.45

1.15

1.35

0.80

1.10

1.20

1.40

0.20

0.40

REF.

G

H

J

K

L

Millimeter

Min.

Max.

0.100 REF.

0.525 REF.

0.08

0.25

-

0.650 TYP.

Collector

PACKAGE INFORMATION

Package

SOT-323

MPQ

3K

LeaderSize

7’ inch



Base





Emitter

ABSOLUTE MAXIMUM RATINGS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current

Collector Power Dissipation

Thermal Resistance From Junction To Ambient

Junction & Storage temperature

Symbol

V

CBO

V

CEO

V

EBO

I

C

P

C

R

θJA

T

J

, T

STG

Rating

60

50

5

100

150

833

150, -55~150

Unit

V

mA

mW

°C

/ W

°C

ELECTRICAL CHARACTERISTICS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector-Base Breakdown Voltage

Collector-Emitter Breakdown Voltage

Emitter-Base Breakdown Voltage

Collector Cut-off Current

Emitter Cut-off Current

DC Current Gain

1

Collector-Base Saturation Voltage

Base-emitter Saturation Voltage

Base-emitter Voltage

Transition Frequency

Collector Output Capacitance

Symbol

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

I

CBO

I

EBO

h

FE

V

CE(sat)

V

BE(sat)

V

BE

f

T

C

ob

Min.

60

50

5

-

90

-

0.55

-

Typ.

-

250

3

Max.

-

100

600

0.3

1

0.65

-

Unit

V

nA

V

MHz

pF

Test Condition

I

C

=100μA, I

E

=0

I

C

=1mA, I

B

=0

I

E

=100μA, I

C

=0

V

CB

=60V, I

E

=0

V

EB

=5V, I

C

=0

V

CE

=6V, I

C

=1mA

I

C

=100mA, I

B

=10mA

I

C

=100mA, I

B

=10mA

V

CE

=6V, I

C

=1mA

V

CE

=6V, I

C

=10mA

V

CB

=6V, I

E

=0, f=1MHz

Note:

1. Pulse test: pulse width≦350μs, duty cycle≦2.0%

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

10-Mar-2011 Rev. A

Page 1 of 1
