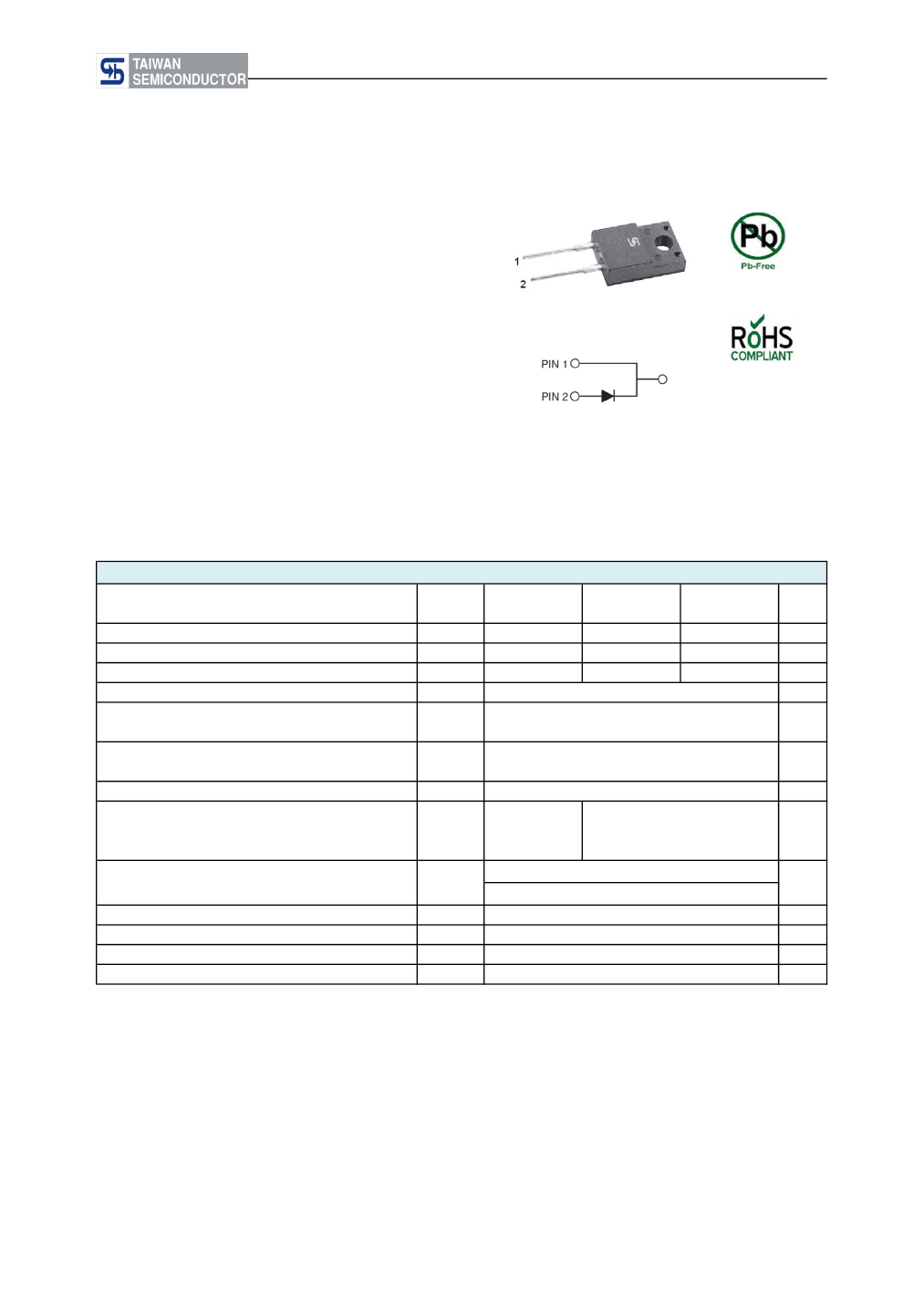

MBRF5100 thru MBRF5200
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Isolated Schottky Barrier Rectifiers
MECHANICAL DATA
Case:
ITO-220AC
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.6 g (approximately)
ITO-220AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak repetitive forward current
(Rated VR, square wave, 20KHz)
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Peak repetitive reverse surge current (Note 1)
Maximum instantaneous forward voltage (Note 2)
I
F
= 5A, T
J
=25℃
I
F
= 5A, T
J
=125℃
Maximum reverse current @ Rated V
R
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: tp = 2.0
μs,
1.0KHz
Note 2: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
I
RRM
V
F
0.90
0.80
I
R
dV/dt
R
θJC
T
J
T
STG
0.1
5
10000
3
- 55 to +150
- 55 to +175
MBRF
5100
100
70
100
MBRF
5150
150
105
150
5
10
120
0.5
1.02
0.92
mA
V/μs
O
MBRF
5200
200
140
200
UNIT
V
V
V
A
A
A
A
V
C/W
O
O
C
C
Document Number: DS_D1309002
Version: F13
MBRF5100 thru MBRF5200
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
MBRF5xxx
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
PACKING CODE
C0
GREEN COMPOUND
CODE
Suffix "G"
PACKAGE
ITO-220AC
PACKING
50 / Tube
Note 1: "xxx" defines voltage from 100V (MBRF5100) to 200V (MBRF5200)
EXAMPLE
PREFERRED P/N
MBRF5100 C0
MBRF5100 C0G
MBRF5100HC0
PART NO.
MBRF5100
MBRF5100
MBRF5100
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

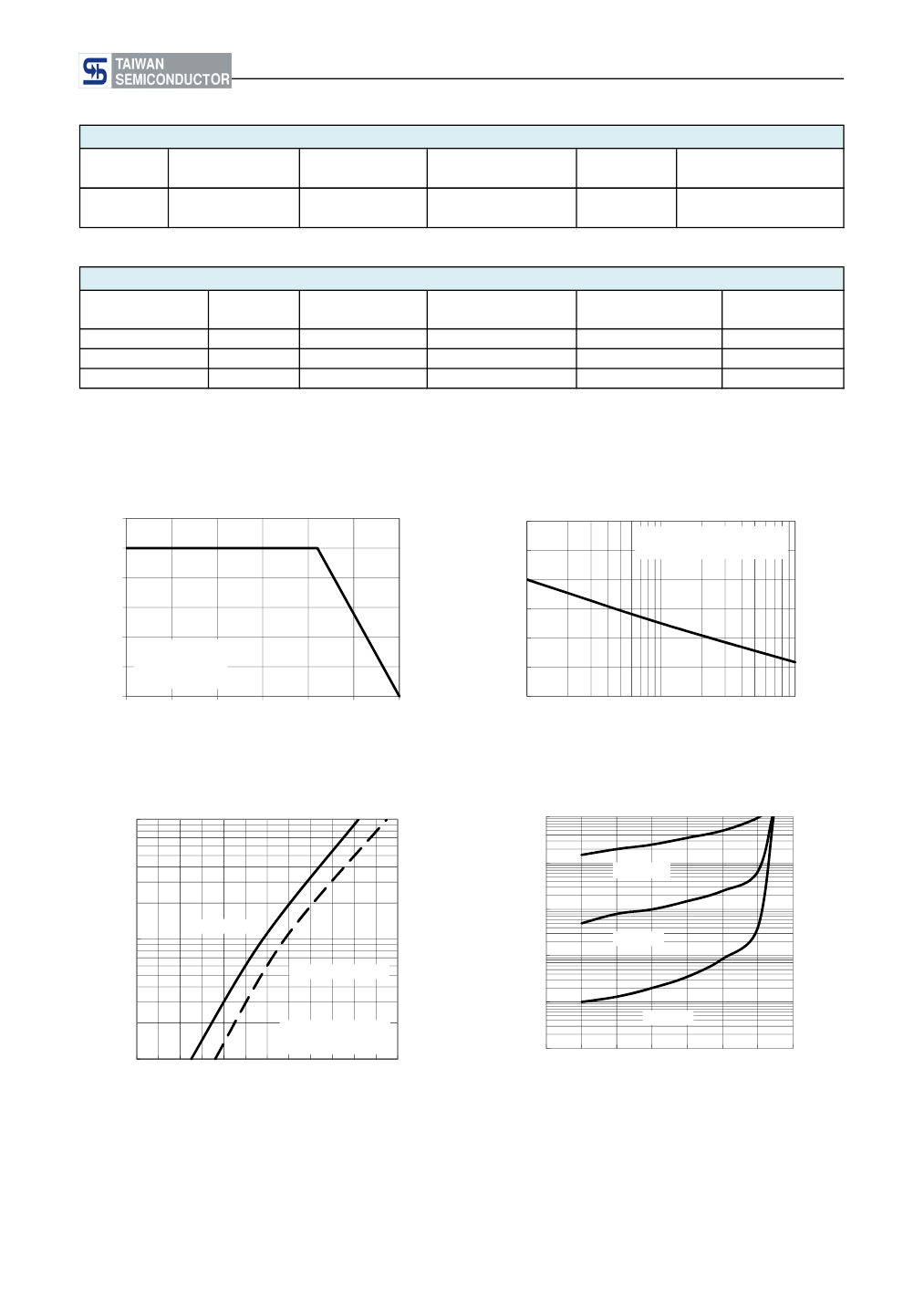

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT (A)
6
180
150
120
90
60
30
0
1
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms Single Half Sine Wave
JEDEC Method
AVERAGE FORWARD CURRENT
(A)
5
4
3
2
1
0
0
25
50
75
100
125
150
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
10
NUMBER OF CYCLES AT 60 Hz
100
CASE TEMPERATURE (
o
C)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
10
10
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT (A)
INSTANTANEOUS REVERSE CURRENT
(mA)
1
TJ=125℃
0.1
TJ=75℃
0.01
1
MBRF5100
MBRF5150 - 5200
0.001
TJ=25℃
PULSE WIDTH=300μs
1% DUTY CYCLE
0.1
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
FORWARD VOLTAGE (V)
1
1.1 1.2
0.0001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE
(%)
Document Number: DS_D1309002
Version: F13
MBRF5100 thru MBRF5200
Taiwan Semiconductor
CREAT BY ART
FIG. 5 TYPICAL JUNCTION CAPACITANCE
10000
TRANSIENT THERMAL IMPEDANCE
(℃/W)
JUNCTION CAPACITANCE (pF)
A
f=1.0MHz
Vsig=50mVp-p
1000
100
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
10
100
1
10
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
10
100
T-PULSE DURATION(s)

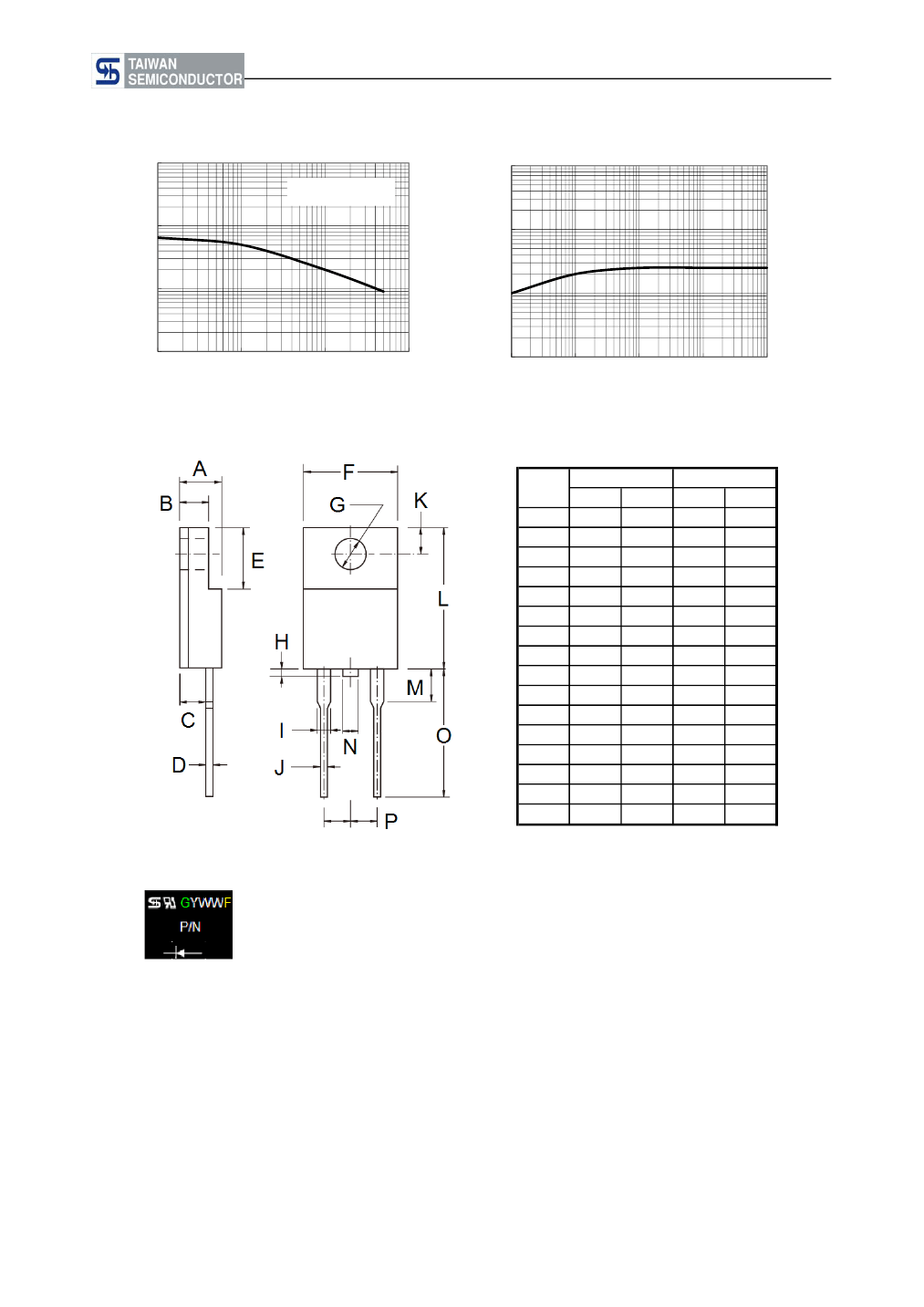

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.00
0.95
0.50
2.40
14.80
-
-
12.60
4.95
Max
4.70
3.10
2.90
0.76
6.90
10.30
3.40
1.60
1.45
0.90
3.20
15.50
4.10
1.80
13.80
5.20
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.000
0.037
0.020
0.094
0.583
-
-
0.496
0.195
Max
0.185
0.122
0.114
0.030
0.272
0.406
0.134
0.063
0.057
0.035
0.126
0.610
0.161
0.071
0.543
0.205
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1309002
Version: F13
MBRF5100 thru MBRF5200
Taiwan Semiconductor
CREAT BY ART
