NJM2800
Low Dropout Voltage Regulator with Reset
GENERAL DISCRIPTION
The NJM2800 is a low dropout voltage regulator with
reset function.
It provides up to 150mA of logic supply, and the reset
function monitors input voltage of the regulator with 1%
accuracy.
It is suitable for local power supply and reset for small
micro controller and other logic chips.
PACKAGE OUTLINE
NJM2800F
NJM2800U/U1
FEATURES
Output Voltage Accuracy Vo
= ±1.0%
Reset Voltage Accuracy V
RT
= ±1.0%
Adjust reset delay time with external capacitor.
Ripple Rejection
60dB typ. (f=1kHz)
Input Voltage Monitor type
Open Collector Output
Internal Short Circuit Current Limit
Internal Thermal Overload Protection
Bipolar Technology
Package Outline
SOT89-5 (NJM2800U/U1), SOT-23-5(NJU2800F)
PIN CONFIGURATION
5
1.V
IN
2.GND
3.V
OR
4.C
d
1 2 3
5.V
OUT
NJU2800F
4
5
1
1.V
OUT
2.GND
3.C
d
4.V
OR
5.V
IN
2 3
NJU2800U/U1
2
4
OUTPUT VOLTAGE/ DETECTION VOLTAGE
Device Name
Output Voltage
Detection Voltage
NJM2800U1-/U/F1803
1.8V
3.0V
NJM2800U1-/F2528
2.5V
2.8V
NJM2800U1-/U/F3342
3.3V
4.2V
EQUIVALENT CIRCUIT
V
IN
Thermal
Protection
Bandgap
Reference
V
OUT
V
OR
GND
Cd
NJM2800
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
Input Voltage
V
IN
Power Dissipation
Operating Temperature
Storage Temperature
P
D
Topr
Tstg
(Ta=25°C)
RATINGS
UNIT
+14
V
350(*1)
SOT-23-5
mW
200(*2)
SOT89-5 350(*2)
−
40∼+85
−
40∼+125
°C
°C
(*1): Mounted on glass epoxy board based on EIA/JEDEC. (114.3x76.2x1.6mm: 2Layers)
(*2): Device itself.
Operating voltage
V
IN
=+2.3
∼
+14V (In case of Vo<2.1V version)
ELECTRICAL CHARACTERISTICS
(V
IN
=Vo+1V, C
IN
=0.1µF, Co=1µF
(1.8<Vo≤2.6V: Co=2.2
µ
F, Vo≤1.8V: Co=4.7
µ
F)
,Ta=25°C)
PARAMETER
SYMBOL
TEST CONDITION
MIN. TYP. MAX. UNIT
250
350
V
IN
=Vo+2V, Io=0mA
Quiescent Current
I
Q
µA
−
Regulator Block
Output Voltage
Io=30mA
+1.0%
V
−1.0%
−
Vo
Output Current
Vo-0.3V
150
200
mA
−
Io
Line Regulation
0.10 %/V
−
−
∆Vo/∆V
IN
V
IN
=Vo+1V∼Vo+6V, Io=30mA
Load Regulation
0.03 %/mA
−
−
∆Vo/∆Io
Io=0∼100mA
0.10 0.18
V
Dropout Voltage(*3)
−
∆V
I_O
Io=60mA
Ripple Rejection
ein=200mVrms,f=1kHz,Io=10mA,
RR
60
dB
−
−
Vo=3V Version
Output Voltage
Ta=0∼85°C, Io=10mA
±50
−
−
ppm/°C
∆Vo/∆T
Temperature Coefficient
Output Noise Voltage
Reset Block
Voltage Detection
Hysteresis Voltage
Low Level Output
Output Leak Current
On time Output Current
Reset Output Delay
Operation Voltage Limit
V
NO
V
RT
V
RTH
R
ORL
I
ORH
I
ORL
t
d
V
OPL
f=10Hz∼100kHz, Io=10mA,
Vo=3V Version
V
IN
=H→L
V
IN
=H→L→H
−
45
−
µVrms
+1.0%
−1.0%
−
V
RT
×3
V
RT
×5
V
RT
×8
%
%
%
100
300
V
IN
=V
RT
-0.5V, R
L
=100kΩ
−
V
IN
= V
RT
+0.5V
0.1
−
−
5
V
IN
=V
RT
-0.5V, R
L
=0Ω
−
−
9
10
11
V
IN
=(V
RT
-0.5V)→ (V
RT
+0.5V), C
d
=0.1µF
0.9
V
ORL
=0.4V
−
−
V
V
mV
µA
mA
ms
V
(*3): The output voltage excludes under 2.1V.
The above specification is a common specification for all output voltages.
Therefore, it may be different from the individual specification for a specific output voltage.
NJM2800

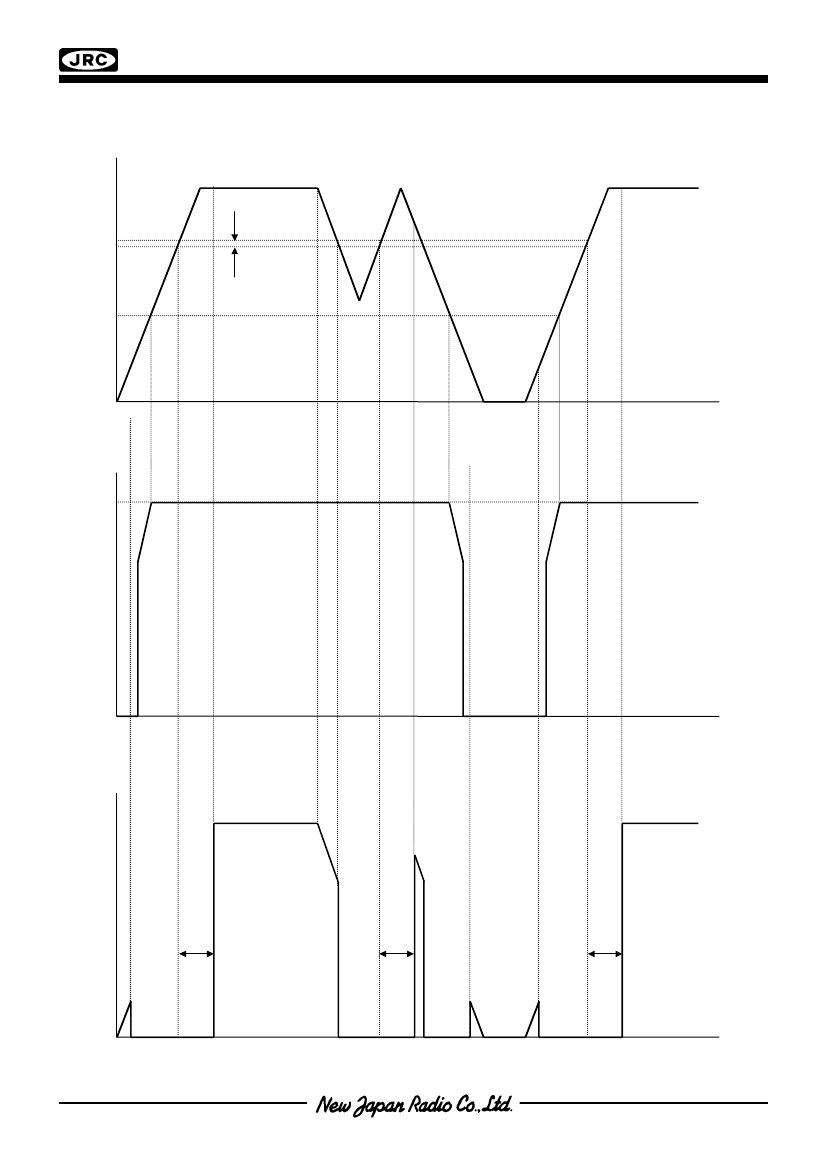

TIMING CHART
V
IN
[V]
V
RTH
V
RT
V
O
t
V
O
[V]
V
O
t
V
OR
[V]
td
td
td
t
∗
V
OR
is the case where a pull-up is carried out to V
IN
through resistance.
NJM2800
TEST CIRCUIT
I
Q
V
IN
V
O
I
OR
NJM2800
0.1µF
V
IN
R
L
C
d
GND
V
OR
V
1.0µF*4
V
0.1µF
I
OUT
(Ceramic)
V
OUT
V
OR
*4 1.8V<Vo≤2.6V: Co=2.2µF (Ceramic)
Vo≤1.8V: Co=4.7µF (Ceramic)
TYPICAL APPLICATIONS
V
IN
V
IN
V
O
V
OUT
NJM2800
0.1µF
100kΩ
1.0µF*5
V
OR
C
d
GND
0.1µF
V
OR
*5 1.8V<Vo≤2.6V: Co=2.2µF
Vo≤1.8V: Co=4.7µF
POWER DISSIPATION vs. AMBIENT TEMPERATURE
NJM2800F Power Dissipation
(Topr=-40½+85℃,Tj=125℃)
500
Power Dissipation P
D
(mW)
400
On Board(114.3×76.2×1.6mm, FR-4)
300
Device itself
200
100
0
-50
-25
0
25
50
75
100
Ambient Temperature Ta(℃)
