MVAS-88-ZSTT-13-L datasheet, PDF

Datasheet> All Categories > The connector> socket> MVAS-88-ZSTT-13-L

MVAS-88-ZSTT-13-L: DescriptionIC Socket, PGA88, 88 Contact(s),; CategoryThe connector socket; File Size416KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MVAS-88-ZSTT-13-L Overview

IC Socket, PGA88, 88 Contact(s),

MVAS-88-ZSTT-13-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	PGA88
Shell material	GLASS FILLED POLYESTER
JESD-609 code	e3
Number of contacts	88

Preview

Download Datasheet

View All

F-203

MPAS–144–ZSGT–13

MPAS–068–ZSGT–11

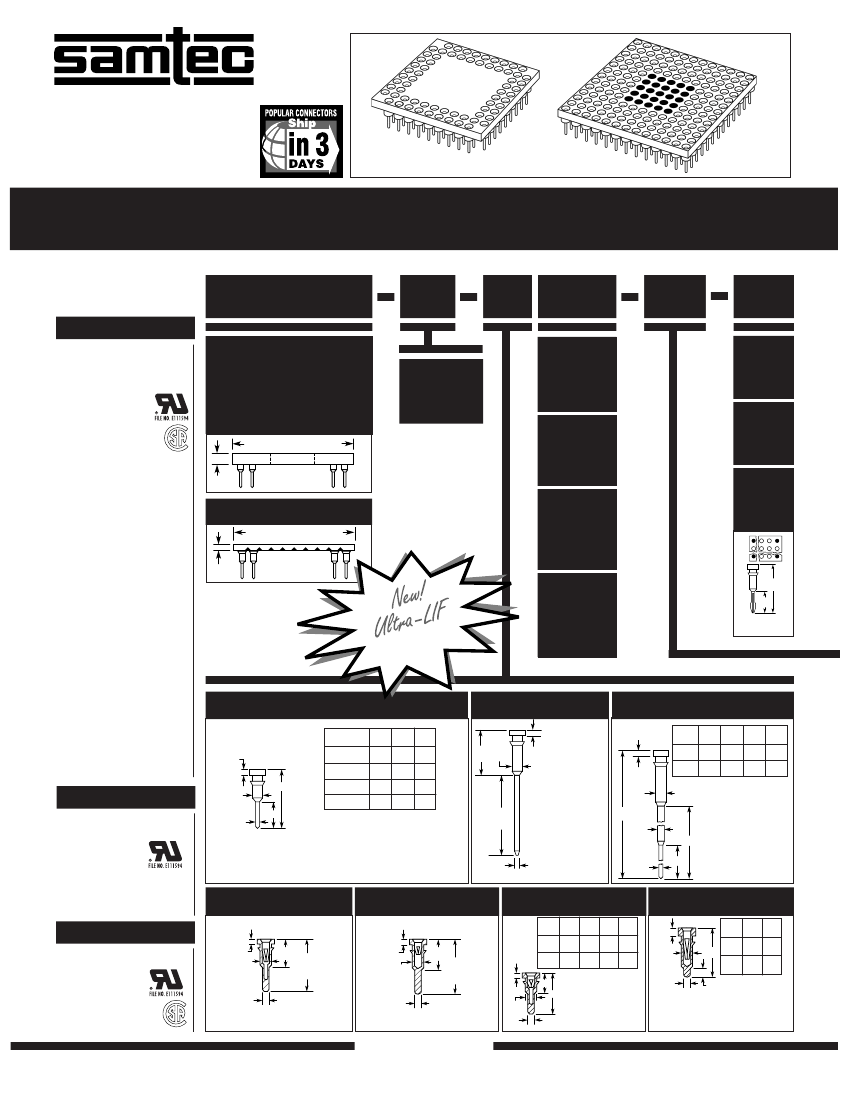

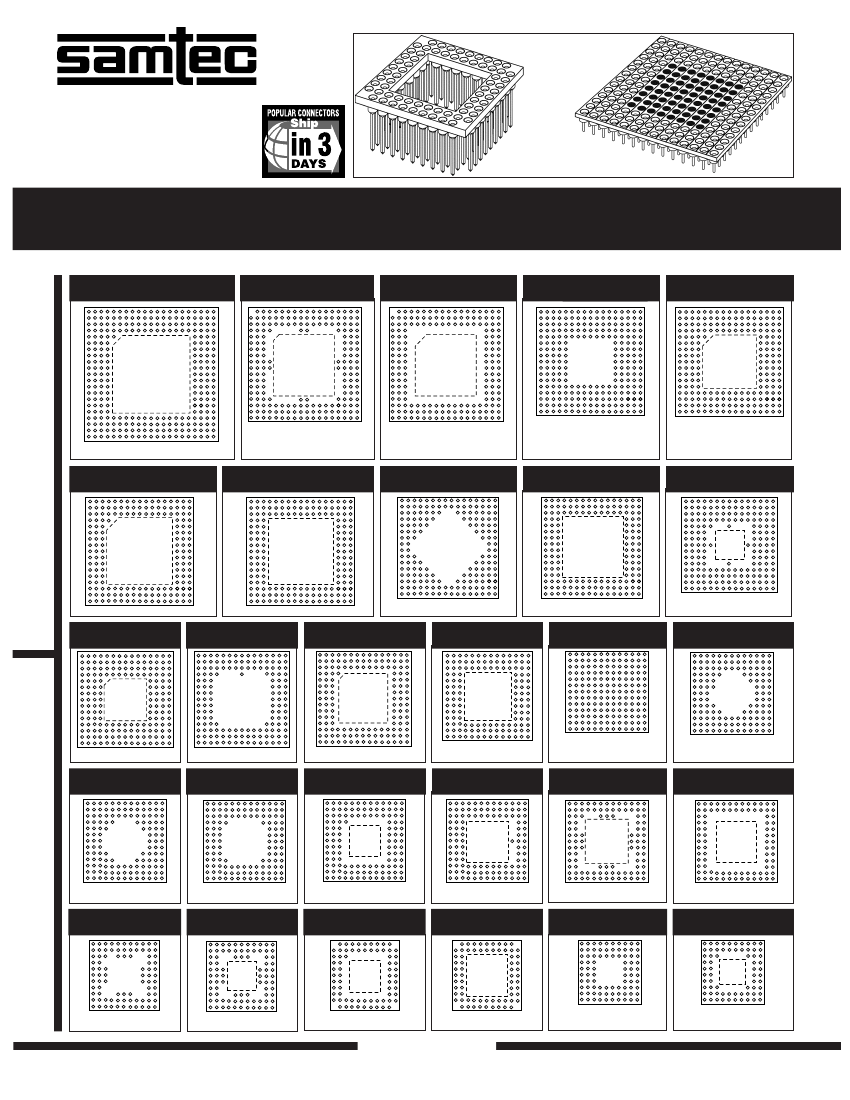

PIN GRID ARRAY SOCKETS

Mates with:

MPAT, MVAT, MHAT,

MSAT

MPAS, MVAS,

MHAS, MSAS

PIN OUT

CODE

BODY

STYLE

COUNT

LEAD

STYLE

PLATING

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?MPAS

or www.samtec.com?MVAS

MPAS

= Standard

Polyester

MVAS

= Open Polyester

Body

MSAS

= Hi-Temp LCP

Open Body

No. of Positions X .100 (2,54) SQ

–“XXX”

= Total Number

Of Filled

Positions

MPAS, MVAS

Insulator Material:

Black Glass Filled

Polyester

Operating Temp

Range:

-65°C to +105°C with Tin

-65°C to + 125°C with Gold

Plating:

Au over 50µ" (1,27µm) Ni or

Sn over 100µ" (2,58µm) Cu or

50µ" (1,27µm) Ni

Current Rating:

Contact:

BeCu

Shell:

Brass except Style K

Phospher Bronze

Contact Resistance:

10mΩ max

Lead Size Range:

.015" (0,38mm) to .022"

(0,56mm) DIA except

Style ZL =.015" (0,38mm) to

.020" (0,51mm) DIA;

ZM =.016" (0,41mm) to

.021" (0,53mm) DIA;

ZN =.016" (0,41mm) to

.020" (0,51mm) DIA

Insertion Force:

Style ZU = 1.5oz (0,42N) max,

all others = 2.5 oz (0,69N)

avg, 5.5 oz (1,53N) max,

except Styles J & K =

9 oz (2,50N) avg, 16 oz

(4,45N) max

Withdrawal Force:

Style ZU = 1.5oz (0,42N) max,

all others 2.0 oz (0,56N) avg,

0.35 oz (0,97N) min except

Styles J & K = 2.5 oz (0,69N)

avg, 1.5 oz (0,42N) min

= 30

" (0,76

Gold Contact,

" (0,25

Gold Shell

–2

= (9,14).360

Wire-Wrap

(–ZW Only)

–3

= 30

" (0,76

Gold Contact,

Tin Shell

= (6,60).260

Wire-Wrap

(–ZW Only)

(2,54)

.100

–L

= Locking

Socket

(–ZS Only)

MHAS

= Low Profile

No. of Positions X .100 (2,54) SQ

(1,27)

.050

= Tin Contact

and Shell

(Styles –ZS &

ZW Only)

Note:

Some sizes,

styles and options

are non-standard,

non-returnable.

n For

sertio

ax In al Force

N) M orm

(0,42

1.5oz g (0,44N Style –ZU

45 pecify

= 10

" (5,08

Gold Contact,

Tin Shell

(Style –ZS only)

(7,62)

.300

(3,43)

.135

Requires GT

Plating Option

–ZS, –ZU, –ZA, –J, –K

Locking lead (–L) available.

See OPTION.

(0,76)

.030

LEAD

STYLE

DIA

(0,51)

.020

(0,51)

.020

(0,64)

.025

(0,89)

.035

= Printed

Circuit

OAL

(7,62)

.300

(8,89)

.350

–ZW

= Wire-Wrap

(1,32)

(4,90) .052

.193 DIA

(0,76)

.030

MHAS NOT

AVAILABLE

Shorter w/w

tail lengths

available.

See OPTION.

–ZE or –ZH

= Elevated

(0,76)

.030

LEAD

STYLE

DIA

(0,51)

.020

(0,46)

.018

TAIL

(3,18)

.125

(4,57)

.180

TAIL

(4,32)

.170

(3,81)

.150

(8,86)

.349

OAL

(13,77)

.542

–ZS, –ZU

–ZA

–ZE

–ZH

(1,32)

.052

DIA

(12,95) (17,86)

.510

.703

–J

–K

SPECIFICATIONS

For complete specifications

see www.samtec.com?MSAS

(1,32)

.052

DIA

(10,41) (15,24)

.410

.600

(12,95) (17,86)

.510

.703

MHAS NOT AVAILABLE

Insertion Depth

= .125" to .170"

Style ZE Component

Part No. = EZ-2P3

Insertion Depth

= .125" to .145"

Style ZH Component

Part No. = EZ-2P2

MSAS

Same as MPAS

except:

Insulator Material:

Black Liquid Crystal Polymer

Max Processing Temp:

230°C for 30 to 60 seconds

Styles J & K =

16 oz/pin insertion

force

Insertion Depth = .095" to .145",

Style ZS Component Part No. = EZ-1P1

Style ZA Component Part No. = EZ-6P1

Option L Component Part No.

= SC-1L1 or EZ-1L1

Insertion Depth = .095" to .138",

Style J Component Part No. = SC-1P3

Insertion Depth = .095" to .157",

Style K Component Part No. = SC-2P1

(12,95)

.510

Insertion Depth

= .125" to .157"

Style ZW Component

Part No. = EZ-1W1(1)

Style ZW-2 Component

Part No. = EZ-1W1(2)

Style ZW-3 Component

Part No. = EZ-1W1(3)

(0,89)

.035

DIA

(0,64)

.025

Low

–ZL

= Profile

Low

–ZM

= Profile

MHAS & CHAS SERIES ONLY.

Micro

–ZN or ZC

= Socket

MHAS &

STYLE

CHAS

SERIES

–ZN

ONLY.

LEAD

DIA

–ZP or ZT

= Short

Tail

(1,32)

.052

DIA

(0,51)

.020

DIA

LEAD

STYLE HEAD

OAL

SPECIFICATIONS

For complete specifications

see www.samtec.com?MHAS

(0,76)

.030

(1,32)

.052

DIA

(0,76)

.030

DIA

(3,10)

.122 (5,33)

.230

± .010

(0,25)

(0,51)

.020

(1,32)

.052

DIA

(0,51)

.020

DIA

(3,35)

.132

(6,10)

.240

± .010

(0,25)

HEAD

OAL

(0,76) (0,51) (2,41) (4,83)

.030

.020

.095

.190

(0,74) (0,25) (2,11) (4,19)

.029

.010

.083

.165

–ZP

–ZT

(0,76) (5,08)

.030

.200

(0,51) (4,24)

.020

.167

–ZC

(1,32)

.052

DIA

MHAS

Same as MPAS

except:

Insulator Material:

Black High Temp. Plastic

Insertion Depth =.105" to .170"

Component No.= EZ-3P1

Insertion Depth =.080" to .105"

Component No.= EZ-4P1

ZN Insertion Depth

=.080" to .150"

ZN Component No

= EZ-5P1

ZC Insertion Depth

=.080" to .140"

ZC Component No.

= EZ-8P1

(0,89)

.035

ZP Insertion Depth =.125" to .145"

ZP Component No. = EZ-1M1

ZT Insertion Depth = .080" to .105"

ZT Component No. = EZ-1M2

Due to technical progress, all designs, specifications and components are subject to change without notice.

WWW.SAMTEC.COM

SAMTEC USA

• Tel: 1-800-SAMTEC-9 or 812-944-6733 • Fax: 812-948-5047

SAMTEC UK

• Tel: 01236 739292 • Fax: 01236 727113

SAMTEC GERMANY

• Tel: +49 (0) 89 / 89460-0 • Fax: +49 (0) 89 / 89460-299

SAMTEC FRANCE

• Tel: 01 60 95 06 60 • Fax: 01 60 95 06 61

SAMTEC ITALY

• Tel: 39 039 6890337 • Fax: 39 039 6890315

SAMTEC ASIA PACIFIC

• Tel: 65 6745-5955 • Fax: 65 6841-1502

SAMTEC CHINA

• Tel: 86-21-5385-4089 • Fax: 86-21-5385-4047

SAMTEC JAPAN

• Tel: 81-424-42-8318 • Fax: 81-424-42-8319

SAMTEC TAIWAN

• Tel: 886-02-2364-6077 • Fax: 886-02-2367-9531

SAMTEC HONG KONG

• Tel: 852-26904858 • Fax: 852-26904842

SAMTEC ANZ •

Tel: 613 9512 7747 • Fax: 613 9512 7745
