HRM020AN05W1S Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max

HRM020AN05W1S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	EMC Technology RF Labs
Reach Compliance Code	compliant
Nominal attenuation	2 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	23.01 dBm
JESD-609 code	e0
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

TITLE:

PART IDENTIFIER:

SPECIFICATION CONTROL DRAWING

SHIFT

(NEG)

-.003

-.004

-.005

-.006

-.007

DB VALUE

1, 2, 3, 4, 5, 6, 7, 8, 10

3, 4, 5, 6, 7

1,2, 3, 4, 5, 6, 7

2, 3, 4, 5, 6

1, 2, 3, 4, 5, 6

SHIFT

(POS)

.003

.005

.006

.007

DB VALUE

1, 3, 6

1, 2, 3, 6

DESCRIPTION:

TEMPERATURE VARIABLE CHIP ATTENUATOR WITH HIGH RELIABILITY TESTING.

NOTE:

SINGLE LOT AND DATE CODE AVAILABLE UPON REQUEST.

ASSEMBLY DWG:

N/A

1.0

SPECIFICATIONS:

1.1

ELECTRICAL:

1.1.1

IMPEDANCE: 50 OHMS NOMINAL.

1.1.2

OPERATING FREQUENCY RANGE: DC - 12.4GHZ.

1.1.3

ATTENUATION VALUES AVAILABLE: SEE TABLE ABOVE.

1.1.4

ATTENUATION ACCURACY AT 25°C:

±0.5DB

@ 1 GHZ.

1.1.5

VSWR: 1.30:1 MAX. @ 1GHZ.

1.1.6

INPUT POWER: 200 MILLIWATTS CW.

1.1.6.1 FULL RATED POWER TO 125°C, DERATED LINEARLY TO 0 WATTS AT 150°C.

1.1.7

TEMPERATURE COEFFICIENT OVER OPERATING TEMPERATURE RANGE:

SEE TABLE ABOVE, TEMPERATURE COEFFICIENT TOLERANCE: ±0.001 DB/DB/°C.

1.2

MECHANICAL:

1.2.1

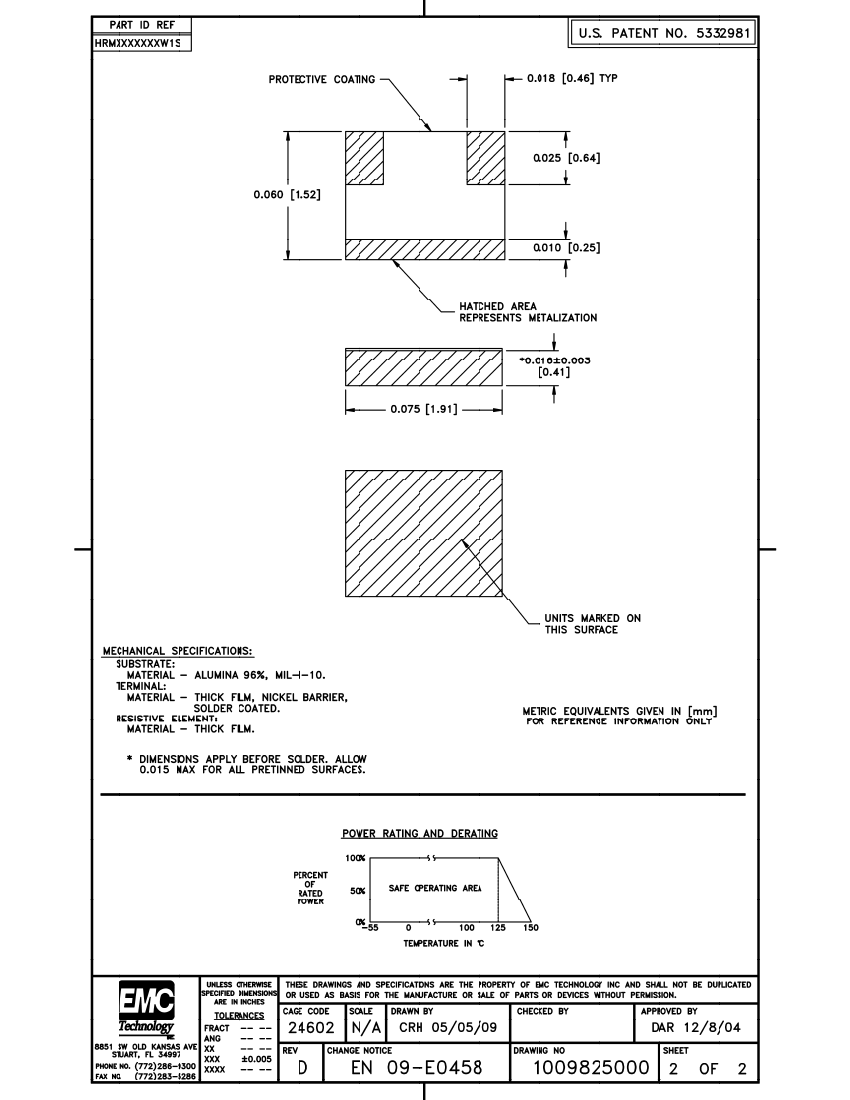

OUTLINE DWG: SEE SHEET 2.

1.2.2

WORKMANSHIP: PER MIL-PRF-55342.

1.3

ENVIRONMENTAL:

1.3.1

OPERATING TEMPERATURE RANGE: -55°C TO +150°C

UNIT MARKING:

NONE

2.0

3.0

QUALITY ASSURANCE:

3.1

VERIFY 100% VISUAL PRE-CAP INSPECTION PERFORMED. PER TP-8965.

3.2

PERFORM GROUP A, B AND/OR C TESTING AS INDICATED BY THE PART NUMBER PER TP-8965.

3.3

TEST DATA REQUIREMENTS:

3.3.1

TEST DATA REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.

3.3.2

DATA RETENTION - 24 MONTHS.

3.3.3

TEST SAMPLES REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.

PACKAGING:

STANDARD PACK PER 755W002. (SERIALIZED WAFFLE PACK)

4.0

EMC TECHNOLOGY

8851 SW OLD KANSAS AVE.

STUART, FL 34997

CAGE CODE # 24602

CHANGE NOTICE

EN 09-E0458

DWG #

REV LVL

SHEET

1009825000
