HCTS541D/SAMPLE datasheet, PDF

Datasheet> All Categories > logic> logic> HCTS541D/SAMPLE

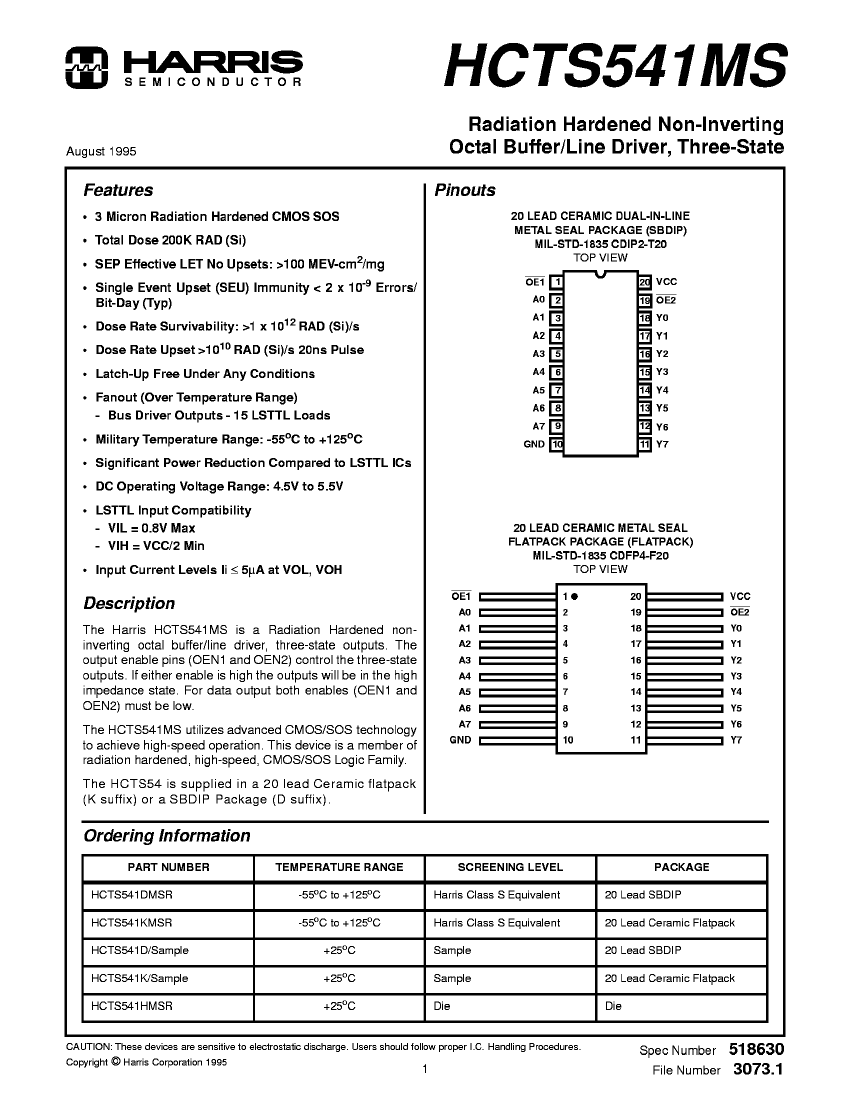

HCTS541D/SAMPLE: DescriptionBus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20; Categorylogic logic; File Size234KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCTS541D/SAMPLE Overview

Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20

HCTS541D/SAMPLE Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	HCT
JESD-30 code	R-CDIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	22 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal location	DUAL

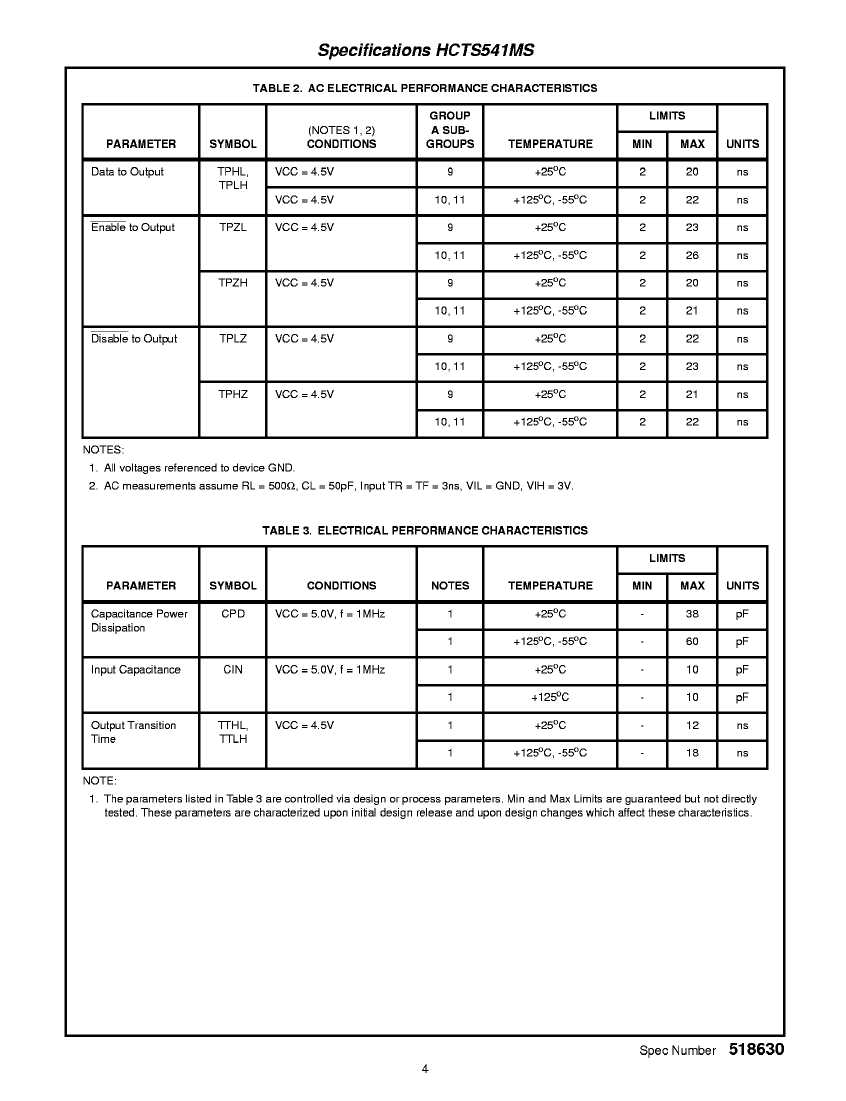

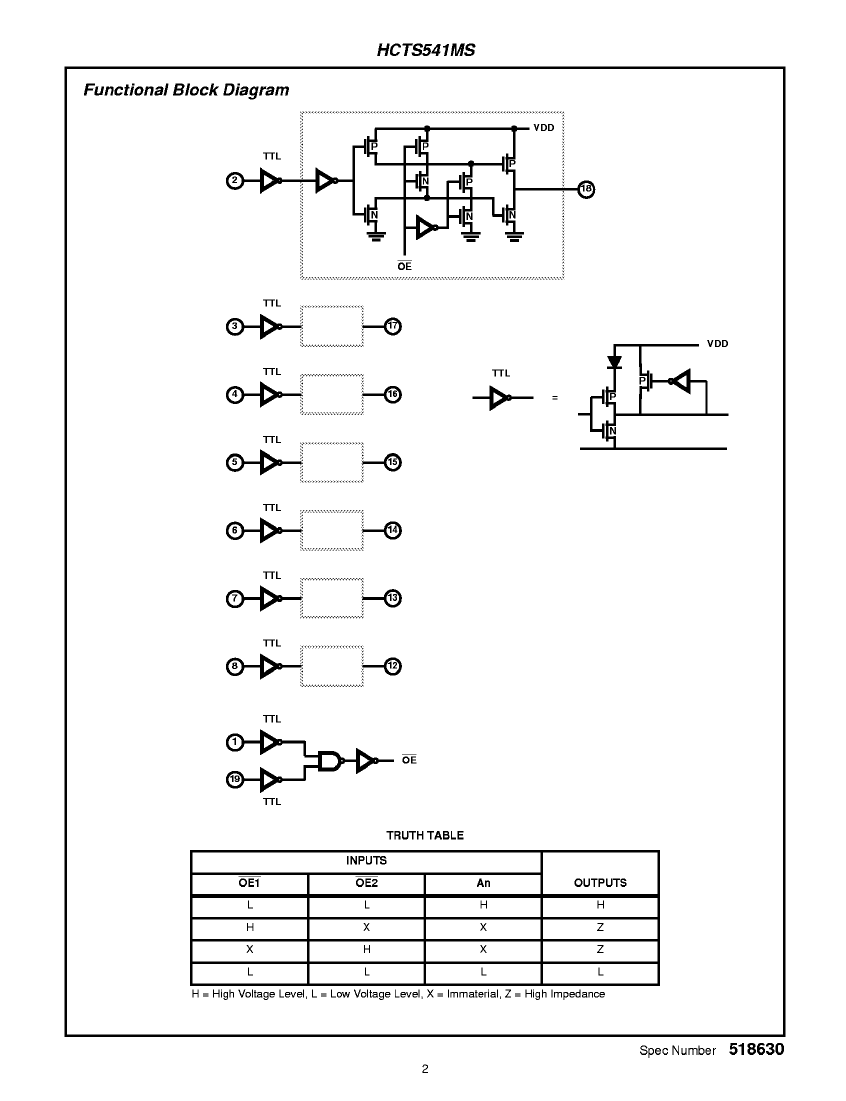

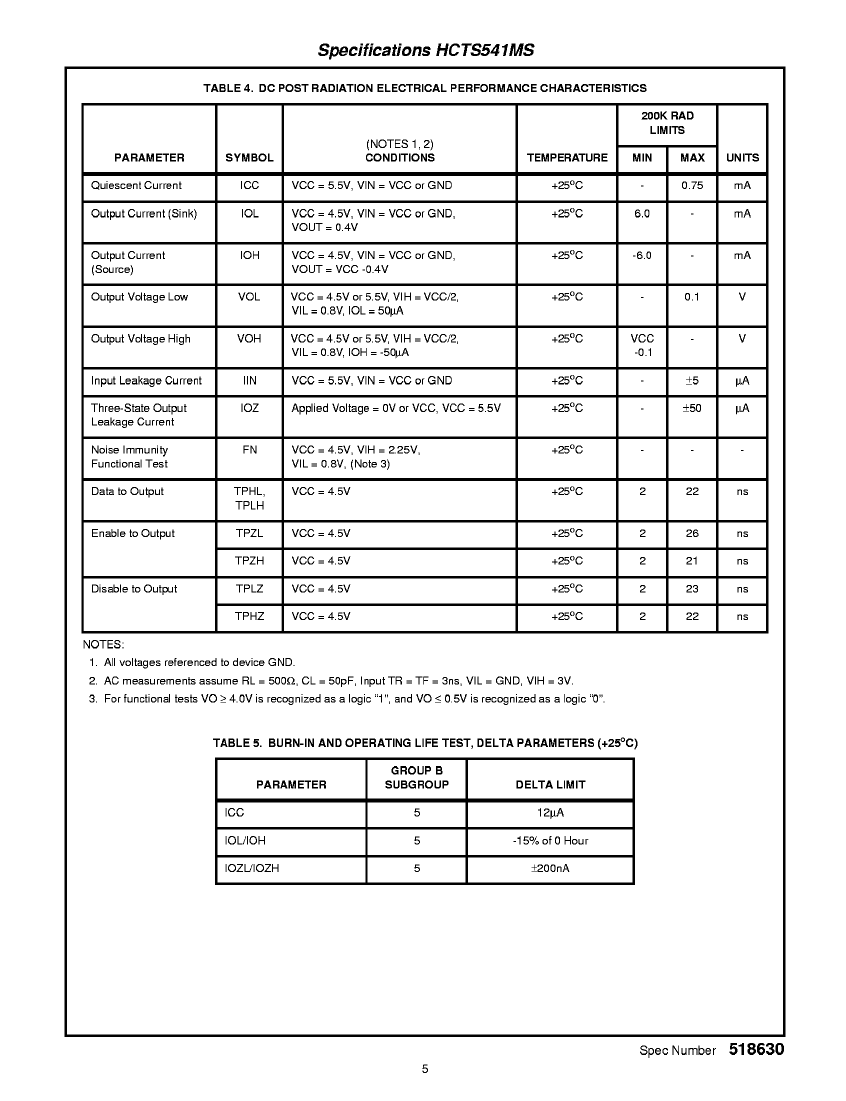

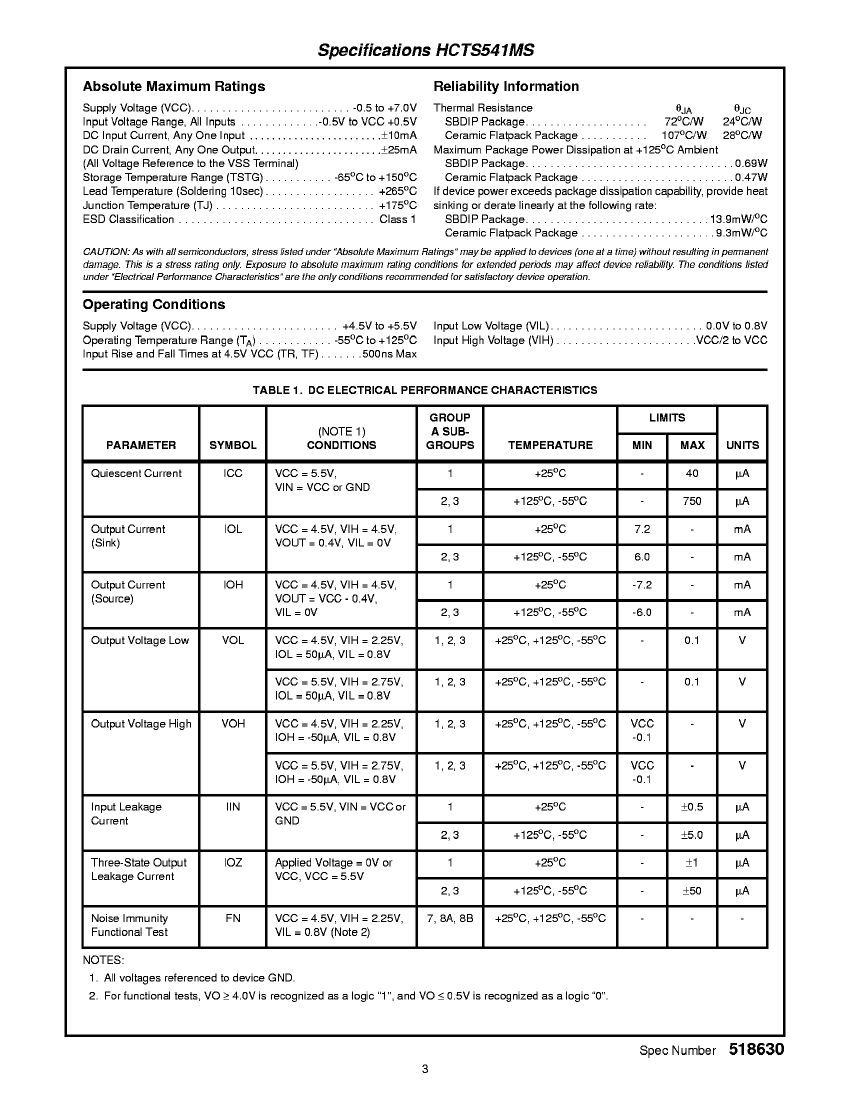

Preview

Download Datasheet

View All

HCTS541D/SAMPLE Related Products

	HCTS541D/SAMPLE	5962R9575101V9A	5962R9575101VXC	5962R9575101VRC	HCTS541KMSR	HCTS541K/SAMPLE	HCTS541DMSR	HCTS541HMSR
Description	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, DIE-20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20	Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	HCT	HCT	HCT	HCT	HCT	HCT	HCT	HCT
JESD-30 code	R-CDIP-T20	X-XUUC-N20	R-CDFP-F20	R-CDIP-T20	R-CDFP-F20	R-CDFP-F20	R-CDIP-T20	X-XUUC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	UNCASED CHIP	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE	UNCASED CHIP
propagation delay (tpd)	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	UPPER	DUAL	DUAL	DUAL	DUAL	DUAL	UPPER
Maker	Harris	Harris	-	Harris	Harris	Harris	Harris	Harris
JESD-609 code	-	e0	e4	e4	e0	-	e0	-
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Temperature level	-	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal surface	-	TIN LEAD	GOLD	GOLD	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-
total dose	-	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	200k Rad(Si) V	-	200k Rad(Si) V	-
