2N6904 datasheet, PDF - EEWORLD Datasheet

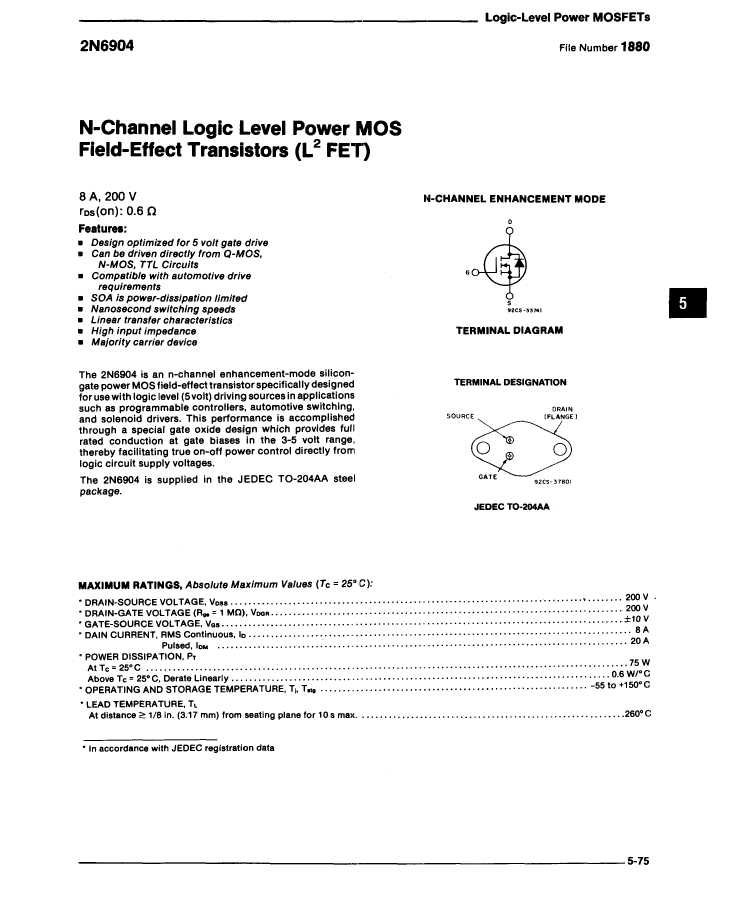

2N6904: DescriptionPower Field-Effect Transistor, 8A I(D), 200V, 0.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA; CategoryDiscrete semiconductor The transistor; File Size257KB，5 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

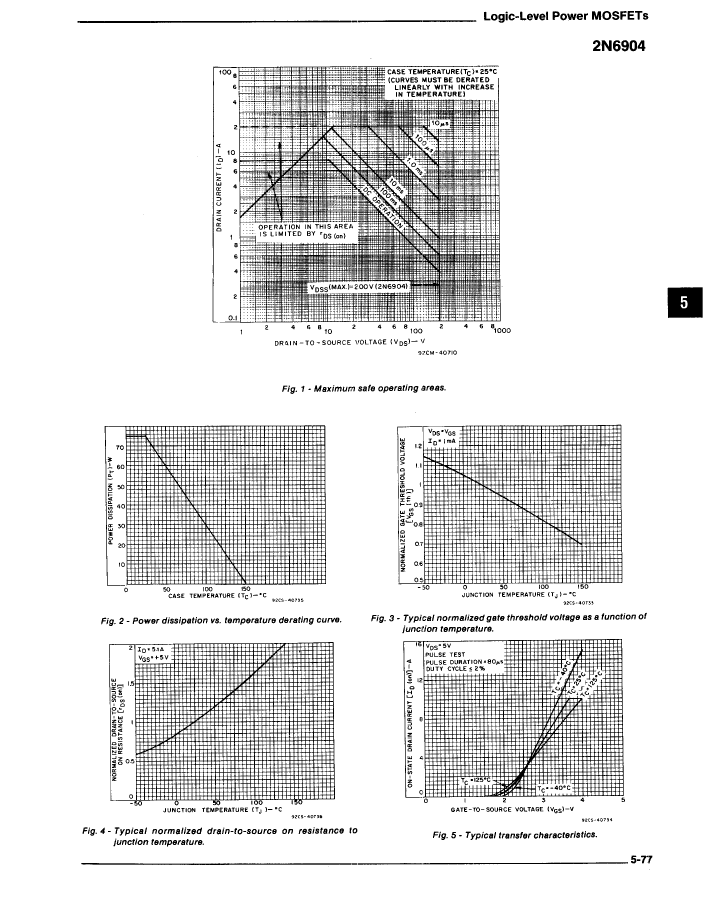

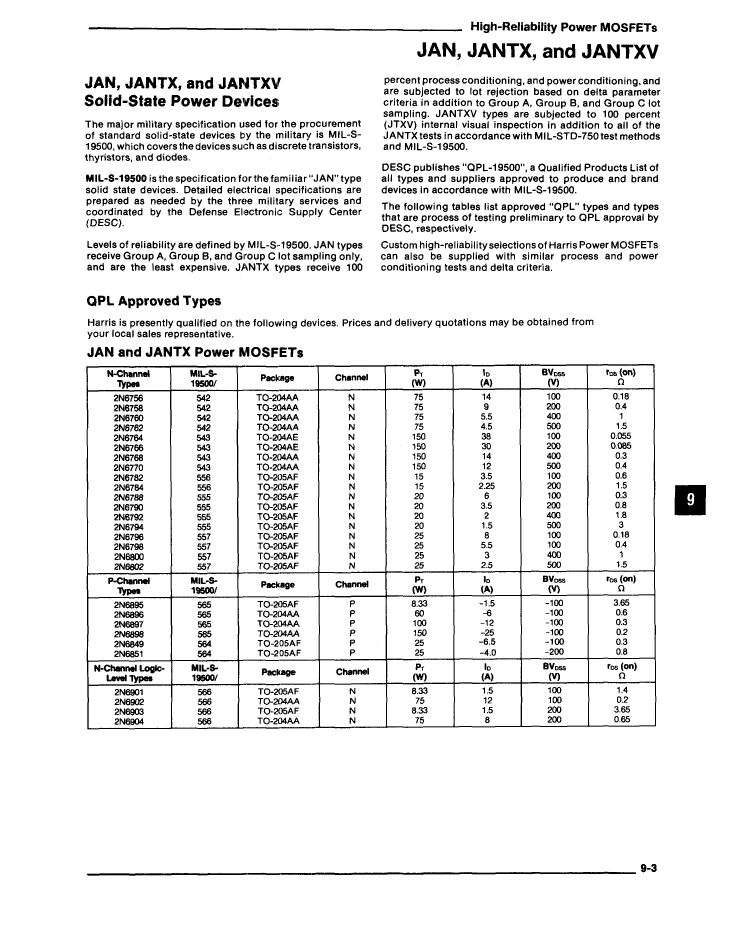

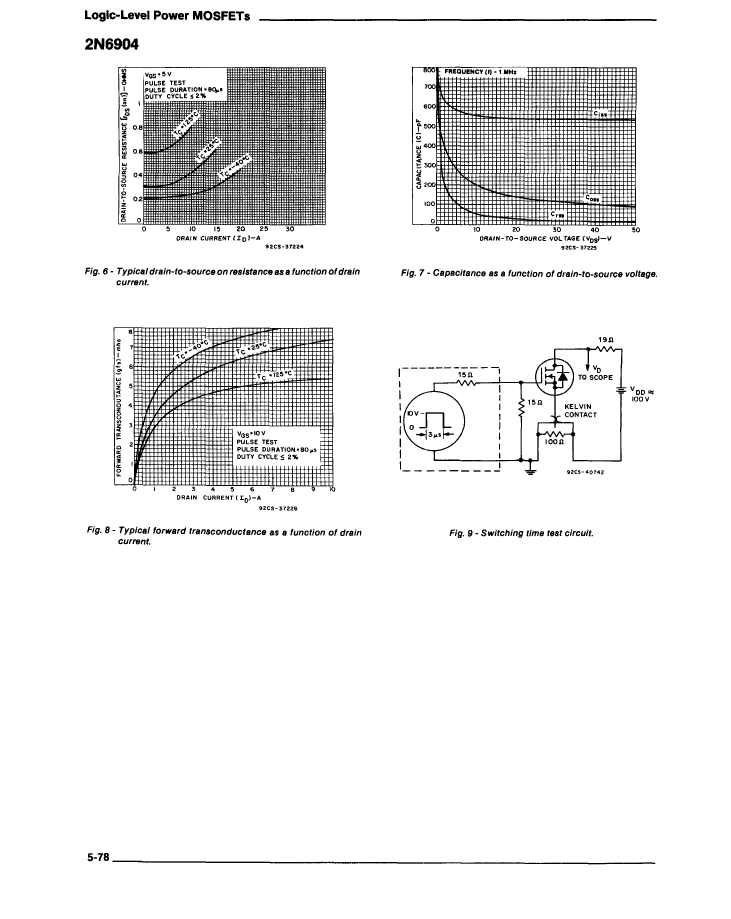

Download Datasheet Parametric View All

2N6904 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N6904	-	-	View	Buy Now

Power Field-Effect Transistor, 8A I(D), 200V, 0.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA

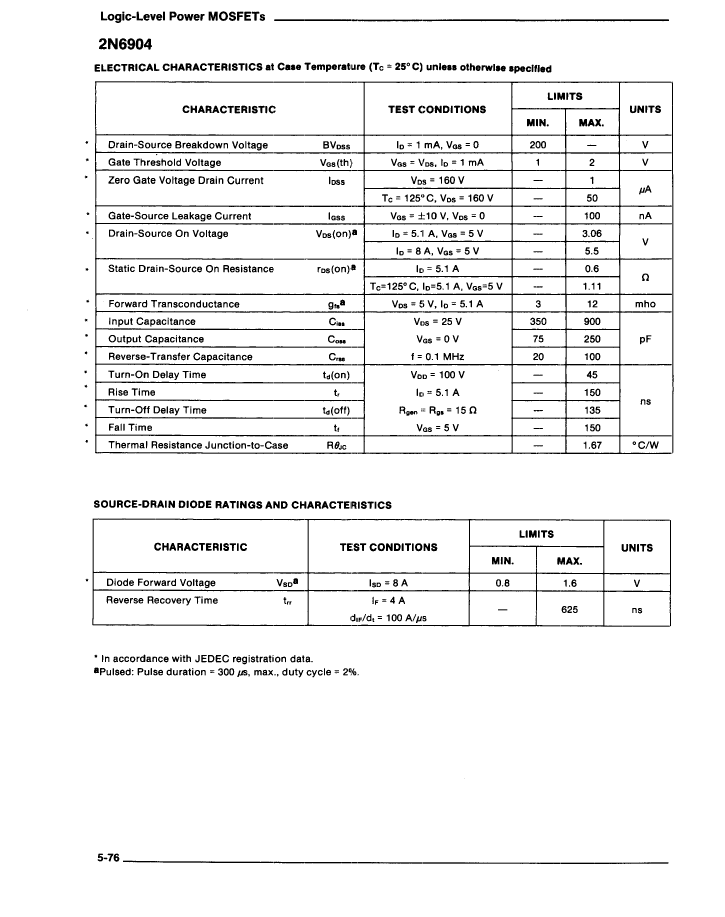

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	FLANGE MOUNT, O-MBFM-P2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE, RADIATION HARDENED
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (Abs) (ID)	8 A
Maximum drain current (ID)	8 A
Maximum drain-source on-resistance	0.6 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	100 pF
JEDEC-95 code	TO-204AA
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	75 W
Maximum power dissipation(Abs)	75 W
Maximum pulsed drain current (IDM)	20 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	285 ns
Maximum opening time (tons)	195 ns
Base Number Matches	1
