2SA1783-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1783-S

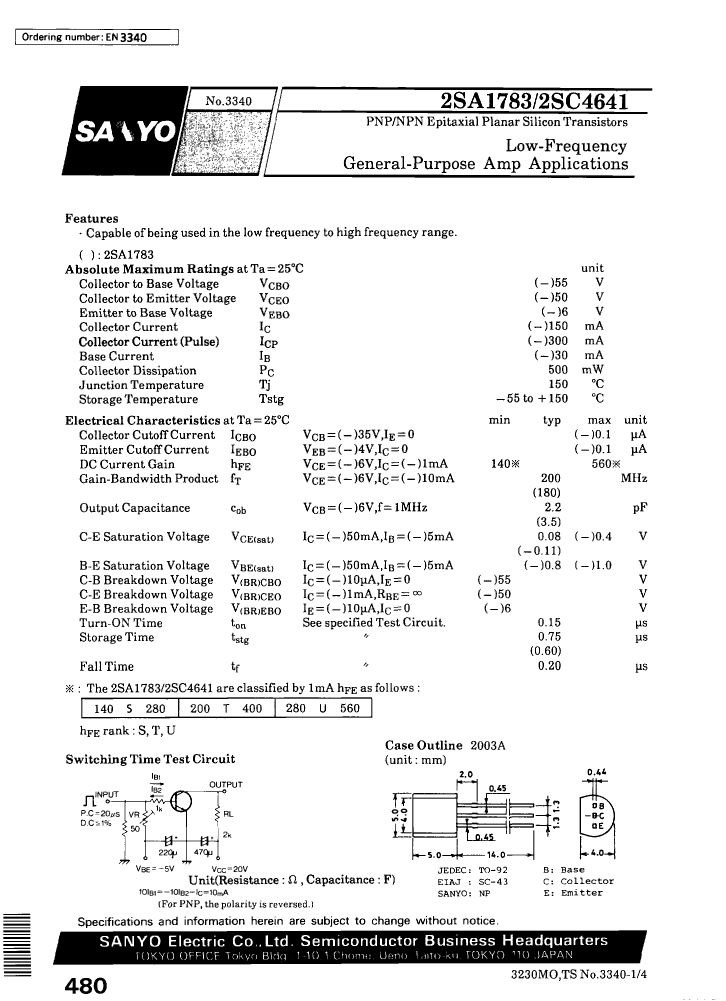

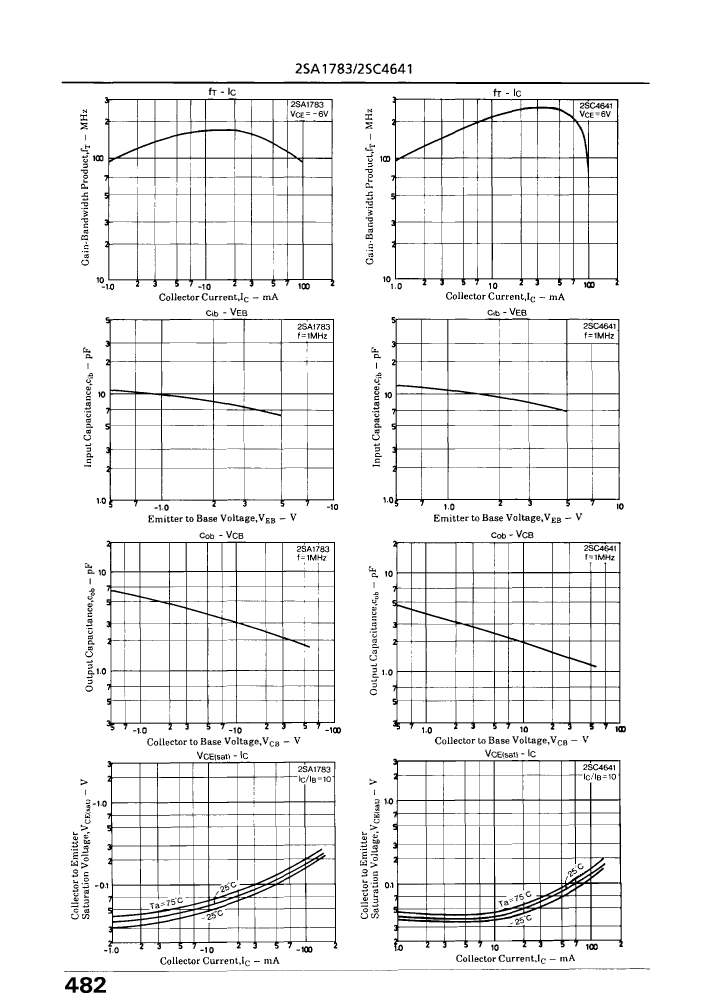

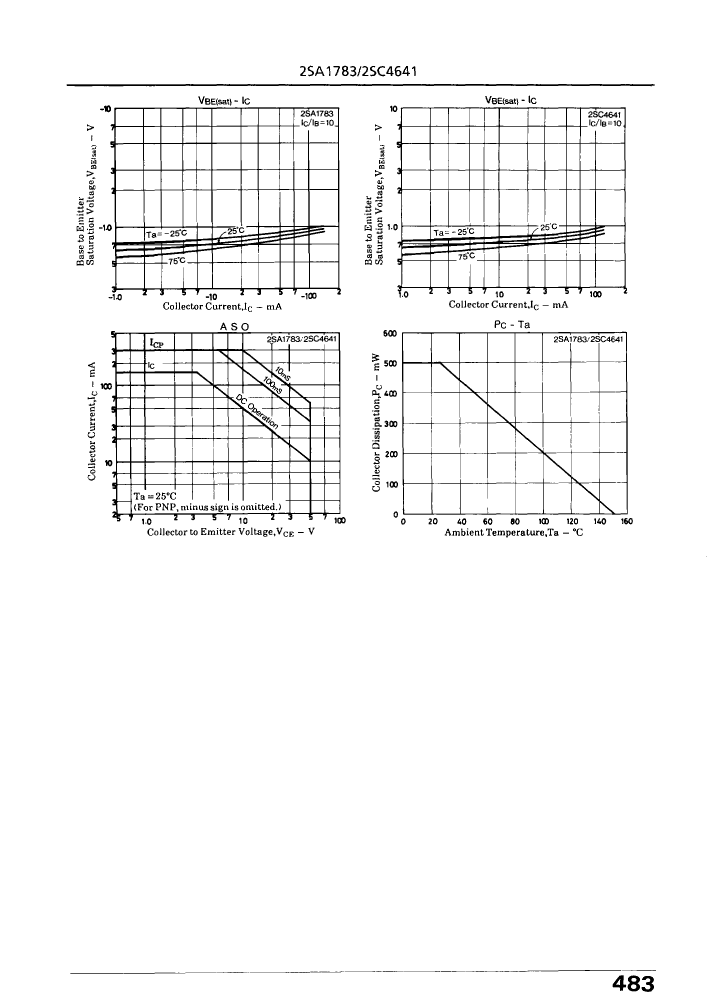

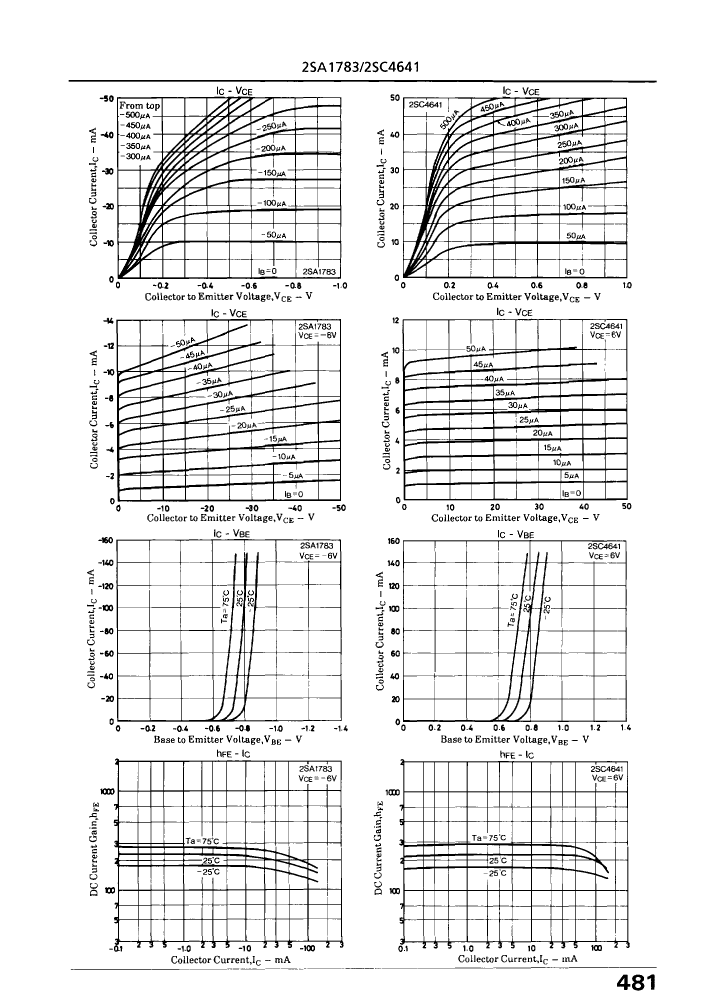

2SA1783-S: Description150mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92; CategoryDiscrete semiconductor The transistor; File Size141KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SA1783-S Overview

150mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92

2SA1783-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	0.15 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	140
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	180 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

2SA1783-S Related Products

	2SA1783-S	2SC4641-S	2SA1783-U	2SA1783-T	2SC4641-T	2SC4641-U
Description	150mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	150mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, SC-43, 3 PIN	150mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	150mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, SC-43, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow	unknown	unknown	unknow	unknown	unknown
Maximum collector current (IC)	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	140	140	280	200	200	280
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	NPN	PNP	PNP	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	180 MHz	200 MHz	180 MHz	180 MHz	200 MHz	200 MHz
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Objectid	-	1445390229	1935487260	-	1445390233	1935487289
