2SA1423 datasheet, PDF - EEWORLD Datasheet

2SA1423: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-92; CategoryDiscrete semiconductor The transistor; File Size114KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SA1423 Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-92

Parameter Name	Attribute value
Objectid	1417101508
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON

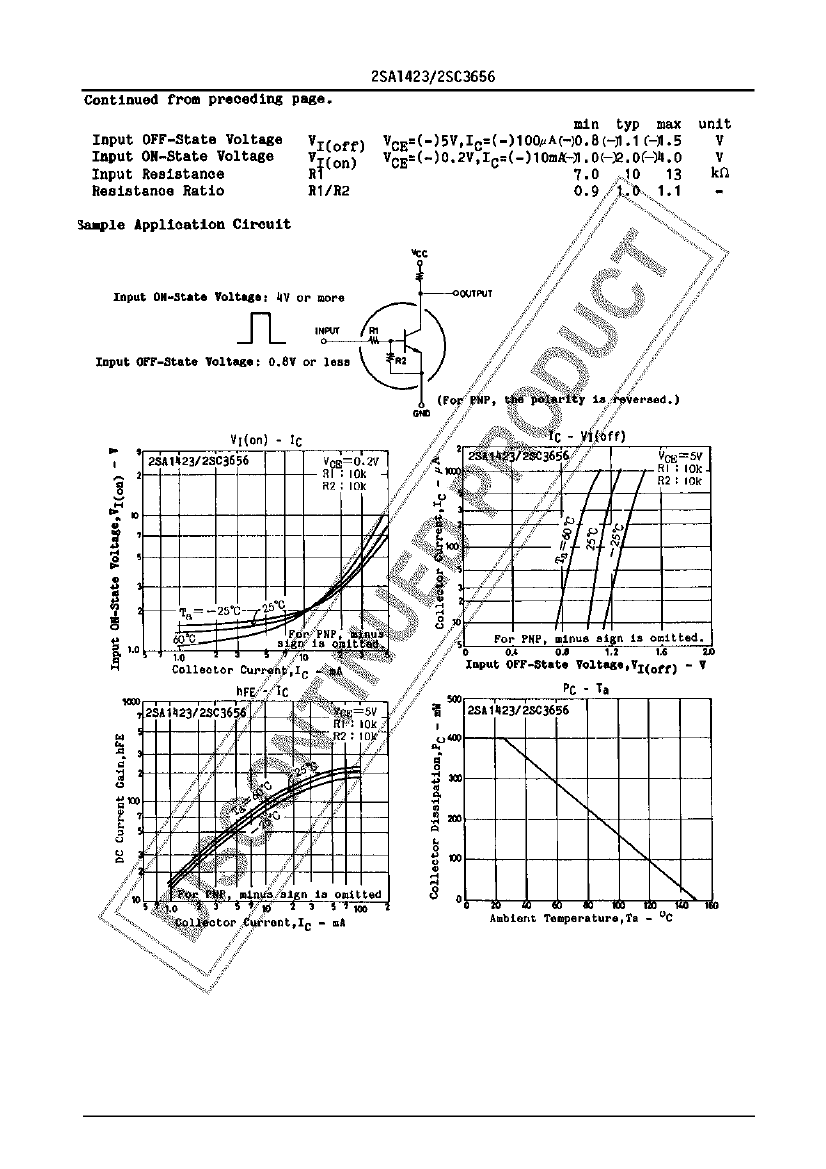

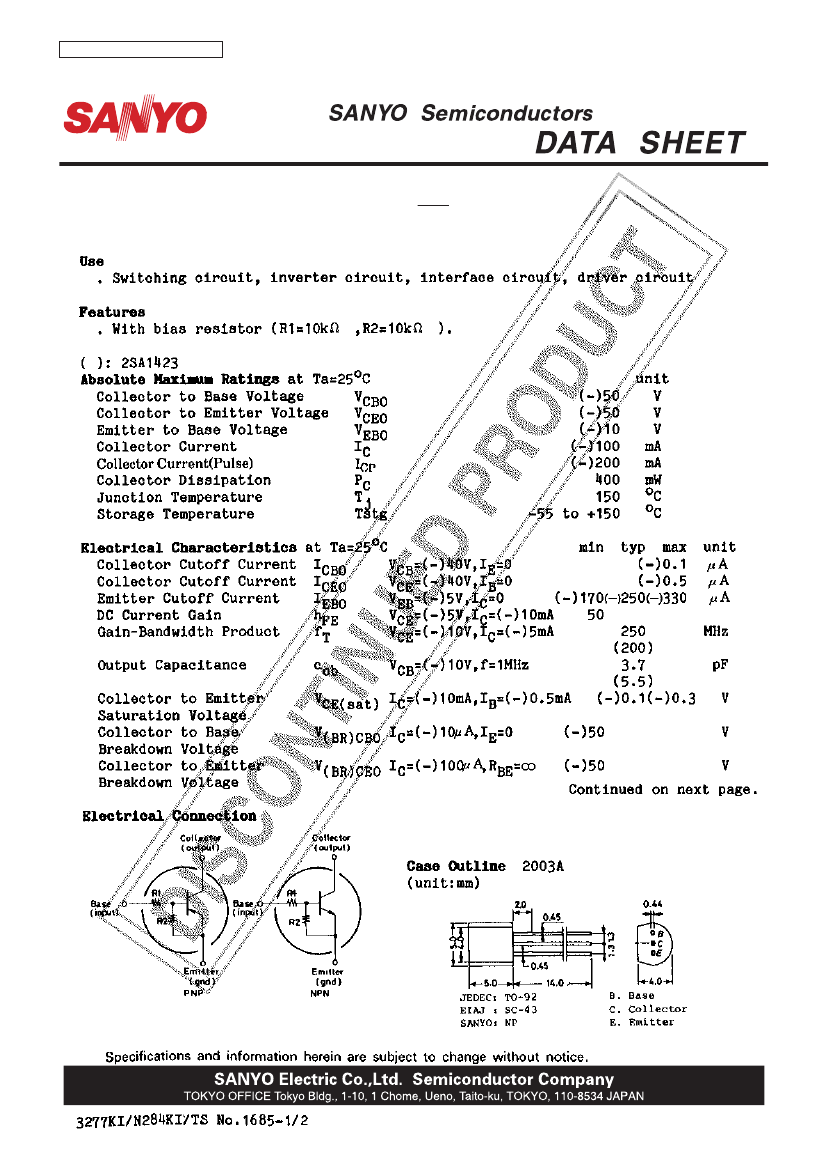

Ordering number : EN 1685A

PNP/NPN Epitaxial Planar Silicon Transistors

2SA1423/2SC3656

Switching Applications

(with Bias Resistor)

	2SA1423	2SC3656
Description	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, SC-43, 3 PIN
Objectid	1417101508	1417101425
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A	0.1 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
JEDEC-95 code	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	NPN
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
