2SB1667(SM)-GR

Description
TRANSISTOR 3 A, 60 V, PNP, Si, POWER TRANSISTOR, LEAD FREE, 2-10S2, 3 PIN, BIP General Purpose Power
CategoryDiscrete semiconductor    The transistor
File Size191KB,5 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

2SB1667(SM)-GR Overview

TRANSISTOR 3 A, 60 V, PNP, Si, POWER TRANSISTOR, LEAD FREE, 2-10S2, 3 PIN, BIP General Purpose Power

2SB1667(SM)-GR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
package instructionLEAD FREE, 2-10S2, 3 PIN
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)3 A
Collector-emitter maximum voltage60 V
ConfigurationSINGLE
Minimum DC current gain (hFE)150
JESD-30 codeR-PSSO-G2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typePNP
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationSINGLE
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)9 MHz
Base Number Matches1

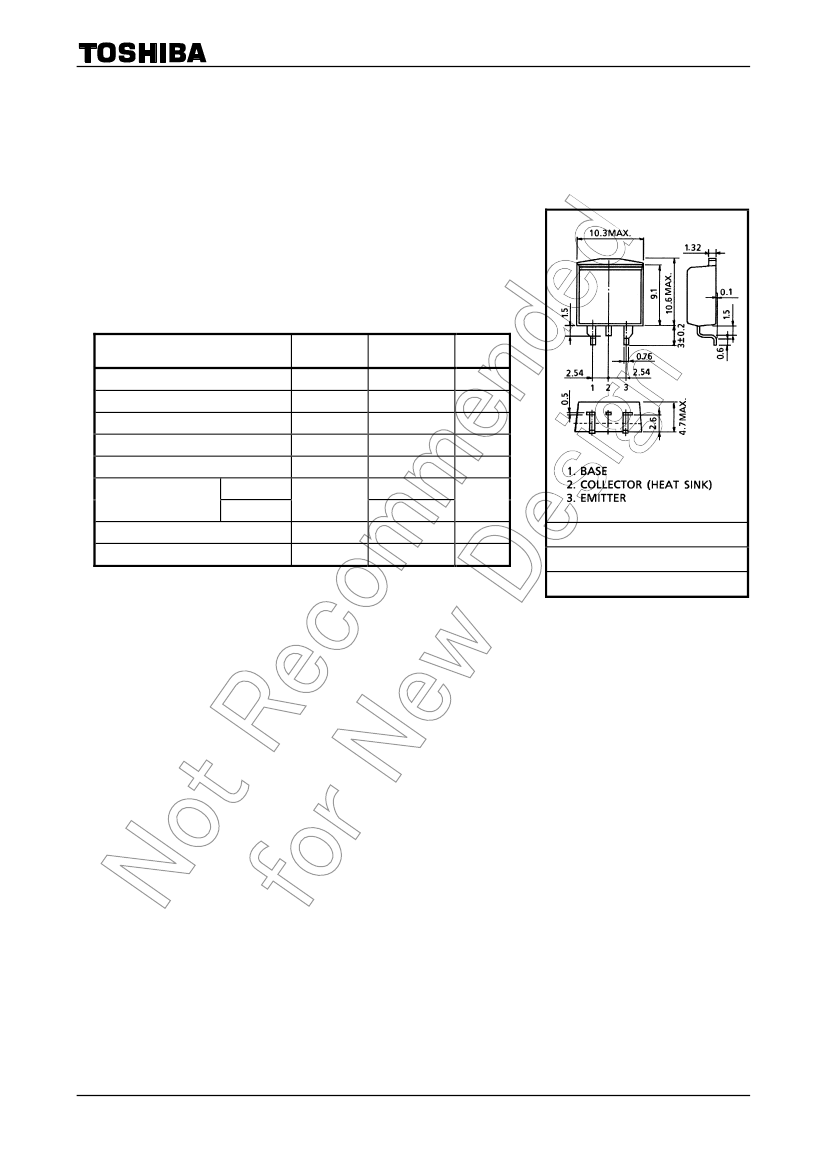

2SB1667(SM)
TOSHIBA Transistor
Silicon PNP Triple Diffused Type
2SB1667(SM)
Audio Frequency Power Amplifier Applications
Unit: mm
Low saturation voltage: V
CE (sat)
=
−1.7
V (max)
(I
C
=
−3
A, I
B
=
−0.3
A)
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power
dissipation
Junction temperature
Storage temperature range
Ta = 25°C
Tc = 25°C
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
−60
−60
−7
−3
−0.5
1.5
25
150
−55
to 150
Unit
V
V
V
A
A
W
°C
°C
JEDEC
JEITA
Note1: Using continuously under heavy loads (e.g. the application of high
TOSHIBA
2-10S2A
temperature/current/voltage and the significant change in
Weight: 1.4 g (typ.)
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1
2009-12-21
