SP9119 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SP9119

SP9119: DescriptionWide Band Low Power Amplifier, 10MHz Min, 1000MHz Max, FP-4; CategoryWireless rf/communication Radio frequency and microwave; File Size72KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

SP9119 Overview

Wide Band Low Power Amplifier, 10MHz Min, 1000MHz Max, FP-4

SP9119 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

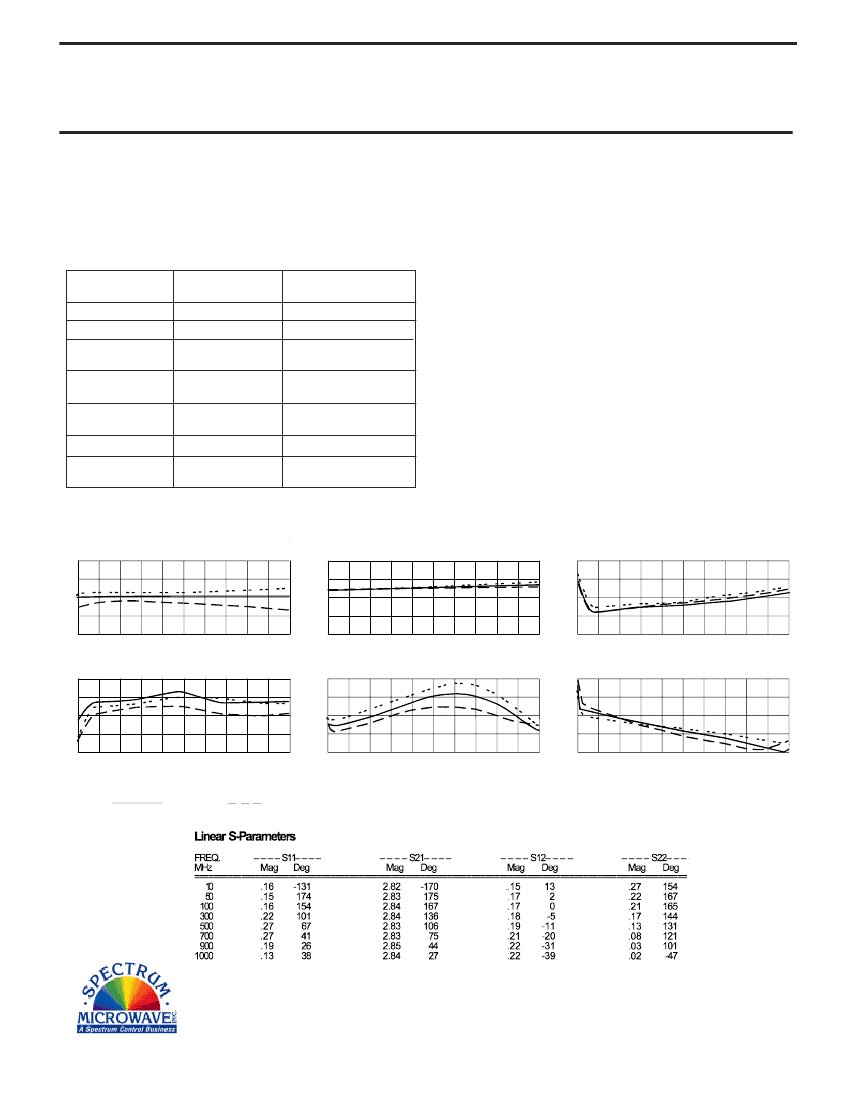

RF AMPLIFIER

MODEL

TM9119

Features

Medium Gain: 9 dB Typical

High Output Power: +21 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9119, 4 Pin TO-8 (T4)

TN9119, 4 Pin Surface Mount (SM3)

FP9119, 4 Pin Flatpack (FP4)

BX9119,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+45 dBm (Typ.)

Second Order Two Tone Intercept Point.........+40 dBm (Typ.)

Third Order Two Tone Intercept Point.............+34 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

10 - 1000 MHz

+21

-13

<1.5:1

8.5

+15

100

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1000 MHz

7 Min.

+19 Min.

-12 Max.

2.0:1 Max.

11.0 Max.

+15

110 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 1000 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 10 MHz

Stop 1000 MHz

Noise Figure (dB)

Start 10 MHz

Stop 1000 MHz

1 dB Comp. (dBm)

+23

+22

+21

+20

+19

Start 10 MHz

Stop 1000 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1000 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

07/12/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
