2SC3940Q: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, TO-92NL-A1, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size56KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

2SC3940Q Overview

Small Signal Bipolar Transistor, 1A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, TO-92NL-A1, 3 PIN

2SC3940Q Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	85
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

Transistor

2SC3940, 2SC3940A

Silicon NPN epitaxial planer type

For low-frequency output amplification and driver amplification

Complementary to 2SA1534 and 2SA1534A

5.0±0.2

4.0±0.2

Unit: mm

Features

0.7±0.2

Low collector to emitter saturation voltage V

CE(sat)

Allowing supply with the radial taping.

Parameter

Collector to

base voltage

Collector to

2SC3940

2SC3940A

2SC3940

Symbol

CBO

CEO

EBO

stg

Ratings

1.5

150

–55 ~ +150

Unit

0.45

–0.1

+0.15

13.5±0.5

Absolute Maximum Ratings

(Ta=25˚C)

0.7±0.1

8.0±0.2

0.45

–0.1

+0.15

emitter voltage 2SC3940A

Emitter to base voltage

Peak collector current

Collector current

Collector power dissipation

Junction temperature

Storage temperature

˚C

1 2 3

2.54±0.15

2.3±0.2

1.27

1:Emitter

2:Collector

3:Base

TO–92NL Package

Electrical Characteristics

Parameter

Collector cutoff current

Collector to base

voltage

Collector to emitter

voltage

2SC3940

2SC3940A

2SC3940

2SC3940A

(Ta=25˚C)

Symbol

CBO

CEO

EBO

FE1*1

FE2

CE(sat)

BE(sat)

Conditions

= 20V, I

= 0

= 10µA, I

= 0

= 2mA, I

= 0

= 10µA, I

= 0

= 10V, I

= 500mA

= 5V, I

= 1A

= 500mA, I

= 50mA

= 500mA, I

= 50mA

= 10V, I

= –50mA, f = 200MHz

= 10V, I

= 0, f = 1MHz

0.2

0.85

200

min

typ

max

0.1

Unit

µA

340

Emitter to base voltage

Forward current transfer ratio

Collector to emitter saturation voltage

Base to emitter saturation voltage

Transition frequency

Collector output capacitance

0.4

1.2

MHz

Pulse measurement

FE1

Rank classification

85 ~ 170

120 ~ 240

170 ~ 340

Rank

FE1

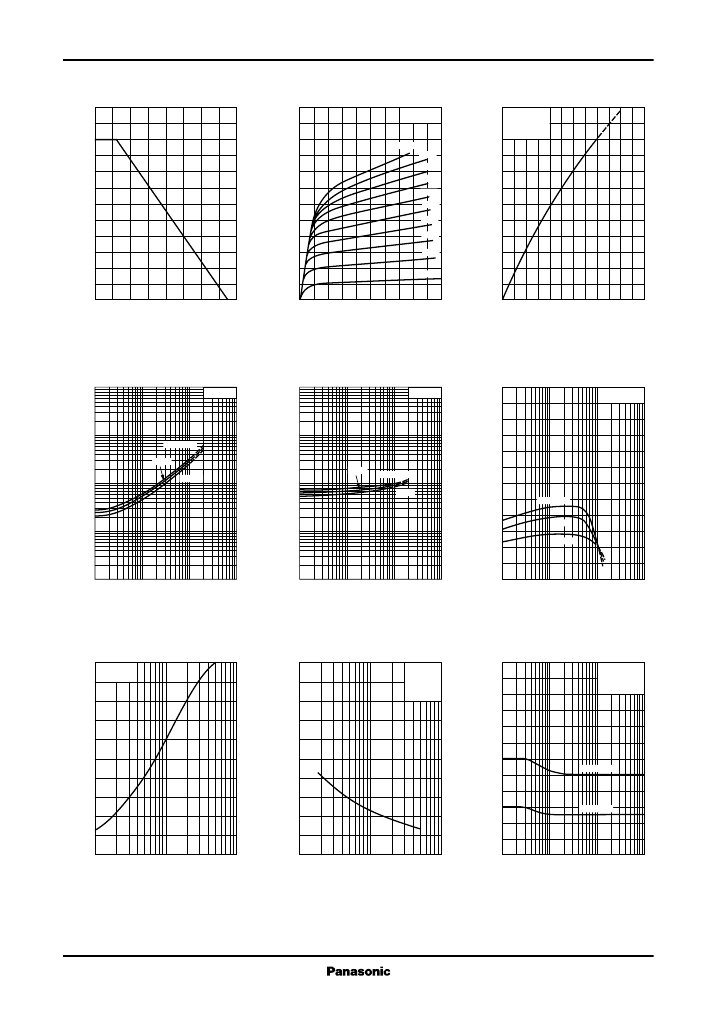

Request for your special attention and precautions in using the technical information

and semiconductors described in this material

(1) An export permit needs to be obtained from the competent authorities of the Japanese Govern-

ment if any of the products or technologies described in this material and controlled under the

"Foreign Exchange and Foreign Trade Law" is to be exported or taken out of Japan.

(2) The technical information described in this material is limited to showing representative character-

istics and applied circuit examples of the products. It does not constitute the warranting of industrial

property, the granting of relative rights, or the granting of any license.

(3) The products described in this material are intended to be used for standard applications or gen-

eral electronic equipment (such as office equipment, communications equipment, measuring in-

struments and household appliances).

Consult our sales staff in advance for information on the following applications:

•

Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment,

combustion equipment, life support systems and safety devices) in which exceptional quality and

reliability are required, or if the failure or malfunction of the products may directly jeopardize life or

harm the human body.

•

Any applications other than the standard applications intended.

(4) The products and product specifications described in this material are subject to change without

notice for reasons of modification and/or improvement. At the final stage of your design, purchas-

ing, or use of the products, therefore, ask for the most up-to-date Product Standards in advance to

make sure that the latest specifications satisfy your requirements.

(5) When designing your equipment, comply with the guaranteed values, in particular those of maxi-

mum rating, the range of operating power supply voltage and heat radiation characteristics. Other-

wise, we will not be liable for any defect which may arise later in your equipment.

Even when the products are used within the guaranteed values, redundant design is recommended,

so that such equipment may not violate relevant laws or regulations because of the function of our

products.

(6) When using products for which dry packing is required, observe the conditions (including shelf life

and after-unpacking standby time) agreed upon when specification sheets are individually exchanged.

(7) No part of this material may be reprinted or reproduced by any means without written permission

from our company.

Please read the following notes before using the datasheets

A. These materials are intended as a reference to assist customers with the selection of Panasonic

semiconductor products best suited to their applications.

Due to modification or other reasons, any information contained in this material, such as available

product types, technical data, and so on, is subject to change without notice.

Customers are advised to contact our semiconductor sales office and obtain the latest information

before starting precise technical research and/or purchasing activities.

B. Panasonic is endeavoring to continually improve the quality and reliability of these materials but

there is always the possibility that further rectifications will be required in the future. Therefore,

Panasonic will not assume any liability for any damages arising from any errors etc. that may ap-

pear in this material.

C. These materials are solely intended for a customer's individual use.

Therefore, without the prior written approval of Panasonic, any other use such as reproducing,

selling, or distributing this material to a third party, via the Internet or in any other way, is prohibited.

2001 MAR
