BK-MDQ-1/16-V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK-MDQ-1/16-V

BK-MDQ-1/16-V: DescriptionElectric Fuse, Time Delay Blow, 0.063A, 250VAC, 35A (IR), Through Hole; CategoryCircuit protection Circuit protection; File Size259KB，2 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

BK-MDQ-1/16-V Overview

Electric Fuse, Time Delay Blow, 0.063A, 250VAC, 35A (IR), Through Hole

BK-MDQ-1/16-V Parametric

Parameter Name	Attribute value
Maker	Cooper Industries
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME DELAY
body height	32.82 mm
Body length or diameter	6.76 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Manufacturer's serial number	MDQ
Installation features	THROUGH HOLE
method of packing	BOX
physical size	6.76mm x 32.82mm
Rated breaking capacity	35 A
Rated current	0.063 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	TIN
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

⁄

" x 1

⁄

" Fuses

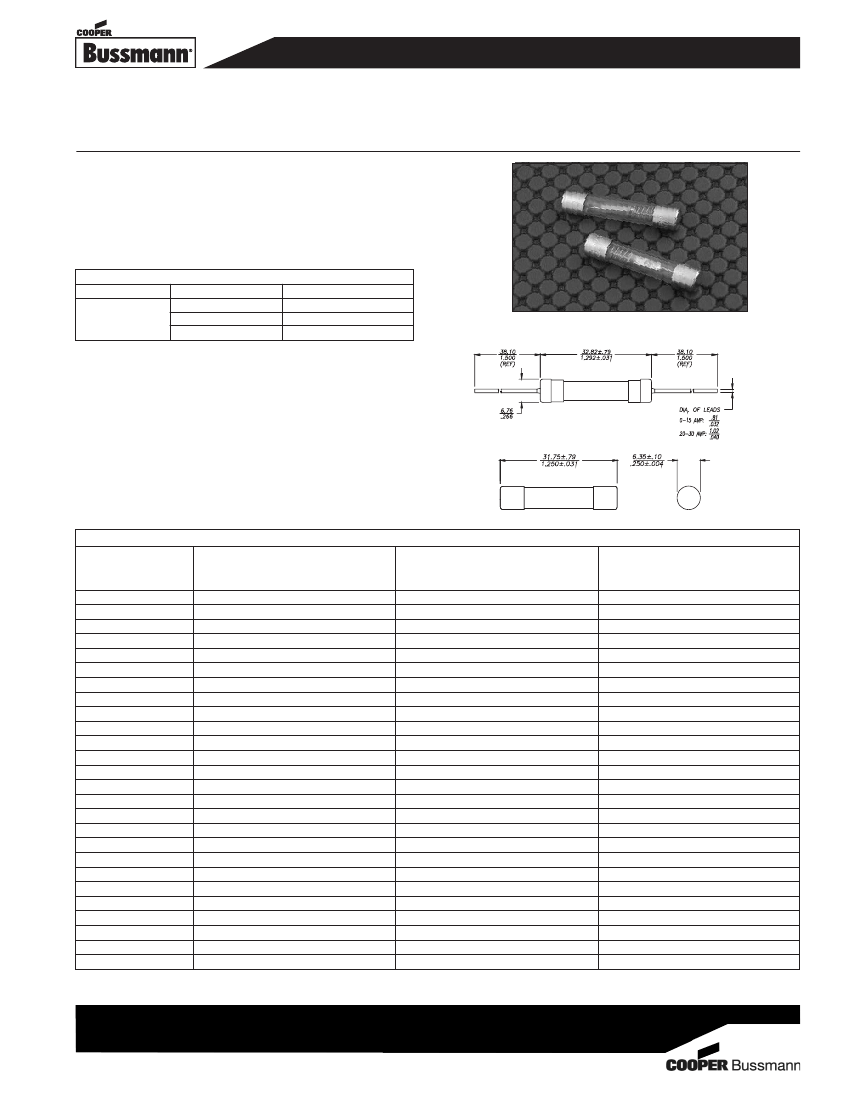

MDQ Series Dual-Element, Time-Delay, Glass Fuse

Description

• Dual-element, time-delay

•

⁄

" x 1

⁄

" (6.3 x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

• Available with axial leads

Rated Current

⁄

- 30A

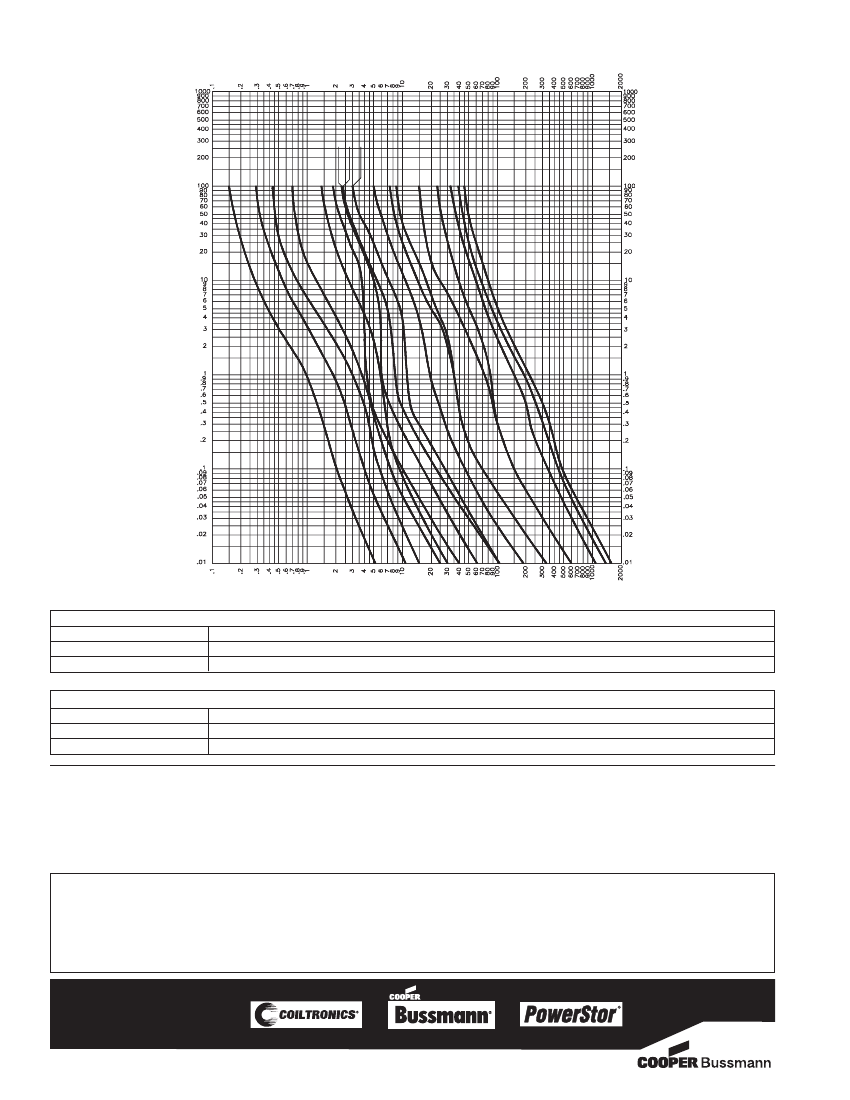

Electrical Characteristics

% of Amp Rating

Opening Time

100%

None

135%

60 minutes maximum

200%

120 seconds maximum

Dimensions - mm (in)

Agency Information

• UL Listed Card: MDQ-

⁄

- 7A (Guide JDYX,

File E19180)

• UL Recognition Card: MDQ-7.5 - 15A

(Guide JDYX2, File E19180)

• CSA Component Acceptance Card:

MDQ-

⁄

- 15 (Class 1422-01)

Ordering

• Specify packaging, product, and option code

(i.e., Bk-MDQ-BV-1)

with axial leads

Specifications

Product Code

MDQ-1/16

MDQ-1/10

MDQ-1/8

MDQ-3/16

MDQ-2/10

MDQ-1/4

MDQ-3/10

MDQ-3/8

MDQ-1/2

MDQ-3/4

MDQ-1

MDQ-1-1/4

MDQ-1-1/2

MDQ-2

MDQ-2-1/4

MDQ-2-1/2

MDQ-3

MDQ-4

MDQ-5

MDQ-6

MDQ-6-1/4

MDQ-7

MDQ-8

MDQ-9

MDQ-10

MDQ-15

Voltage

Rating

Vac

250

Interrupting

Rating

Amps

100

200

1,000

Typical DC Cold

Resistance

(Ω)**

83.30000

35.00000

21.50000

10.00000

8.65000

5.77500

4.20000

2.35000

1.40000

0.39685

0.37400

0.36000

0.27000

0.13250

0.11450

0.10050

0.05715

0.03510

0.02650

0.01715

0.01690

0.01375

0.01200

0.00888

0.00720

0.00410

** DC Cold Resistance (Measured at <10% of rated current)

0308

BU-SB07472

Page 1 of 2

Data Sheet 2044
