OM6537SP1 datasheet, PDF - EEWORLD Datasheet

OM6537SP1: DescriptionInsulated Gate Bipolar Transistor, 10A I(C), 500V V(BR)CES, N-Channel, CERAMIC PACKAGE-6; CategoryDiscrete semiconductor The transistor; File Size252KB，8 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric View All

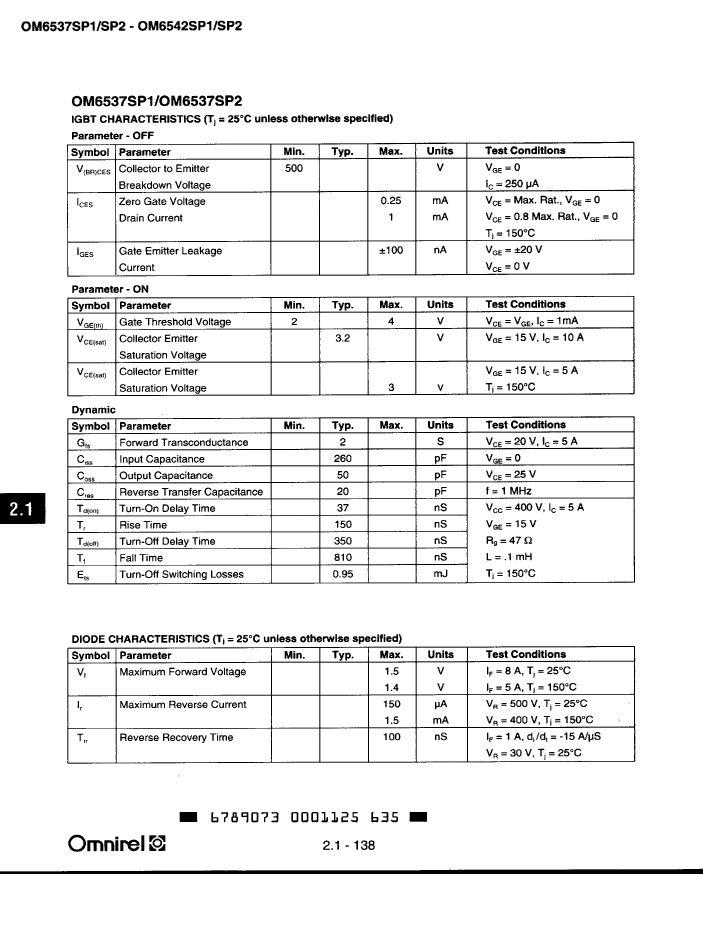

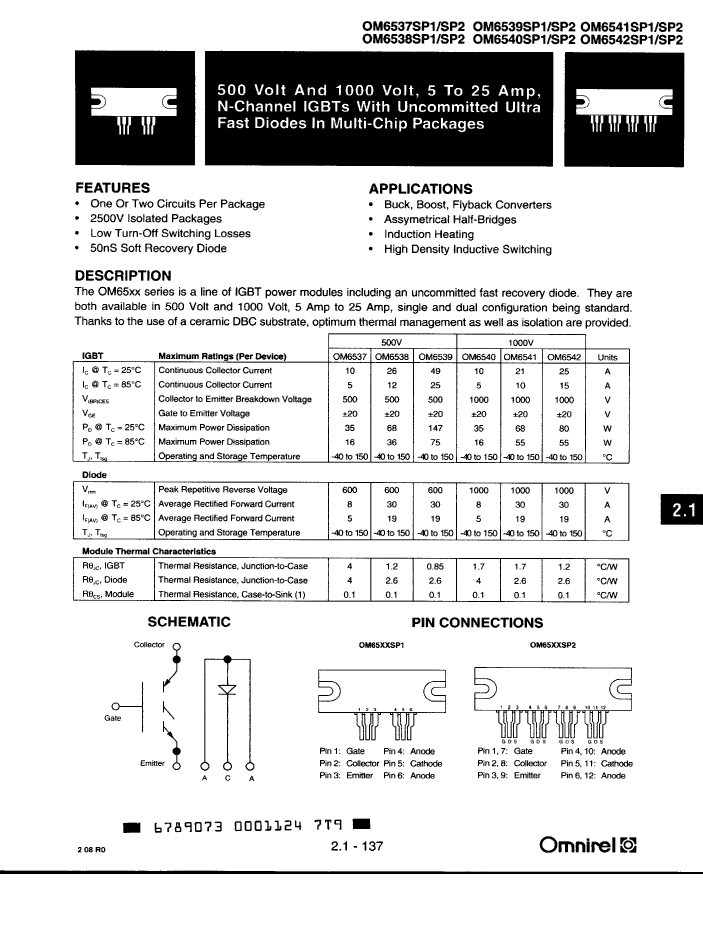

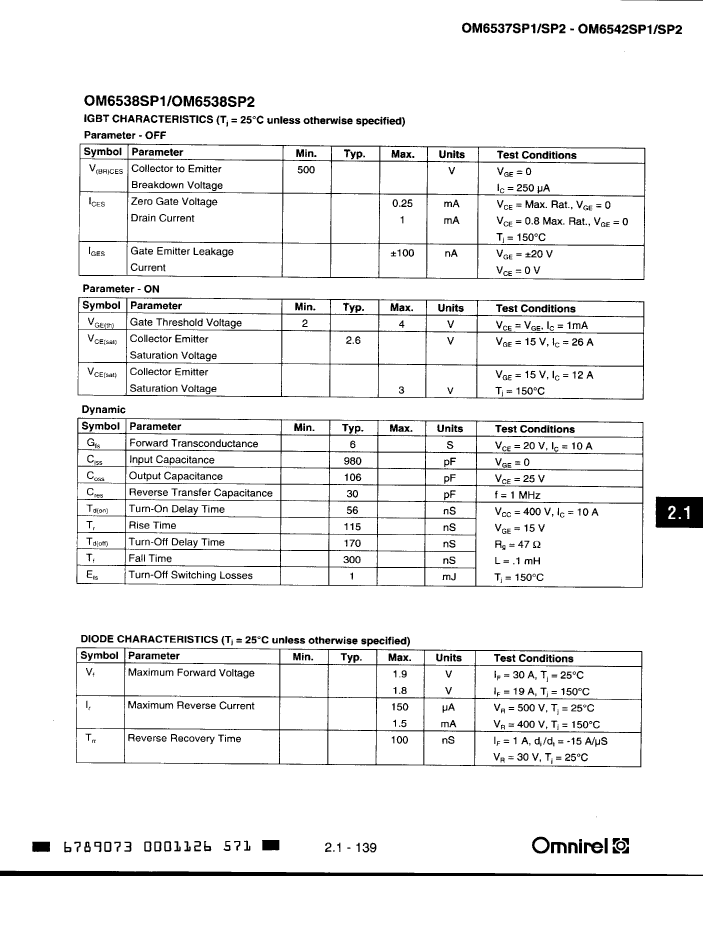

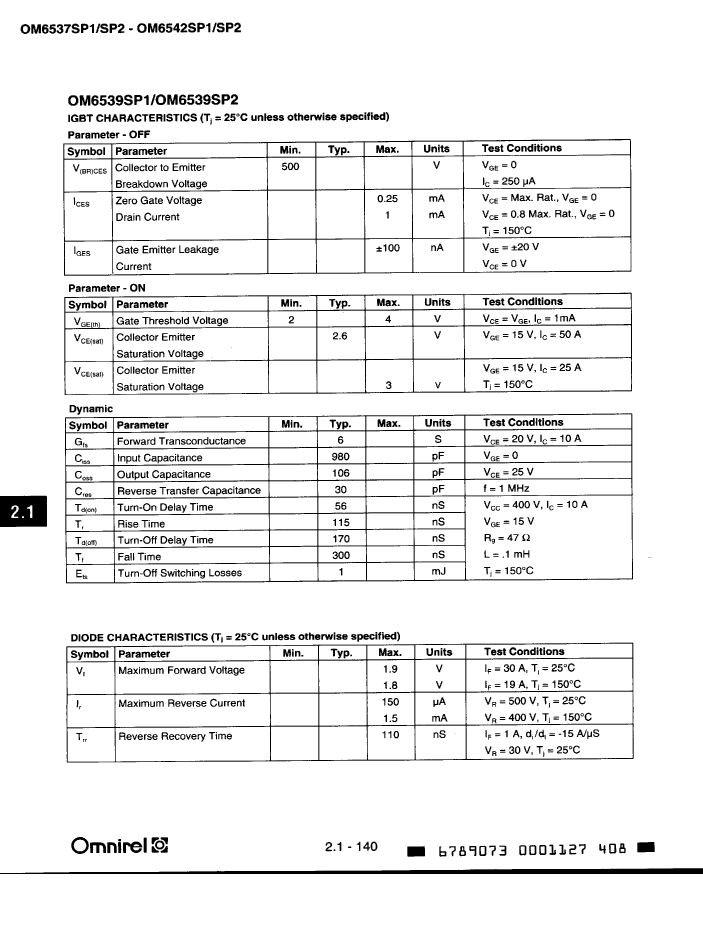

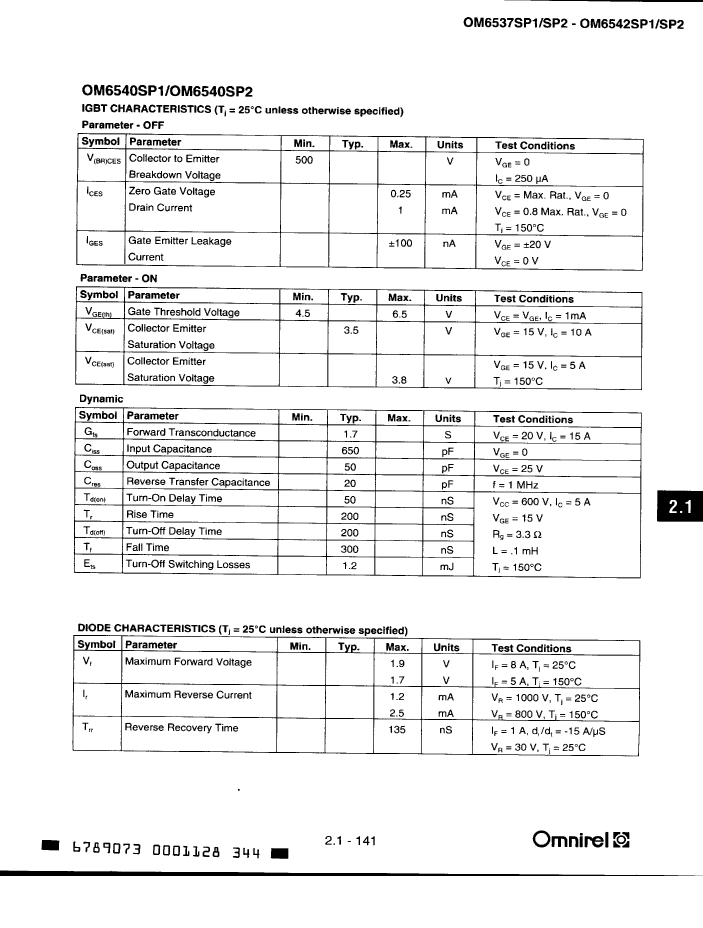

OM6537SP1 Overview

Insulated Gate Bipolar Transistor, 10A I(C), 500V V(BR)CES, N-Channel, CERAMIC PACKAGE-6

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Omnirel Corp.
package instruction	CERAMIC PACKAGE-6
Reach Compliance Code	unknown
Other features	ULTRA FAST
Shell connection	ISOLATED
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	500 V
Configuration	SINGLE WITH BUILT-IN ISOLATED DIODE
Gate emitter threshold voltage maximum	4 V
Gate-emitter maximum voltage	20 V
JESD-30 code	R-PSFM-T6
JESD-609 code	e0
Number of components	1
Number of terminals	6
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	35 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	POWER CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	350 ns
Nominal on time (ton)	37 ns

This Material Copyrighted By Its Respective Manufacturer
