M8R16FAJ080.000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> M8R16FAJ080.000

Preview

M8R16FAJ080.000: DescriptionOscillator, 80MHz Min, 125MHz Max, 80MHz Nom,; CategoryPassive components oscillator; File Size86KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M8R16FAJ080.000 Overview

Oscillator, 80MHz Min, 125MHz Max, 80MHz Nom,

M8R16FAJ080.000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	compliant
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	125 MHz
Minimum operating frequency	80 MHz
Nominal operating frequency	80 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
Encapsulate equivalent code	SMDIP4,.38,200
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	50 mA
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

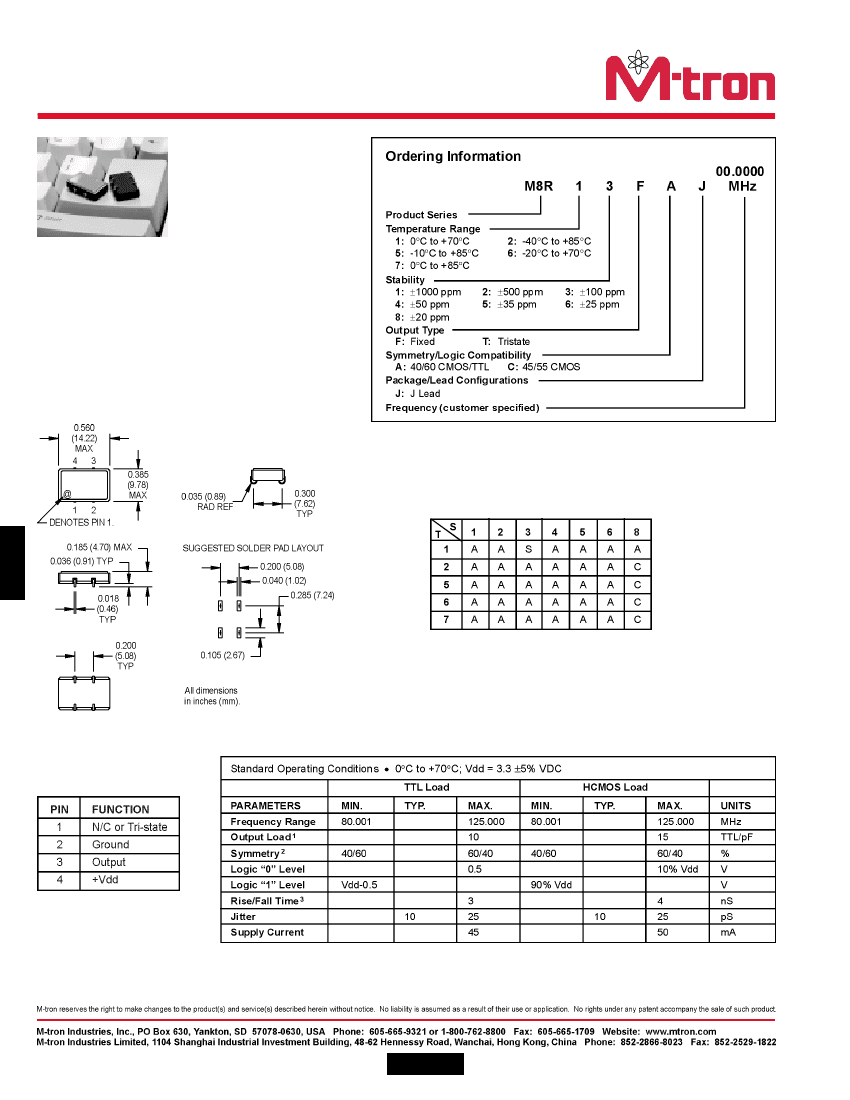

M8R Series 3.3 Volt HCMOS/TTL

Compatible Oscillators

SAMPLING

M8R Series 3.3 Volt HCMOS/TTL Compatible

Ceramic Package Surface Mount Oscillators

These are non-PLL based high frequency

oscillators (80.001 - 125.000 MHz), intended for

applications that require low phase jitter. Features

grounded lid for reduced EMI. This product is

available in both 5.0 V (M7R) and 3.3 V (M8R).

For frequencies 80.000 MHz and below, please

see the M8S series.

Available Stabilities vs. Temperature

A = Available

S = Standard

C = Consult Factory

Electrical Specifications

Pin Connections

Tri-state Control Logic

Pin 1 high or floating: clock signal output.

Pin 1 low: output disabled to high

impedance.

TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.

Symmetry is measured at 1.4 V with TTL load and at 50% Vdd with HCMOS load.

3

Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

See page 136, Figure 2 for suggested solder profile.

1

2

80
