MB86 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MB86

MB86: DescriptionBridge Rectifier Diode, 1 Phase, 8A, 600V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN; CategoryDiscrete semiconductor diode; File Size124KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MB86 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MB86	-	-	View	Buy Now

MB86 Overview

Bridge Rectifier Diode, 1 Phase, 8A, 600V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN

MB86 Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	S-CUFM-W4
Contacts	4
Manufacturer packaging code	BR-6
Reach Compliance Code	compliant
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-CUFM-W4
JESD-609 code	e0
Maximum non-repetitive peak forward current	125 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	8 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	UPPER

Preview

Download Datasheet

View All

21201 Itasca St.

Chatsworth, CA 91311

Phone: (818) 701-4933

Fax: (818) 701-4939

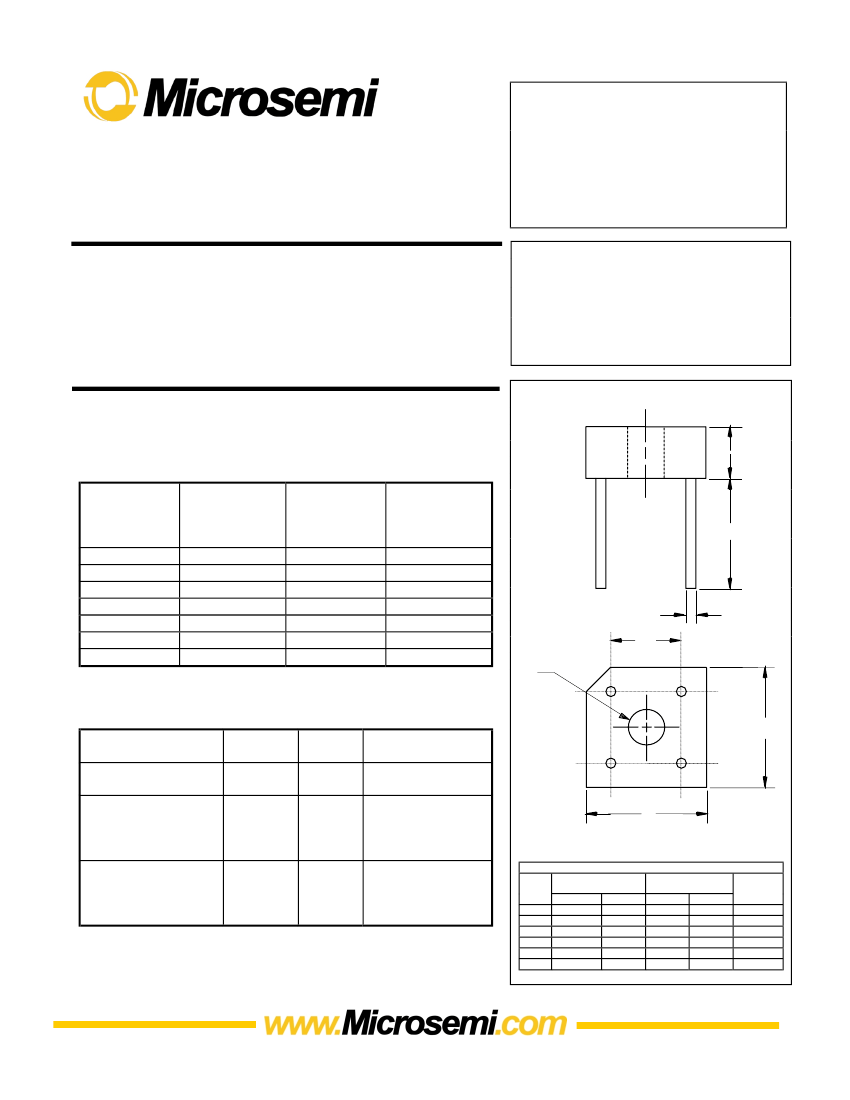

MB805

THRU

MB810

8 Amp Single Phase

Bridge Rectifier

50 to 1000 Volts

BR-6

Features

•

Mounting Hole For #6 Screw

Ceramic Case

Any Mounting Position

Surge Rating Of 125 Amps

Maximum Ratings

•

Operating Temperature: -55°C to +125°C

Storage Temperature: -55°C to +150°C

Maximum

Recurrent

Peak Reverse

Voltage

50V

100V

200V

400V

600V

800V

1000V

Maximum DC

Blocking

Voltage

50V

100V

200V

400V

600V

800V

1000V

Microsemi

Part Number

MB805

MB81

MB82

MB84

MB86

MB88

MB810

Maximum

RMS Voltage

35V

70V

140V

280V

420V

560V

700V

Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

Current

Peak Forward Surge

Current

Maximum Forward

Voltage Drop Per

Element

F(AV)

FSM

8.0A

125A

= 50°C

8.3ms, half sine

1.1V

= 4.0A per

element;

= 25°C*

INCHES

MIN

---

.405

.040

.145

Maximum DC

Reverse Current At

10µA

= 25°C

Rated DC Blocking

0.2mA T

= 100°C

Voltage

*Pulse test: Pulse width 300

µsec,

Duty cycle 1%

DIMENSIONS

MIN

---

10.30

1.00

3.70

DIM

MAX

.610

.250

.750

.444

---

MAX

15.50

6.33

19.20

11.30

---

NOTE

2PL

4PL/TYP

∅

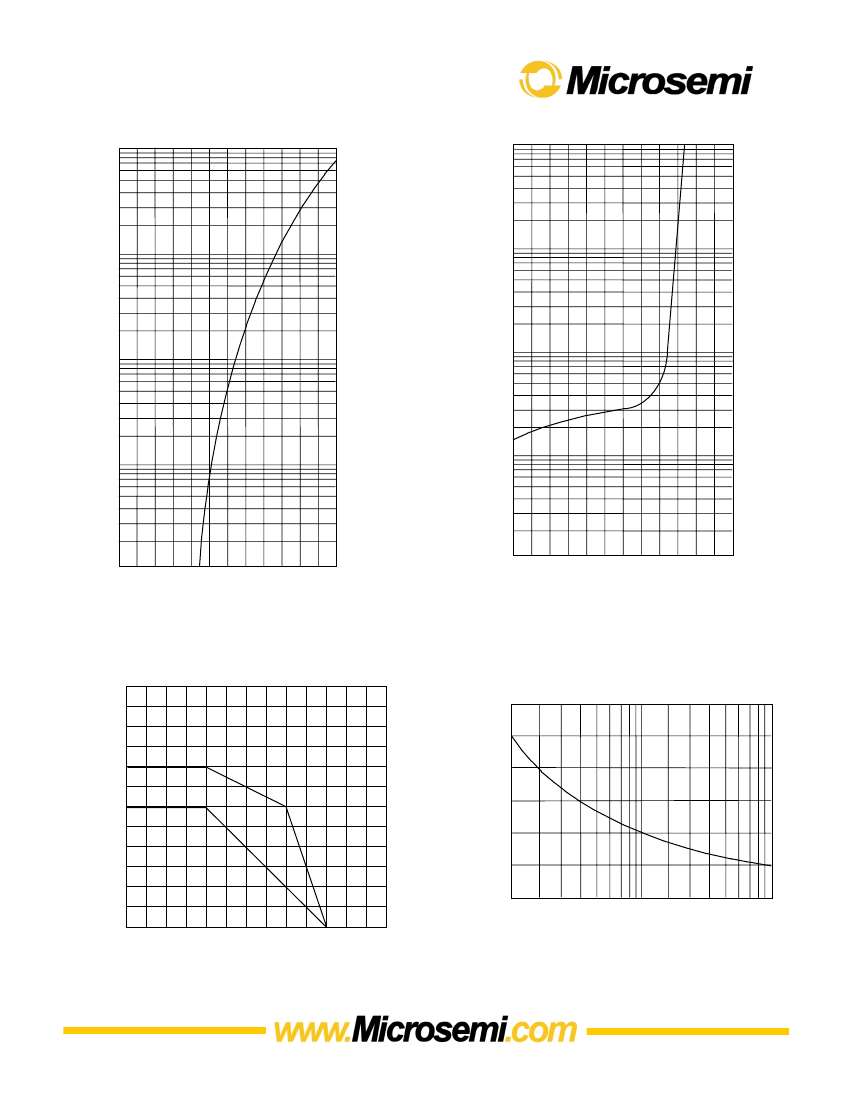

MB86 Related Products

	MB86	MB805	MB810	MB82	MB84	MB88	MB81
Description	Bridge Rectifier Diode, 1 Phase, 8A, 600V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 8A, 50V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 8A, 200V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 8A, 400V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 8A, 800V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN	Bridge Rectifier Diode, 1 Phase, 8A, 100V V(RRM), Silicon, CERAMIC, BR-6, 4 PIN
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
package instruction	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4	CERAMIC, BR-6, 4 PIN	S-CUFM-W4
Contacts	4	4	4	4	4	4	4
Manufacturer packaging code	BR-6	BR-6	BR-6	BR-6	BR-6	BR-6	BR-6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	not_compliant	compliant
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4	S-CUFM-W4
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A	125 A	125 A	125 A
Number of components	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	50 V	1000 V	200 V	400 V	800 V	100 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
