BA178M15FP-E1 datasheet, PDF - EEWORLD Datasheet

BA178M15FP-E1: DescriptionFixed Positive Standard Regulator, 15VBIPolar, PSFM3, TO-252, 3 PIN; CategoryPower/power management The power supply circuit; File Size574KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

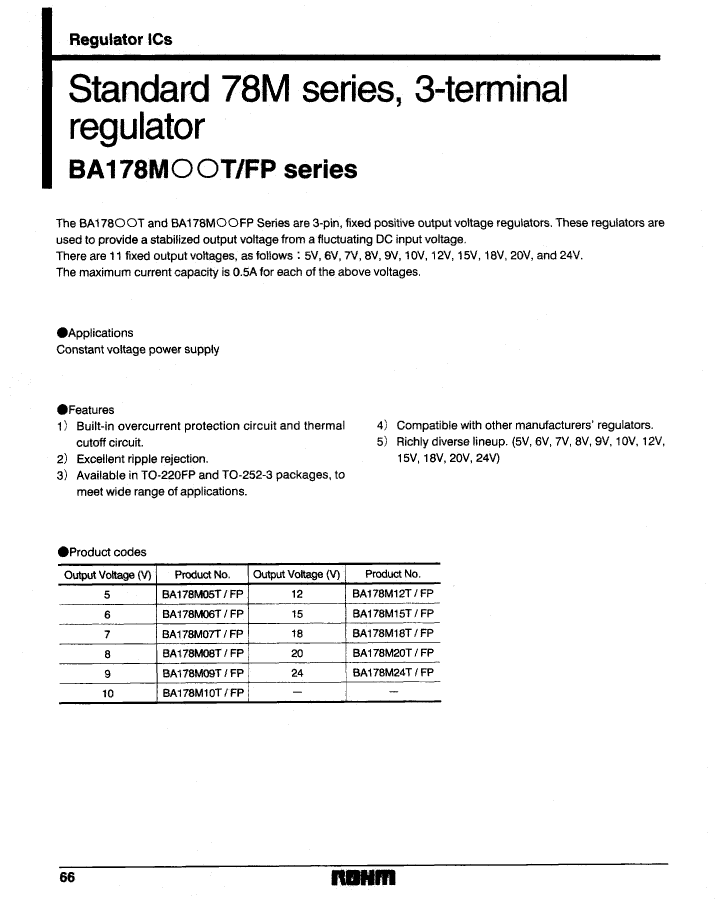

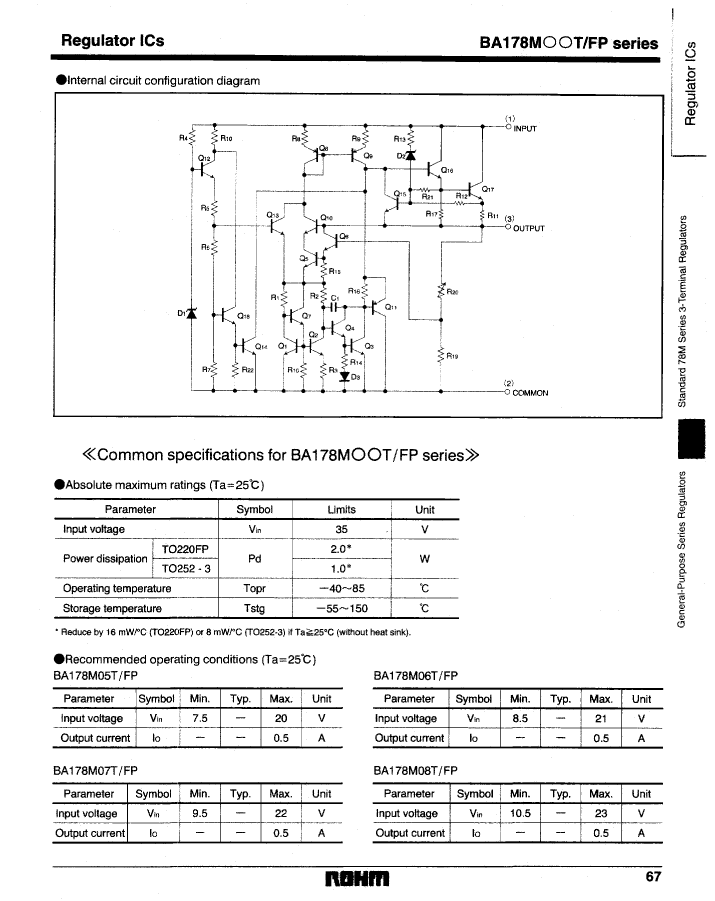

BA178M15FP-E1 Overview

Fixed Positive Standard Regulator, 15VBIPolar, PSFM3, TO-252, 3 PIN

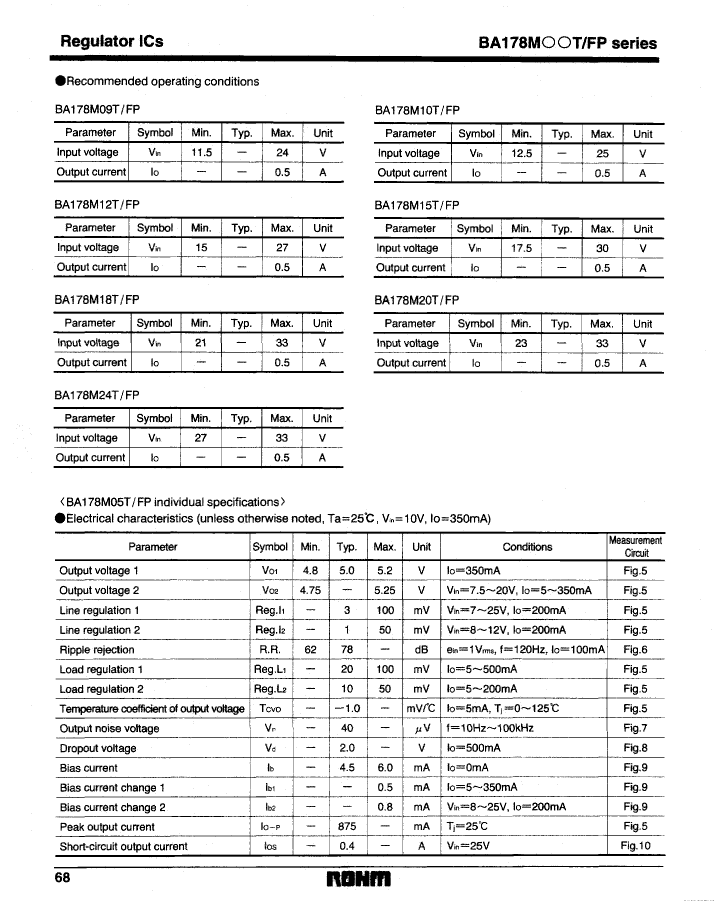

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	TO-252
package instruction	, SMSIP3H,.38,90TB
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	2 V
Maximum absolute input voltage	35 V
Maximum input voltage	30 V
Minimum input voltage	17.5 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e2
Maximum grid adjustment rate	0.1%
Maximum load regulation	0.3%
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.5 A
Maximum output voltage 1	15.6 V
Minimum output voltage 1	14.4 V
Nominal output voltage 1	15 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP3H,.38,90TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	THROUGH-HOLE
Terminal pitch	2.3 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	5%
