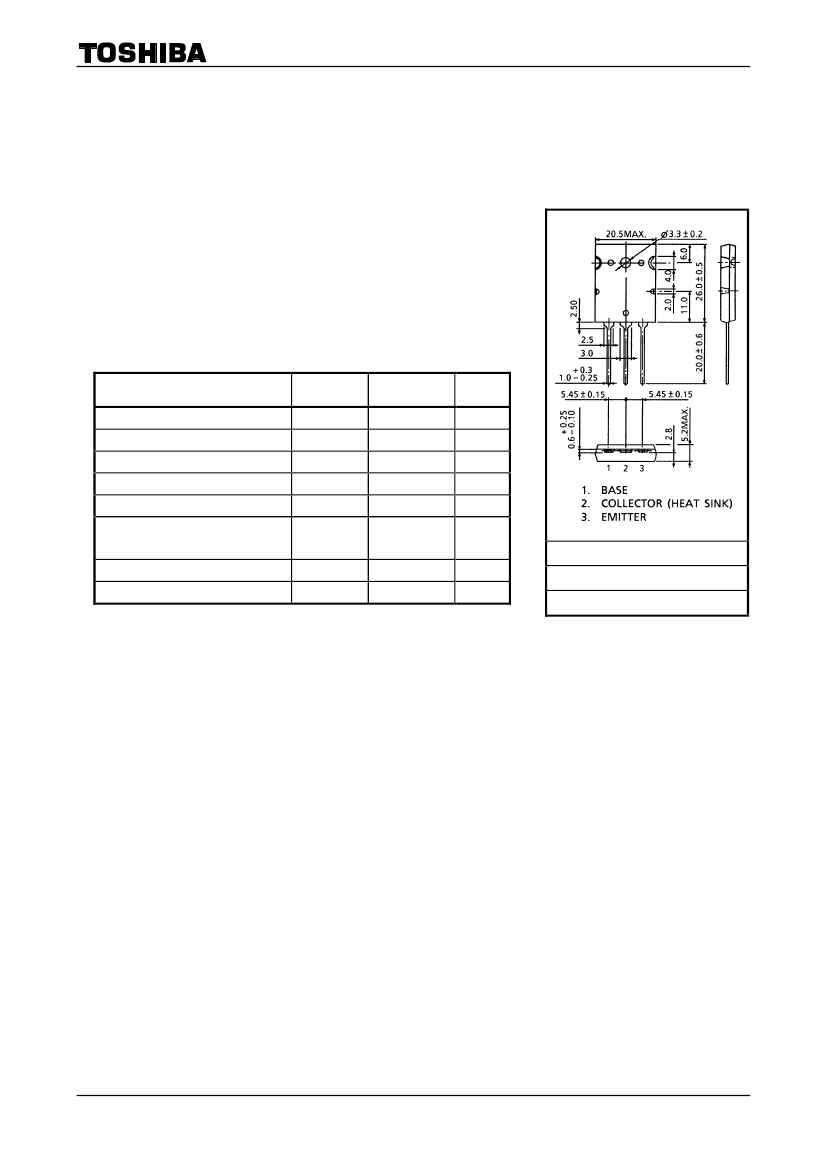

2SA1942
TOSHIBA Transistor
Silicon PNP Triple Diffused Type
2SA1942
Power Amplifier Applications
Unit: mm
•
•
•
High breakdown voltage: V
CEO
=
−160
V (min)
Complementary to 2SC5199
Recommended for 80-W high-fidelity audio frequency amplifier
output stage
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
(Tc = 25°C)
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
−160
−160
−5
−12
−1.2
120
150
−55
to 150
Unit
V
V
V
A
A
W
JEDEC
°C
°C
―
―
2-21F1A
JEITA
TOSHIBA
Note: Using continuously under heavy loads (e.g. the application of high
Weight: 9.75 g (typ.)
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are
within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1
2006-11-09
2SA1942
Electrical Characteristics
(Ta = 25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-emitter breakdown voltage
Symbol
I
CBO
I
EBO
V
(BR) CEO
h
FE (1)
DC current gain
(Note)
h
FE (2)
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
V
CE (sat)
V
BE
f
T
C
ob
Test Condition
V
CB
=
−160
V, I
E
= 0
V
EB
=
−5
V, I
C
= 0
I
C
=
−50
mA, I
B
= 0
V
CE
=
−5
V, I
C
=
−1
A
V
CE
=
−5
V, I
C
=
−6
A
I
C
=
−8
A, I
B
=
−0.8
A
V
CE
=
−5
V, I
C
=
−6
A
V
CE
=
−5
V, I
C
=
−1
A
V
CB
=
−10
V, I
E
= 0, f = 1 MHz
Min
―
―
−160
55
35
―
―
―
―
Typ.
―
―
―
―
80
−1.1
−1.0
30
320
Max
−5.0
−5.0
―
160
―
−2.5
−1.5
―
―
V
V
MHz
pF
Unit
μA
μA
V
Note: h
FE (1)
classification R: 55 to 110, O: 80 to 160
Marking
Part No. (or abbreviation code)
TOSHIBA
2SA1942
Lot No.
JAPAN
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
2
2006-11-09

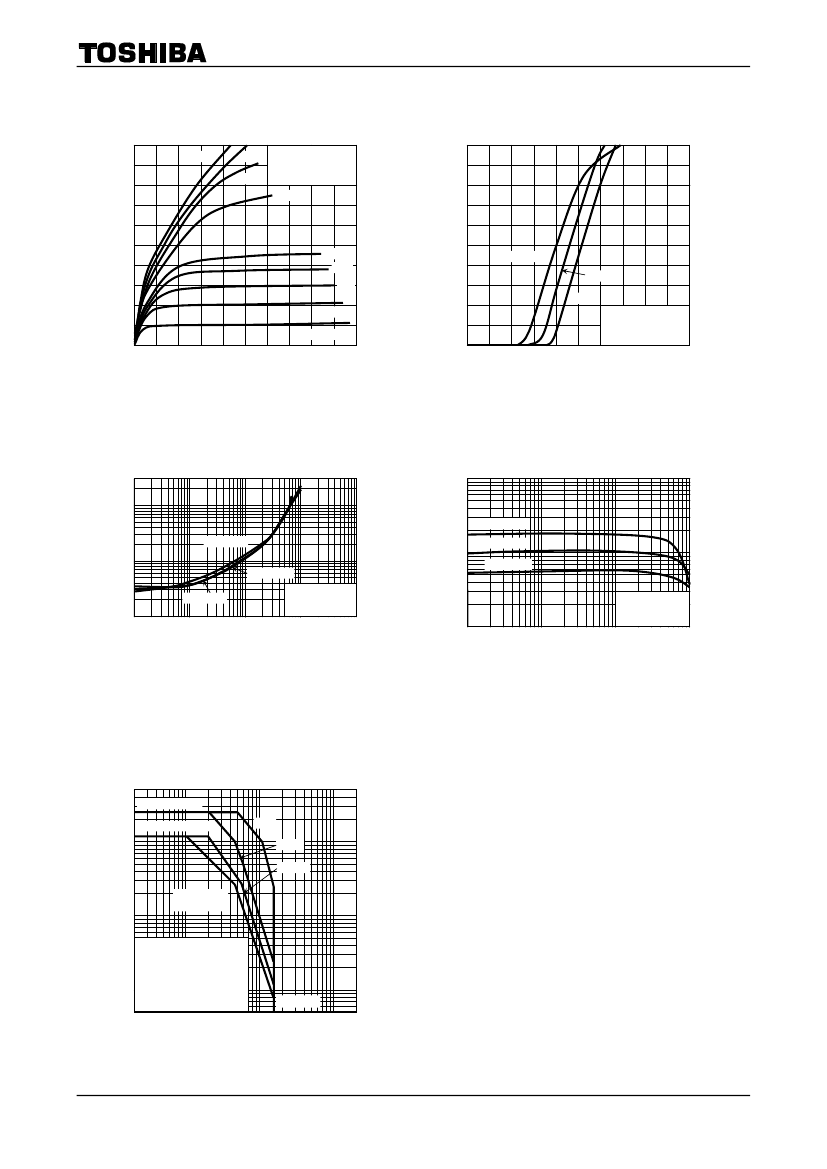

2SA1942
