BA6997FM-E2 datasheet, PDF - EEWORLD Datasheet

BA6997FM-E2: DescriptionConsumer Circuit, PDSO28, POWER, HSOP-28; CategoryOther integrated circuit (IC) Consumption circuit; File Size130KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6997FM-E2 Overview

Consumer Circuit, PDSO28, POWER, HSOP-28

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	POWER, HSOP-28
Contacts	28
Reach Compliance Code	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G28
JESD-609 code	e3/e2
length	18.5 mm
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum slew rate	14.5 mA
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm

Optical disc ICs

4-channel BTL driver for CD players

BA6997FP / BA6997FM

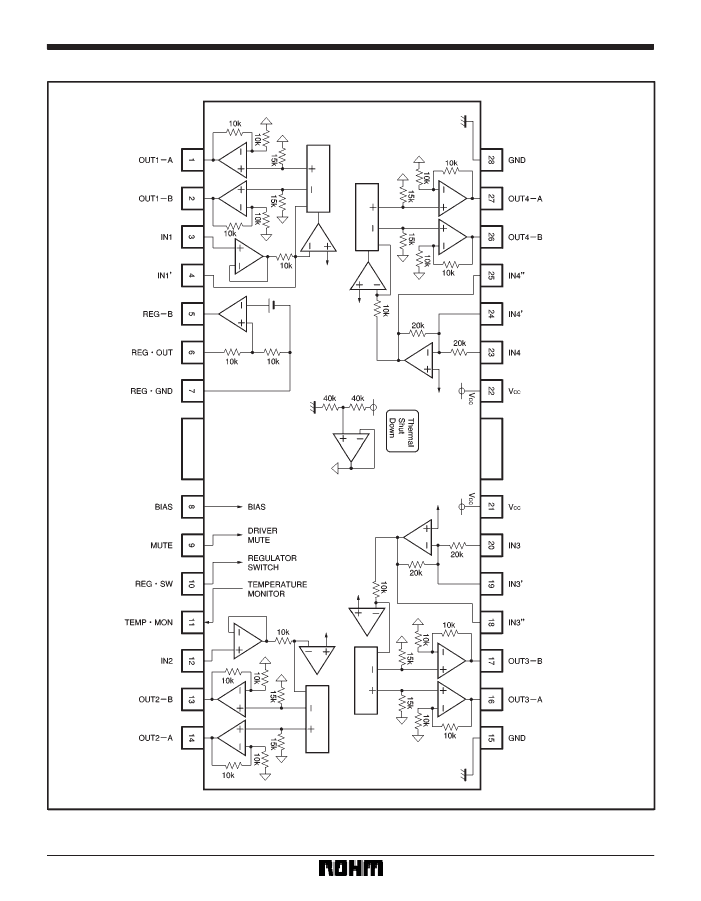

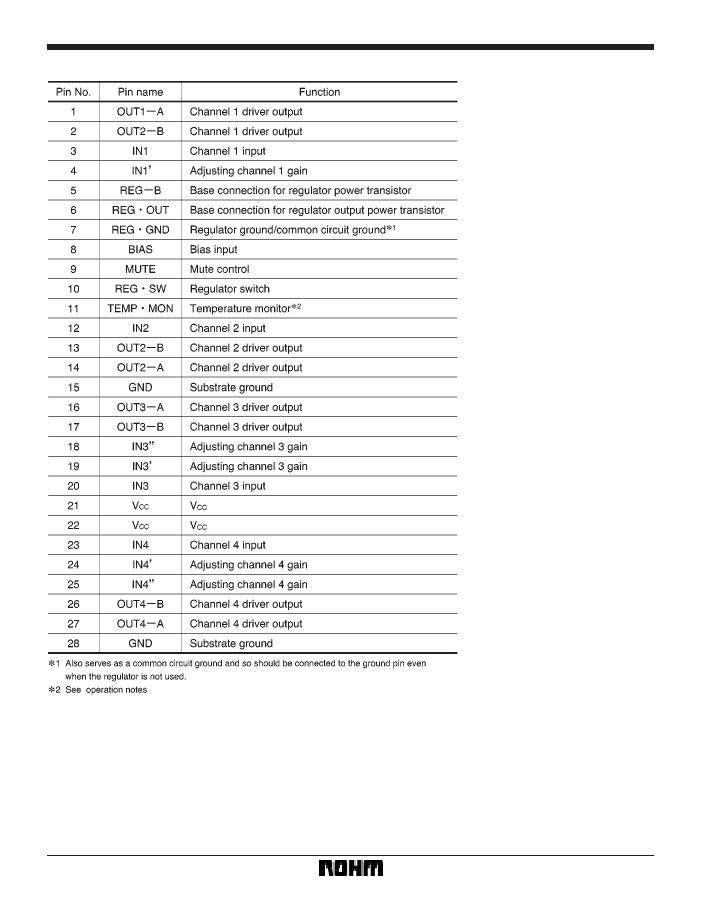

The BA6997FP and BA6997FM, both designed for CD players, have an internal 4-channel BTL driver and 5V regulator

(which requires attached PNP transistor), as well as switches for the 5V regulator and temperature monitor pins.

FApplications

CD players and other optical disc devices

FFeatures

1) 4-channel BTL driver for CD players.

2) Wide dynamic range.

3) Internal thermal shutdown circuit.

FAbsolute

maximum ratings (Ta = 25_C)

4) Internal level shift circuit, for a minimum of attached

components.

5) Internal 5V regular with switch.

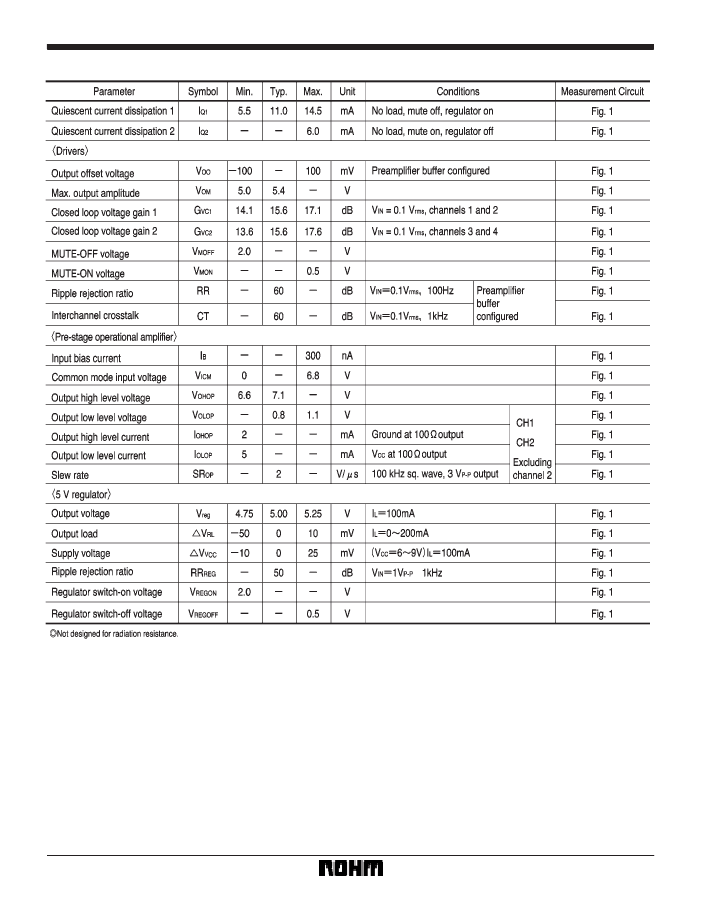

FRecommended

operating conditions (Ta = 25_C)

403

	BA6997FM-E2	BA6997FP-E2
Description	Consumer Circuit, PDSO28, POWER, HSOP-28	Consumer Circuit, PDSO28, POWER, HSOP-28
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC
package instruction	POWER, HSOP-28	POWER, HSOP-28
Contacts	28	28
Reach Compliance Code	compliant	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e3/e2	e3/e2
length	18.5 mm	18.5 mm
Number of terminals	28	28
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	HSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.41 mm	2.41 mm
Maximum slew rate	14.5 mA	14.5 mA
Maximum supply voltage (Vsup)	12 V	12 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	10
width	7.5 mm	7.5 mm
