BA6792FP-YE1 datasheet, PDF - EEWORLD Datasheet

BA6792FP-YE1: DescriptionMotion Control Electronic, BIPolar, PDSO32; CategoryOther integrated circuit (IC) The signal circuit; File Size124KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6792FP-YE1 Overview

Motion Control Electronic, BIPolar, PDSO32

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SSOP, SOP32,.3,32
Reach Compliance Code	compliant
JESD-30 code	R-PDSO-G32
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP32,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	8 V
Certification status	Not Qualified
Maximum supply current (Isup)	7.5 mA
Nominal supply voltage (Vsup)	8 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL

Optical disc ICs

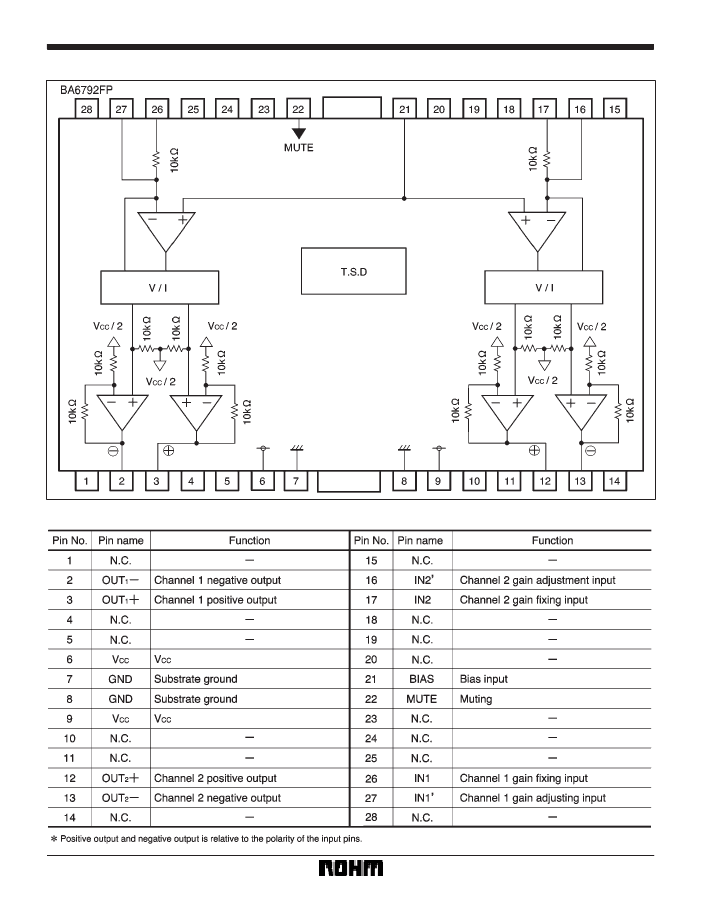

2-channel BTL driver for CD players

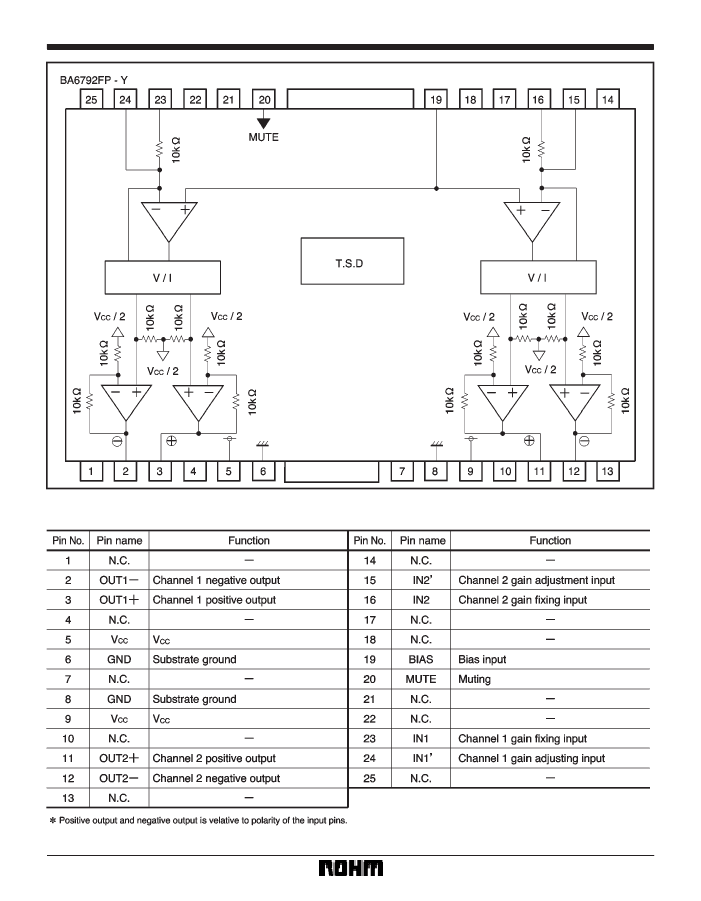

BA6792FP / BA6792FP-Y

The BA6792FP and BA6792FP-Y are 2-channel BTL drivers for CD player actuator drives. HSOP 28 and 25-pin pack-

ages allow for compact applications.

FApplications

CD players and CD-ROM drives

FFeatures

1) 2 channel dedicated BTL drivers.

2) HSOP 28 and 25-pin power packages for compact

applications.

FAbsolute

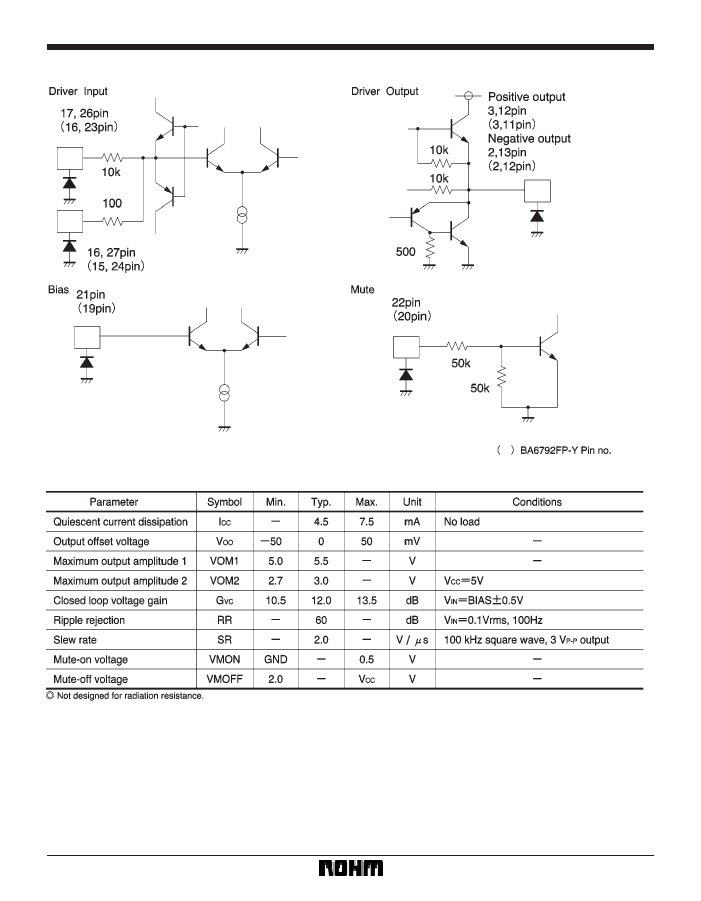

maximum ratings (Ta = 25_C)

3) Gain is adjustable with an attached resistor.

4) Internal thermal shutdown circuit.

FRecommended

operating conditions (Ta = 25_C)

202

	BA6792FP-YE1	BA6792FP-E2	BA6792FP-E1
Description	Motion Control Electronic, BIPolar, PDSO32	Motion Control Electronic, BIPolar, PDSO28	Motion Control Electronic, BIPolar, PDSO28
Is it Rohs certified?	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	SSOP, SOP32,.3,32	SSOP, SOP28/42,.4,32	SSOP, SOP28/42,.4,32
Reach Compliance Code	compliant	compliant	compliant
JESD-30 code	R-PDSO-G32	R-PDSO-G28	R-PDSO-G28
Number of terminals	32	28	28
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C	-35 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP
Encapsulate equivalent code	SOP32,.3,32	SOP28/42,.4,32	SOP28/42,.4,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
power supply	8 V	8 V	8 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	7.5 mA	7.5 mA	7.5 mA
Nominal supply voltage (Vsup)	8 V	8 V	8 V
surface mount	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
