DA227YFH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DA227YFH

DA227YFH: DescriptionRectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, EMD4, SC-75A, 4 PIN; CategoryDiscrete semiconductor diode; File Size787KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

DA227YFH Overview

Rectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, EMD4, SC-75A, 4 PIN

DA227YFH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	R-PDSO-F4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-F4
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.15 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	80 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

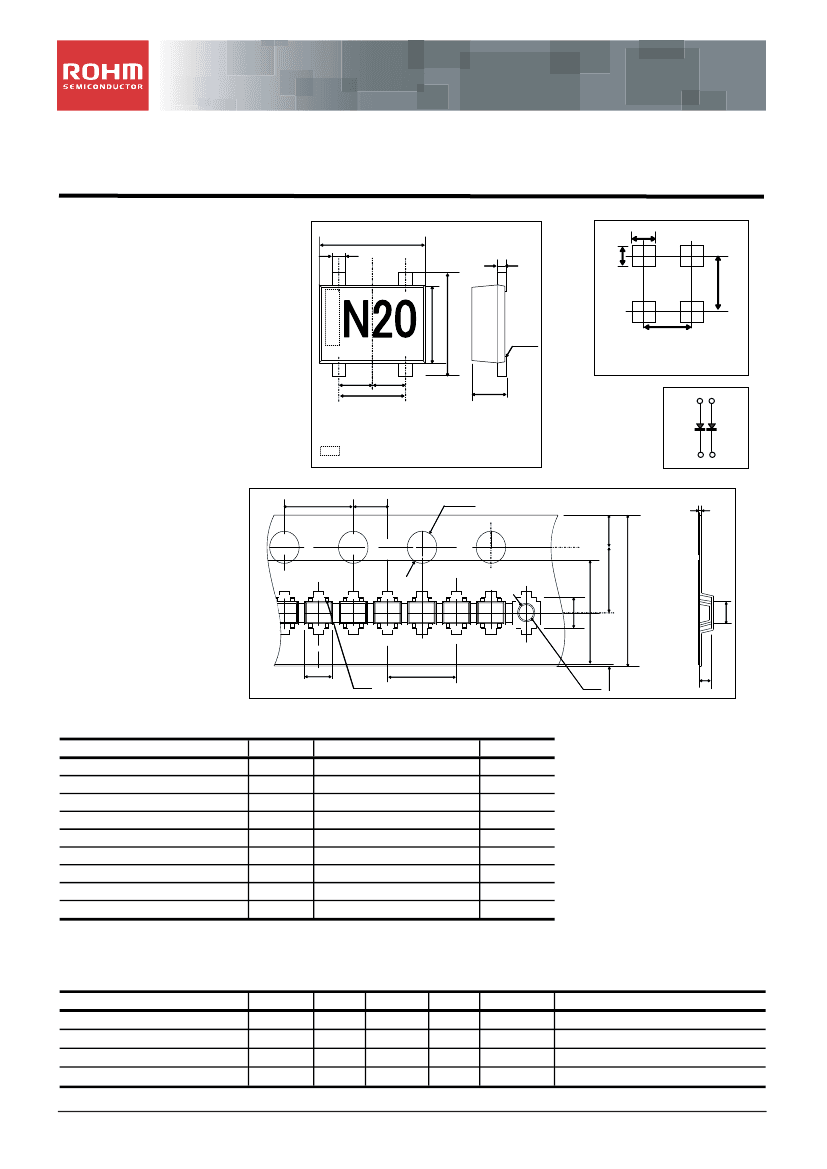

Data Sheet

AEC-Q101 Qualified

Switching Diode

DA227YFH

Applications

Ultra high speed switching

Dimensions

(Unit : mm)

1.6±0.1

0.22±0.05

0.13±0.05

(3)

Land

size figure

(Unit : mm)

0.5

0.45

(4)

Features

1) Ultra small mold type. (EMD4)

2) High reliability.

(1)

0.5

(2)

1.2±0.1

1.6±0.1

0½0.1

1.0

EMD4

Structure

0.5±0.05

Construction

Silicon epitaxial planar

1.0±0.1

ROHM : EMD4

JEITA : SC-75A Size

dot (year week factory)

Taping

specifications

(Unit : mm)

4.0±0.1

2.0±0.05

φ1.5±0.1

1.75±0.1

0.3±0.1

3.5±0.05

1.65±0.1

5.5±0.2

8.0±0.2

1.7±0.05

1.65±0.1

1PIN

4.0±0.1

φ0.8±0.1

0½0.1

0.65±0.1

Absolute

maximum ratings

(Ta=25°C)

Parameter

Symbol

Reverse voltage (repetitive peak)

Reverse voltage (DC)

Forward current (Single)

Average rectified forward current (Single)

surge

Surge current (t=1us) (Single)

Power dissipation (*1)

Junction temperature

Storage temperature

Tstg

Rated in slash put frequency

(*1) Pd=120mW when only 1 circuit is operating.

Limits

300

100

150

55

150

100

Unit

mW/Total

°C

MHz

CONDITION = Each terminal mounted on a recommended land pattern. (0.35x0.9mm)

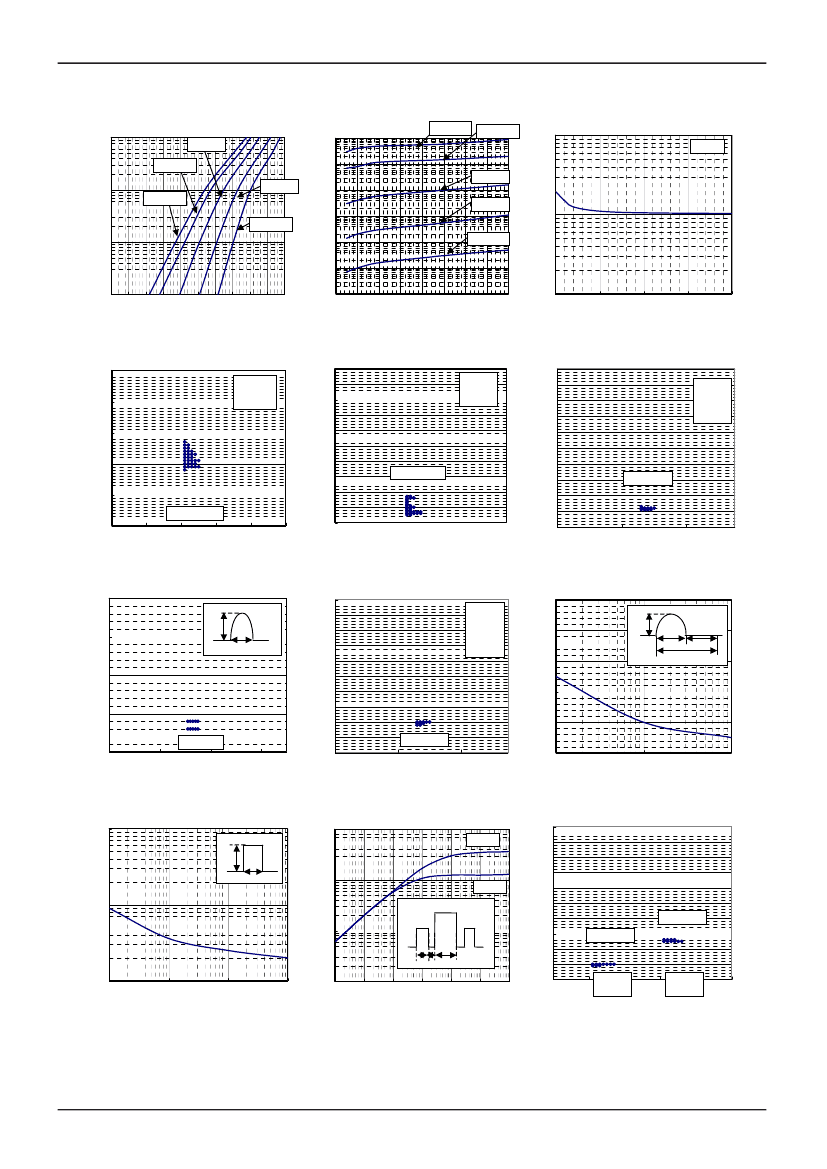

Electrical

characteristics

(Ta=25°C)

Parameter

Symbol

Forward voltage

Reverse current

Capacitance between terminals

Reverse recovery time

trr

Min.

Typ.

Max.

1.2

0.1

3.5

Unit

μA

=100mA

=70V

Conditions

=6V , f=1MHz

=6V , I

=5mA , RL=50

www.rohm.com

1/2

2011.06 - Rev.A

1.65±0.01

1.55
