D53DP50DP Overview

Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-8

D53DP50DP Parametric

Parameter Name	Attribute value
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-8
Reach Compliance Code	unknown
Other features	ZERO VOLTAGE CROSSING
Maximum insulation voltage	4000 V
Number of components	1
Maximum on-state current	50 A
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR

Preview

Download Datasheet

View All

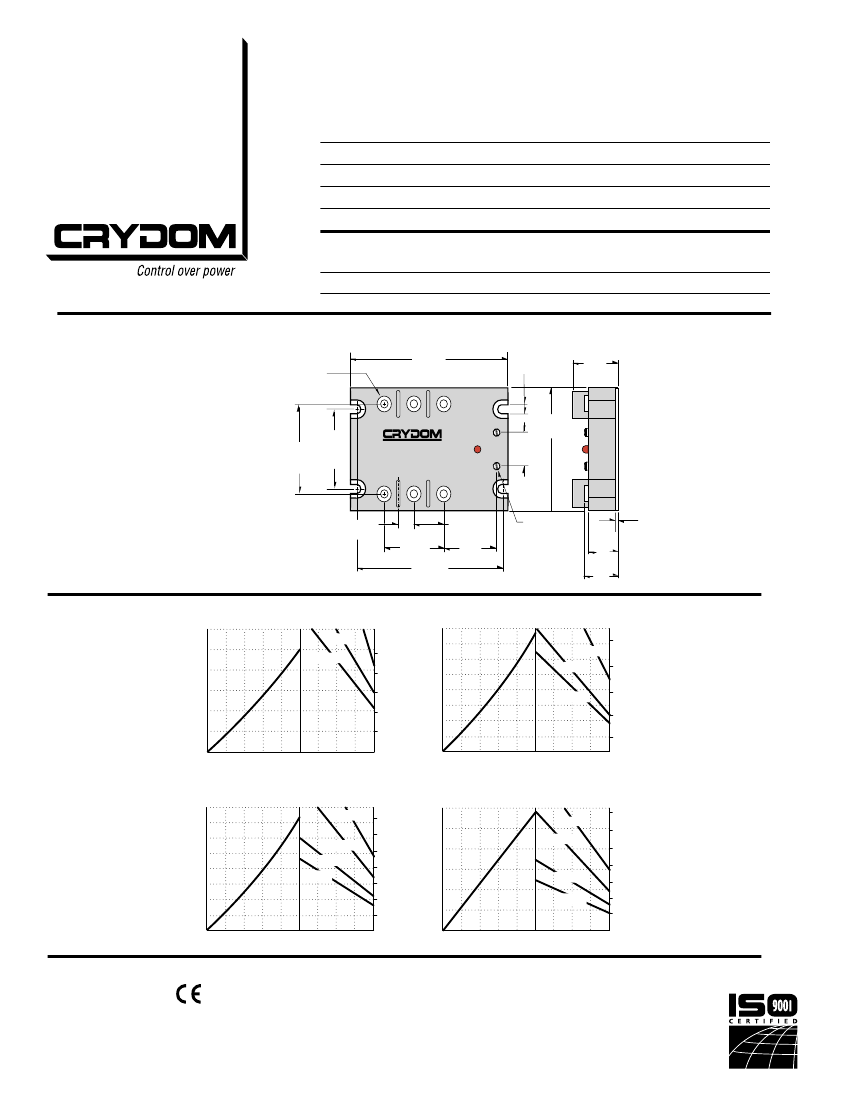

Series 53TP

25-50Amp • 240/480 Vac • 3 PHASE

• SCR O

utput

• LED Status Indicator

• Protective Cover Available

(Part No. KS300)

• Panel M

ount

Three-phase solid state relays switch up

to 530 Vrms directly to loads such as

motors, transformers, heating elements,

etc. Available with either AC or DC

input (coil) control in zero-voltage or

random turn-on switching versions.

Manufactured in Crydom’s ISO 9001

Certified facility for optimum product

performance and reliability.

• Integrated Overvoltage

Protection

Automatic

Self Turn-On (Suff

MODEL NUMBERS

D53TP25D

D53TP50D

A53TP25D

A53TP50D

OUTPUT SPECIFICATIONS

➀

Operating Voltage (47-63 Hz) [Vrms]

Load Current Range

➂

[Arms]

Transient Overvoltage [Vpk]

Max. Surge Current, (16.6ms) [Apk]

Max. On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (R

θJC

) [˚C/W]

Maximum I2 t for Fusing, (8.3 msec.) [A2sec]

Max. Off-State Leakage Current @ Rated Voltage [mArms]

Min. Off-State dv/dt @ Max. Rated Voltage [V/µsec]

➁

Max. Turn-On Time

Max. Turn-Off Time

Power Factor (Min.) with Max. Load

48-530

.05-25

1200

250

1.6

1.02

260

500

1/2 Cycle

0.5

48-530

.05-50

1200

625

1.6

.63

1620

500

1/2 Cycle

0.5

48-530

.05-25

1200

250

1.6

1.02

260

500

10.0 msec

40.0 msec

0.5

48-530

.05-50

1200

625

1.6

.63

1620

500

10.0 msec

40.0 msec

0.5

➃

INPUT SPECIFICATIONS

➀

Control Voltage Range

Max. Turn-On Voltage

Min. Turn-Off Voltage

Nominal Input Impedance

Typical Input Current

DC CONTROL

3-32 Vdc

3.0 Vdc

1.0 Vdc

450 Ohms

10mA @ 5 Vdc

AC CONTROL

90-280 Vrms (60Hz)

90 Vrms

10 Vrms

54.8k Ohms

2.2mA @ 120 Vrms, 4.4mA @ 240 Vrms

GENERAL NOTES

notice.

➀

All parameters at 25ºC and per section unless otherwise specified.

➁

Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1

➂

Heat sinking required, for derating curves see page 2.

➃

Turn-on time for random turn-on versions is 0.02 msec (DC Control Models).

FastFax Document No.161

SERIES53TP.

REV. 011602

PAGE 1 OF 2

For recommended applications and more information contact:

USA: Sales Support

(877) 502-5500

Tech Support

(877) 702-7700

FAX

(619) 710-8540

Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154

Email:

sales@crydom.com

WEB SITE:

http://www.crydom.com

UK:

+44 (0)1202 365070 •

FAX

+44 (0)1202 365090 Crydom International Ltd., 7 Cobham

Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE,

Email:

intsales@crydom.com.

GERMANY:

+49 (0)180 3000 506
