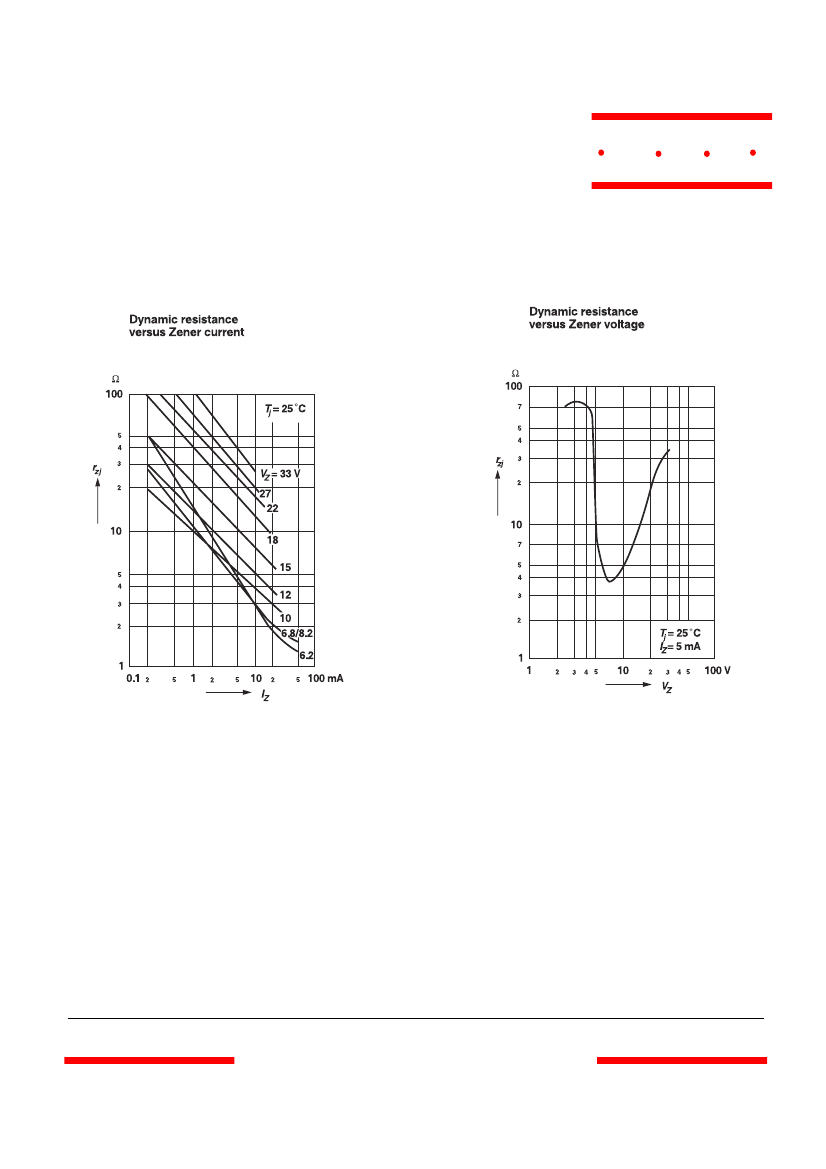

BZX55C2V0
THRU
BZX55C100
500 mWatt
Zener Diode
2.0V to
100
Volts
Features
•
•
•
Silicon Planar Power Zener Diodes
Glass Package
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)
Moisture Sensitivity: Level 1
•
Maximum Ratings
Symbol
P
D
R
JA
T
J
T
STG
Rating
Power dissipation
Thermal Resistance Junction to Ambient Air
Junction Temperature
Storage Temperature Range
Rating
500
(2)
350
(2)
-65 to +175
-65 to +175
Unit
mW
O
C/W
O
C
O
C

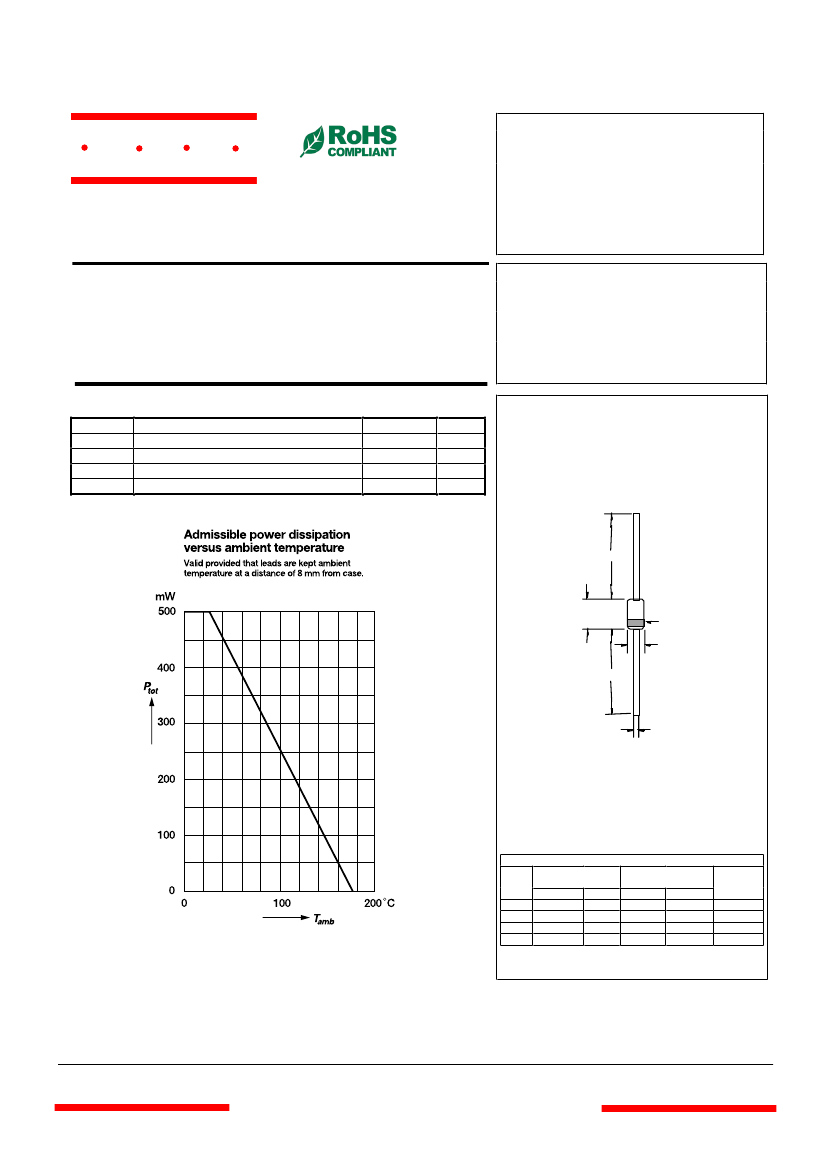

DO-35 GLASS
D
A
Cathode
Mark
B
D
C
DIMENSIONS
INCHES
MIN
---
---
---
1.000
MM
MIN
---
---
---
25.40
DIM
A
B
C
D
MAX
.166
.079
.020
---
MAX
4.2
2.00
.52
---
NOTE
Note:
1. Lead in Glass Exemption Applied, see EU Directive Annex 5.
2.
Valid provided that leads at a distance of 3/8" from case are kept at
ambient temperature.
www.mccsemi.com
Revision:
A
1 of 4
2011/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Part Number-TP
Part Number-AP
Part Number-BP
Tape&Reel:
10Kpcs/Reel
Ammo Packing: 5Kpcs/Ammo Box
Bulk:
100Kpcs/Carton
