DB586-XS: DescriptionBase Station/Broadcast Transmission Antenna, 806MHz Min, 901MHz Max, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size101KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

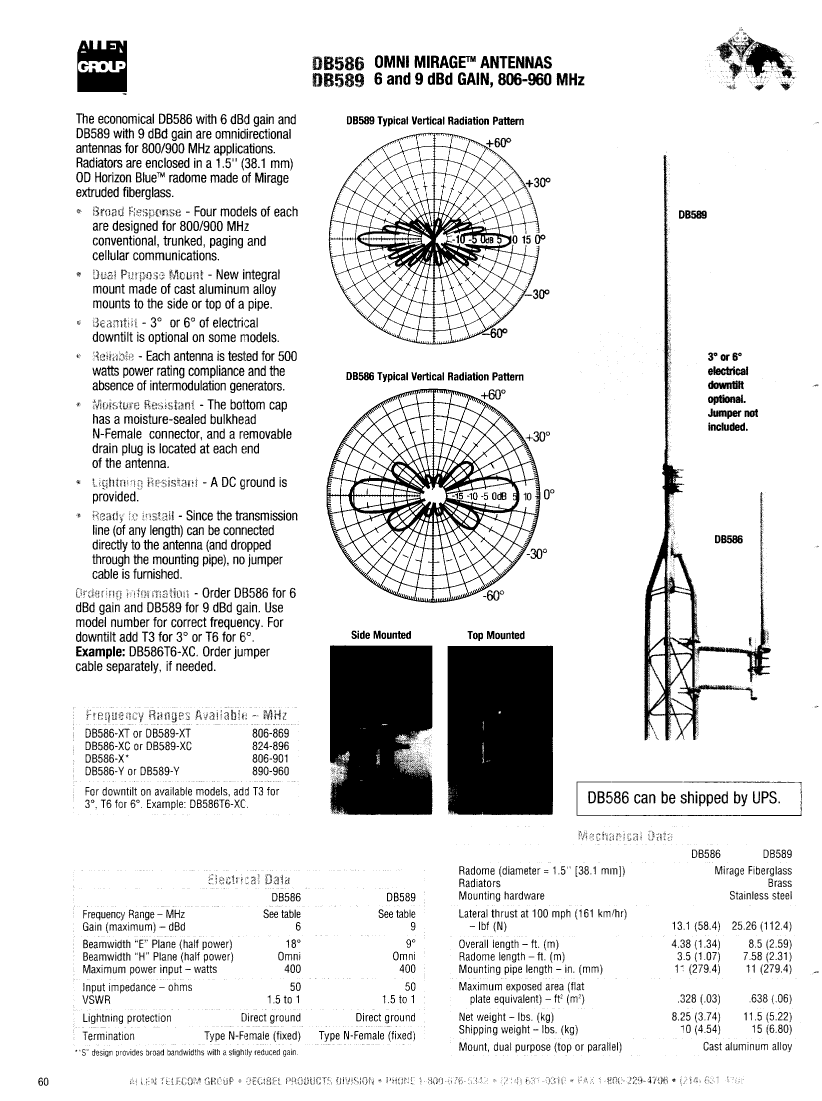

DB586-XS Overview

Base Station/Broadcast Transmission Antenna, 806MHz Min, 901MHz Max, 360deg 3dB Beamwidth

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Other features	UPS SHIPPABLE
application	CELLULAR
Beam Width-E	18 deg
Beamwidth-H	360 deg
Characteristic impedance	50 Ω
Omnidirectional	YES
Maximum operating frequency	901 MHz
Minimum operating frequency	806 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	400 W
Maximum voltage standing wave ratio	1.5

	DB586-XS	DB586T3-XS
Description	Base Station/Broadcast Transmission Antenna, 806MHz Min, 901MHz Max, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 806MHz Min, 901MHz Max, 360deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown
Other features	UPS SHIPPABLE	UPS SHIPPABLE
application	CELLULAR	CELLULAR
Beam Width-E	18 deg	18 deg
Beamwidth-H	360 deg	360 deg
Characteristic impedance	50 Ω	50 Ω
Omnidirectional	YES	YES
Maximum operating frequency	901 MHz	901 MHz
Minimum operating frequency	806 MHz	806 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	400 W	400 W
Maximum voltage standing wave ratio	1.5	1.5
