DMG-10B-300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DMG-10B-300

DMG-10B-300: Description10MHz - 600MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9dB CONVERSION LOSS-MAX, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size103KB，1 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com; Environmental Compliance

Download Datasheet Parametric View All

DMG-10B-300 Overview

10MHz - 600MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9dB CONVERSION LOSS-MAX, 4 PIN

DMG-10B-300 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Interpoint （ Crane Aerospace & Electronics ）
package instruction	FL4,.38,300
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
Maximum frequency conversion loss	9 dB
Maximum input power (CW)	29.54 dBm
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	600 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	FL4,.38,300
RF/Microwave Device Types	DOUBLE BALANCED
surface mount	YES

Preview

Download Datasheet

View All

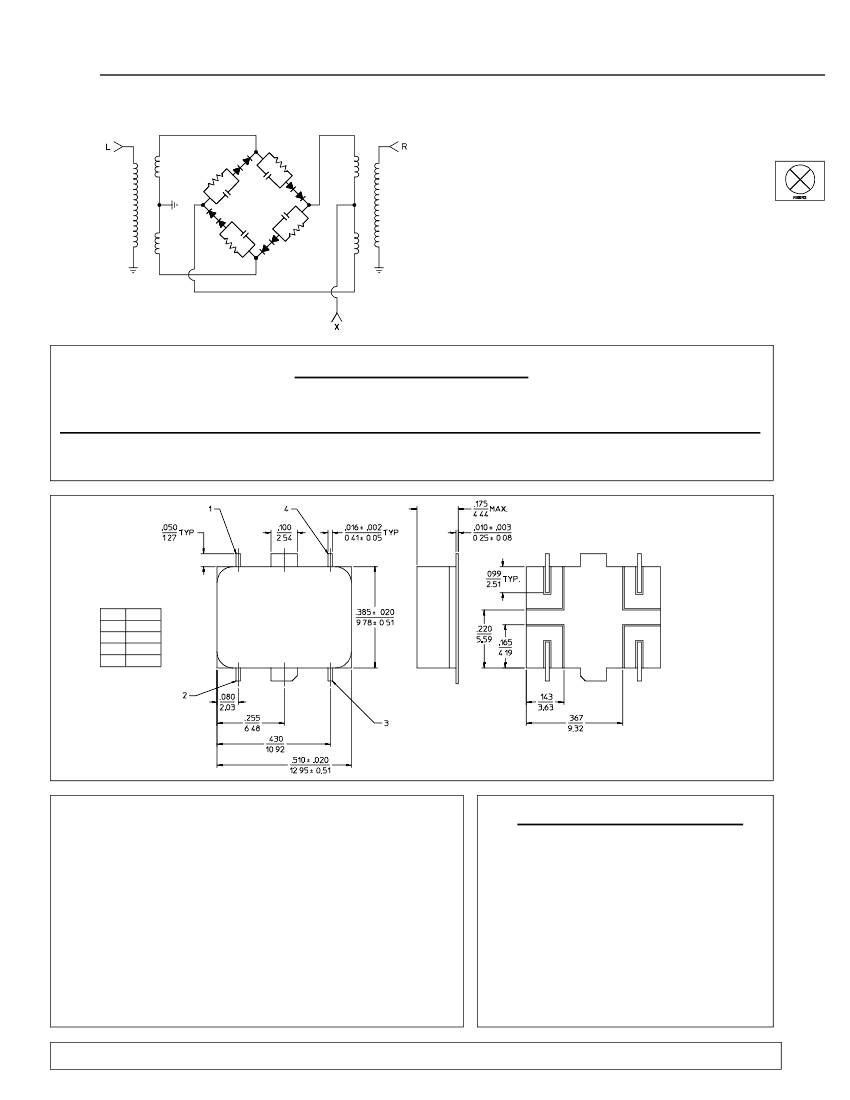

DMG-10B-300

DOUBLE BALANCED MIXER

10 to 600 MHz / + 20 to + 27 dBm LO / + 30 dBm Third Order Intercept / Class III Mixer / SMD

PRINCIPAL SPECIFICATIONS

Model

Number

RF/LO

Freq.,

MHz

Operating

Range,

MHz

10 - 300

10 - 600

Frequency,

MHz

10 - 200

1 - 500

Conversion

Loss, dB,

Max. Typ.

7.5

9.0

6.0

7.0

Port Isolation, Min.

L-R

L-X

R-X

Polarity

Sense

Pos.

DMG-10B-300 10 - 600

All specifications are as measured in a 50Ω system, at nominal LO power, in a down converter application.

Package Outline

Tab

Func.

R (RF)

X (IF)

Ground

L (LO)

NOTES:

1. Tolerance on 3 place decimals

.010(.25) except as noted.

2. Dimensions in inches over millimeters.

3. All unmarked pins are case ground.

General Notes:

1. The DMG-10B-300 Double Balanced Mixer covers the

frequency range of 10 to 600 MHz using a Class III ring

modulator with integral series RC networks. This yields a mixer

with high third order intercept points over a wide range of LO

power.

2. Merrimac offers a broad selection Double Balanced Mixers

ideal for a variety of signal processing functions with frequencies

ranging from 20 kHz to 20 GHz and for applications from routine

to very special.

3. Merrimac mixers comply with MIL-M-28837 and may be

supplied screened for compliance with additional specifications

for military and space applications requiring the highest

reliability.

29Feb96

GENERAL SPECIFICATIONS

LO Drive:

Impedance:

Noise Figure:

+25 dBm nom.

Ω

nom.

Within

±1

dB of

Conversion Loss

1 dB Comp. Point:

+20 dBm input typ.

Input Intercept Point:

+30 dBm typ.

IF Rolloff below 1 MHz: 1 dB nom. @ DC

Maximum Input Power: 900 mW @ 25°C

(derate linearly to 0 mW @ 125°C)

DC Offset Voltage:

8 mV typ.

Weight:

0.1 oz (2.8 g)

Operating Temperature: -- 55° to +85°C

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
