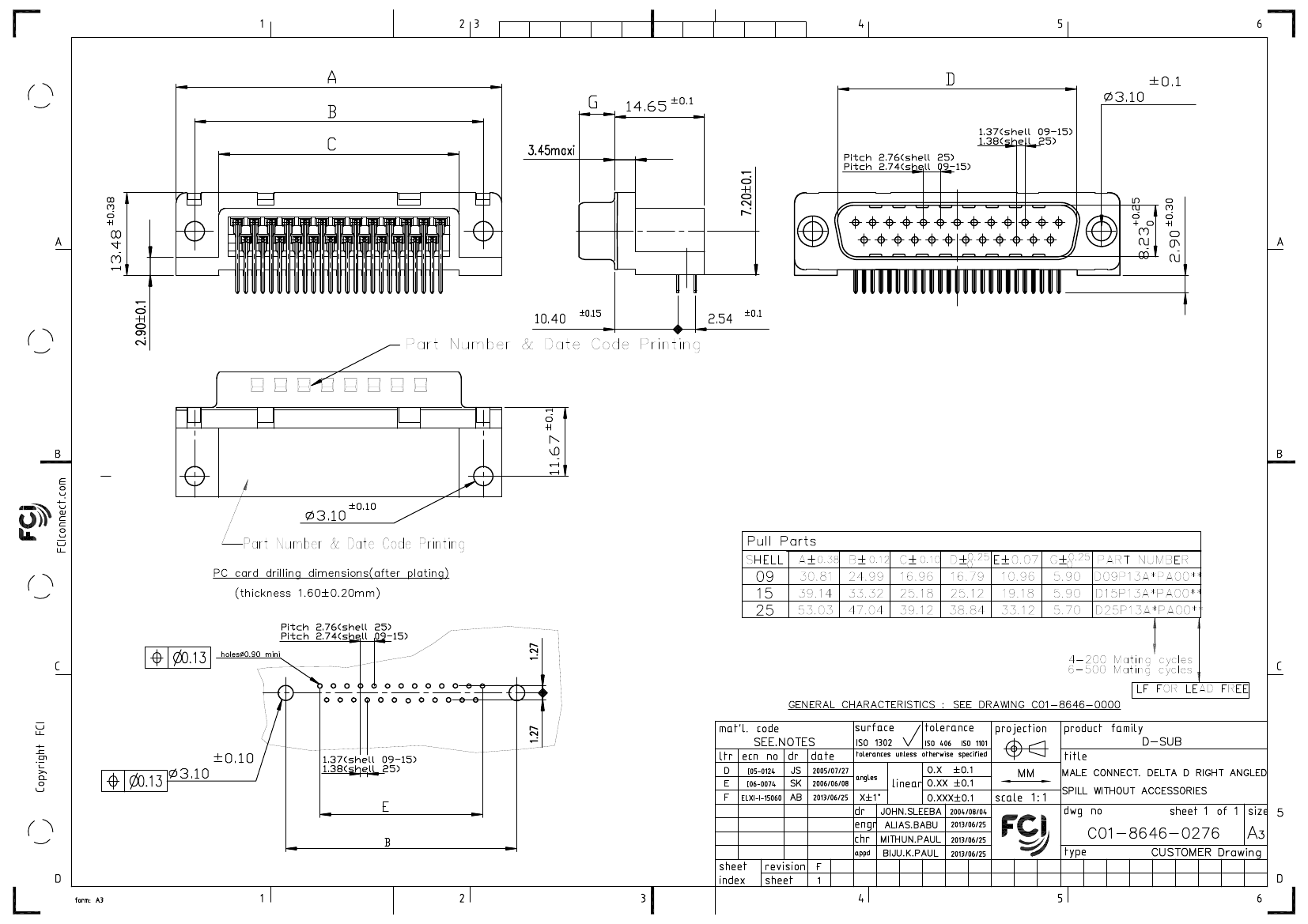

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| body width | 0.531 inch |
| subject depth | 0.577 inch |
| body length | 2.088 inch |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN/LEAD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Manufacturer's serial number | D25P13A6PA00 |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN/LEAD OVER COPPER |
| Housing size | 3/B |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| Evacuation force-minimum value | .3058 N |
| D25P13A6PA00 | D09P13A4PA00 | D15P13A4PA00 | D25P13A4PA00 | D15P13A6PA00 | D09P13A6PA00 | |
|---|---|---|---|---|---|---|
| Description | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Locking | D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Locking | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking | D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Locking | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Locking |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| body width | 0.531 inch | 0.531 inch | 0.531 inch | 0.531 inch | 0.531 inch | 0.531 inch |
| subject depth | 0.577 inch | 0.577 inch | 0.577 inch | 0.577 inch | 0.577 inch | 0.577 inch |
| body length | 2.088 inch | 1.213 inch | 1.541 inch | 2.088 inch | 1.541 inch | 1.213 inch |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS | BRASS | BRASS | BRASS |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V |
| empty shell | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | D25P13A6PA00 | D09P13A4PA00 | D15P13A4PA00 | D25P13A4PA00 | D15P13A6PA00 | D09P13A6PA00 |
| Plug contact pitch | 0.109 inch | 0.108 inch | 0.108 inch | 0.109 inch | 0.108 inch | 0.108 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL | BOARD | BOARD |
| PCB row number | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 30u inch | FLASH inch | FLASH inch | FLASH inch | 30u inch | 30u inch |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN/LEAD OVER COPPER | TIN/LEAD OVER COPPER | TIN/LEAD OVER COPPER | TIN/LEAD OVER COPPER | TIN/LEAD OVER COPPER | TIN/LEAD OVER COPPER |
| Housing size | 3/B | 1/E | 2/A | 3/B | 2/A | 1/E |
| Terminal length | 0.114 inch | 0.114 inch | 0.114 inch | 0.114 inch | 0.114 inch | 0.114 inch |
| Terminal pitch | 2.7686 mm | 2.7432 mm | 2.7432 mm | 2.7686 mm | 2.7432 mm | 2.7432 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 25 | 9 | 15 | 25 | 15 | 9 |
| Evacuation force-minimum value | .3058 N | .3058 N | .3058 N | .3058 N | .3058 N | .3058 N |
