Part Number

Search

D37P13A6PA00

Description
D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking
CategoryThe connector    The connector
File Size64KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

D37P13A6PA00 Overview

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking

D37P13A6PA00 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
body width0.531 inch
subject depth0.577 inch
body length2.729 inch
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1400VAC V
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force4.8928 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial numberD37P13A6PA00
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN/LEAD OVER COPPER
Housing size4/C
Terminal length0.114 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts37
Evacuation force-minimum value.3058 N

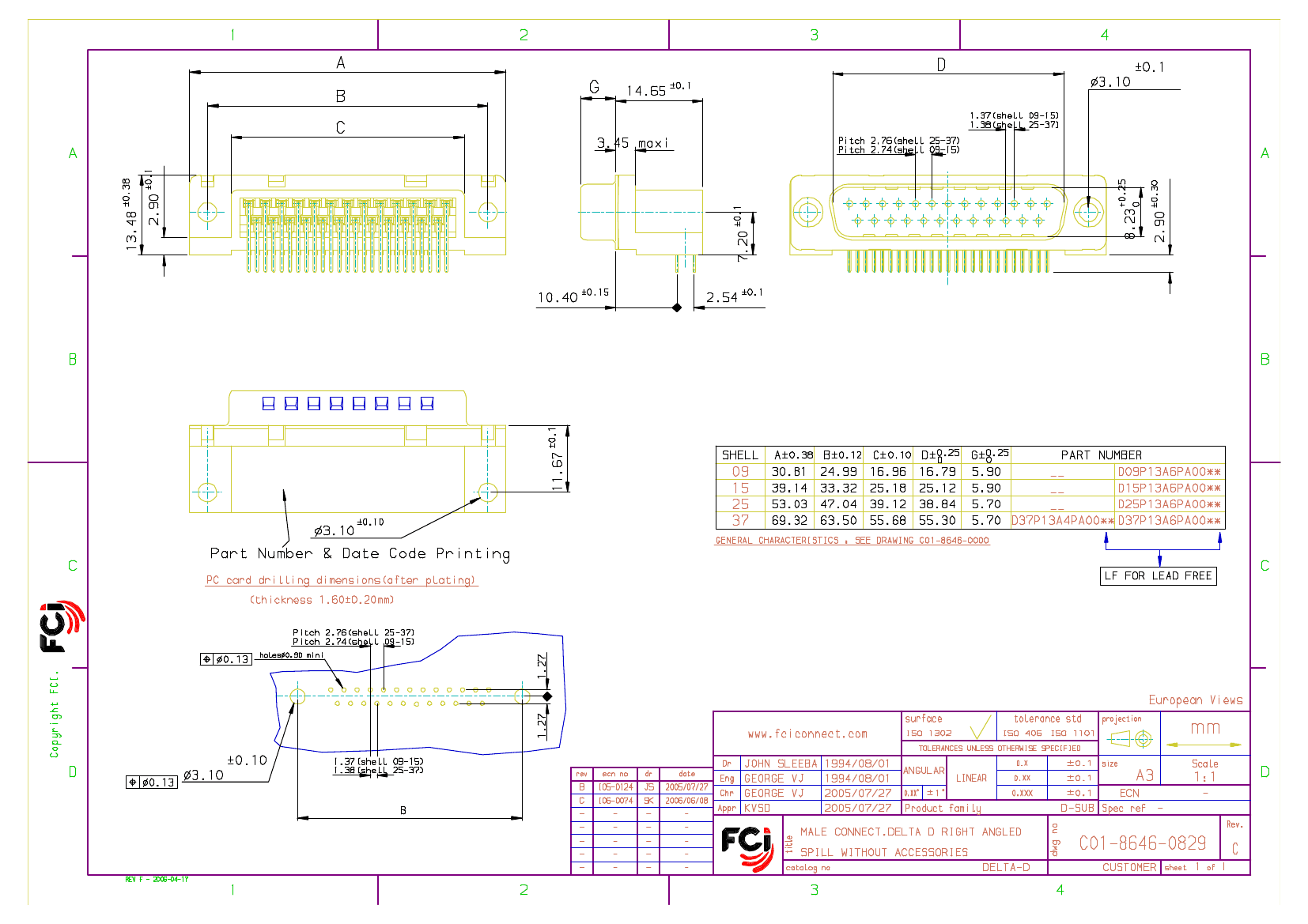

PDM: Rev:C
STATUS:
Released
Printed: Jan 18, 2011
.

D37P13A6PA00 Related Products

D37P13A6PA00 D37P13A4PA00
Description D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
body width 0.531 inch 0.531 inch
subject depth 0.577 inch 0.577 inch
body length 2.729 inch 2.729 inch
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated TIN/LEAD OVER NICKEL TIN/LEAD OVER NICKEL
Contact point gender MALE MALE
Contact material BRASS BRASS
contact mode STAGGERED STAGGERED
Contact resistance 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 1400VAC V 1400VAC V
empty shell NO NO
Filter function NO NO
IEC compliance NO NO
maximum insertion force 4.8928 N 4.8928 N
Insulation resistance 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
MIL compliance NO NO
Manufacturer's serial number D37P13A6PA00 D37P13A4PA00
Plug contact pitch 0.109 inch 0.109 inch
Match contact row spacing 0.112 inch 0.112 inch
Mixed contacts NO NO
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern STAGGERED STAGGERED
PCB contact row spacing 2.54 mm 2.54 mm
Plating thickness 30u inch FLASH inch
Rated current (signal) 5 A 5 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Shell surface TIN/LEAD OVER COPPER TIN/LEAD OVER COPPER
Housing size 4/C 4/C
Terminal length 0.114 inch 0.114 inch
Terminal pitch 2.7686 mm 2.7686 mm
Termination type SOLDER SOLDER
Total number of contacts 37 37
Evacuation force-minimum value .3058 N .3058 N
