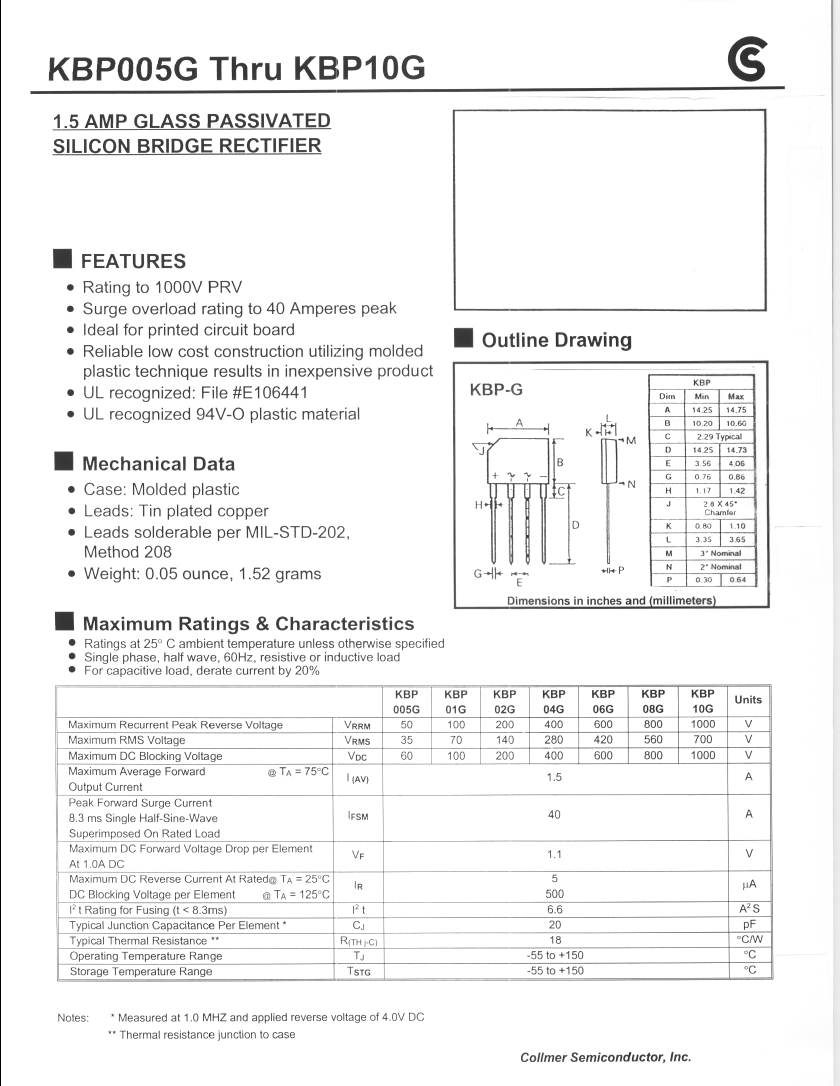

KBP005G datasheet, PDF - EEWORLD Datasheet

KBP005G: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, 50V V(RRM), Silicon, PLASTIC, KBP-G, 4 PIN; CategoryDiscrete semiconductor diode; File Size514KB，1 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

KBP005G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KBP005G	-	-	View	Buy Now

Bridge Rectifier Diode, 1 Phase, 1.5A, 50V V(RRM), Silicon, PLASTIC, KBP-G, 4 PIN

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	R-PSIP-T4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Minimum breakdown voltage	60 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-T4
Maximum non-repetitive peak forward current	40 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	KBP005G	KBP08G	KBP06G	KBP10G
Description	Bridge Rectifier Diode, 1 Phase, 1.5A, 50V V(RRM), Silicon, PLASTIC, KBP-G, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 800V V(RRM), Silicon, PLASTIC, KBP-G, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 600V V(RRM), Silicon, PLASTIC, KBP-G, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon, PLASTIC, KBP-G, 4 PIN
package instruction	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Contacts	4	4	4	4
Reach Compliance Code	unknown	unknow	unknow	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	60 V	800 V	600 V	1000 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Maximum non-repetitive peak forward current	40 A	40 A	40 A	40 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	800 V	600 V	1000 V
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
