DV74HCT251N datasheet, PDF - EEWORLD Datasheet

DV74HCT251N: DescriptionMultiplexer, HCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size674KB，4 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

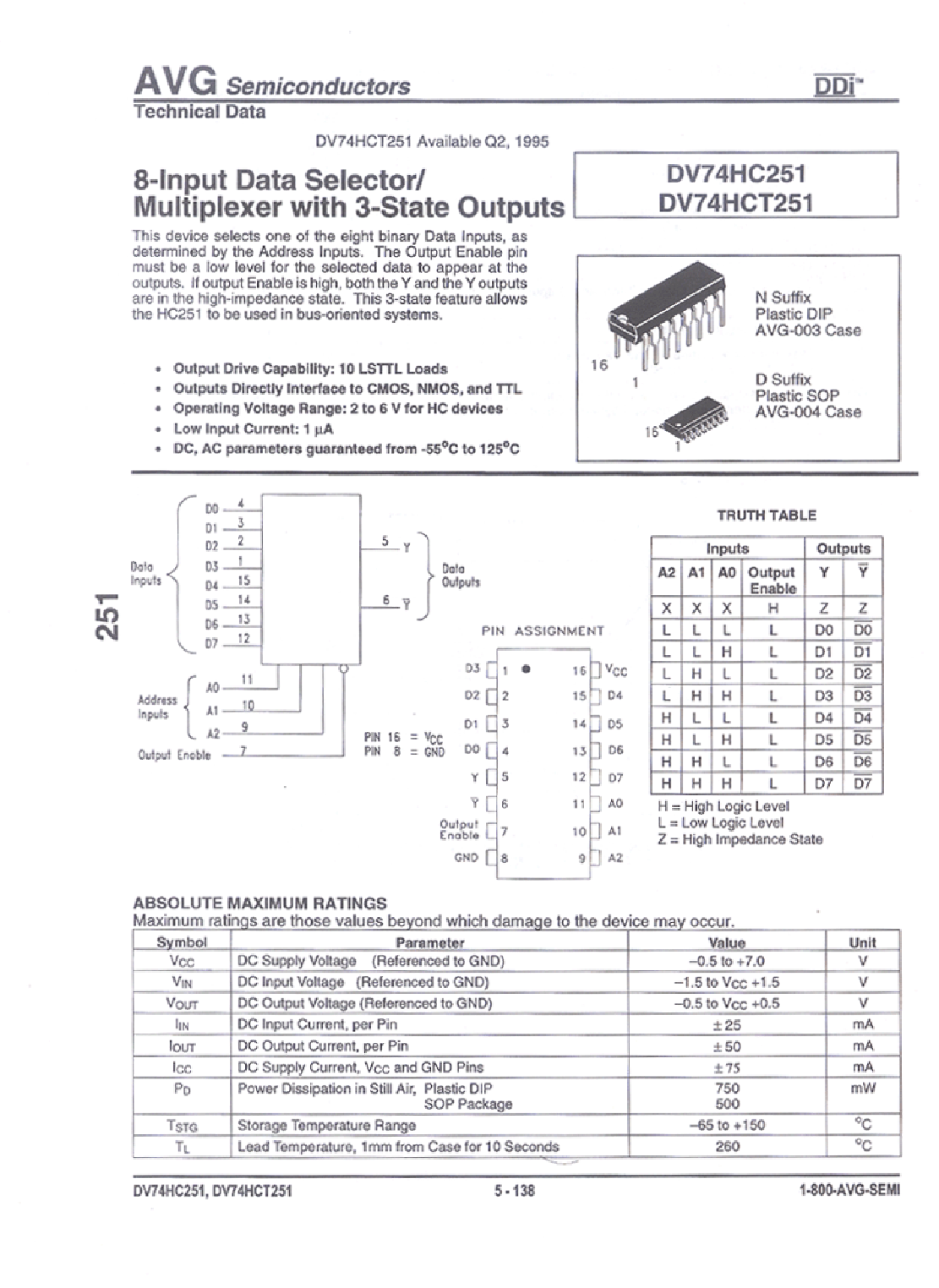

DV74HCT251N Overview

Multiplexer, HCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-PDIP-T16
length	19.175 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16

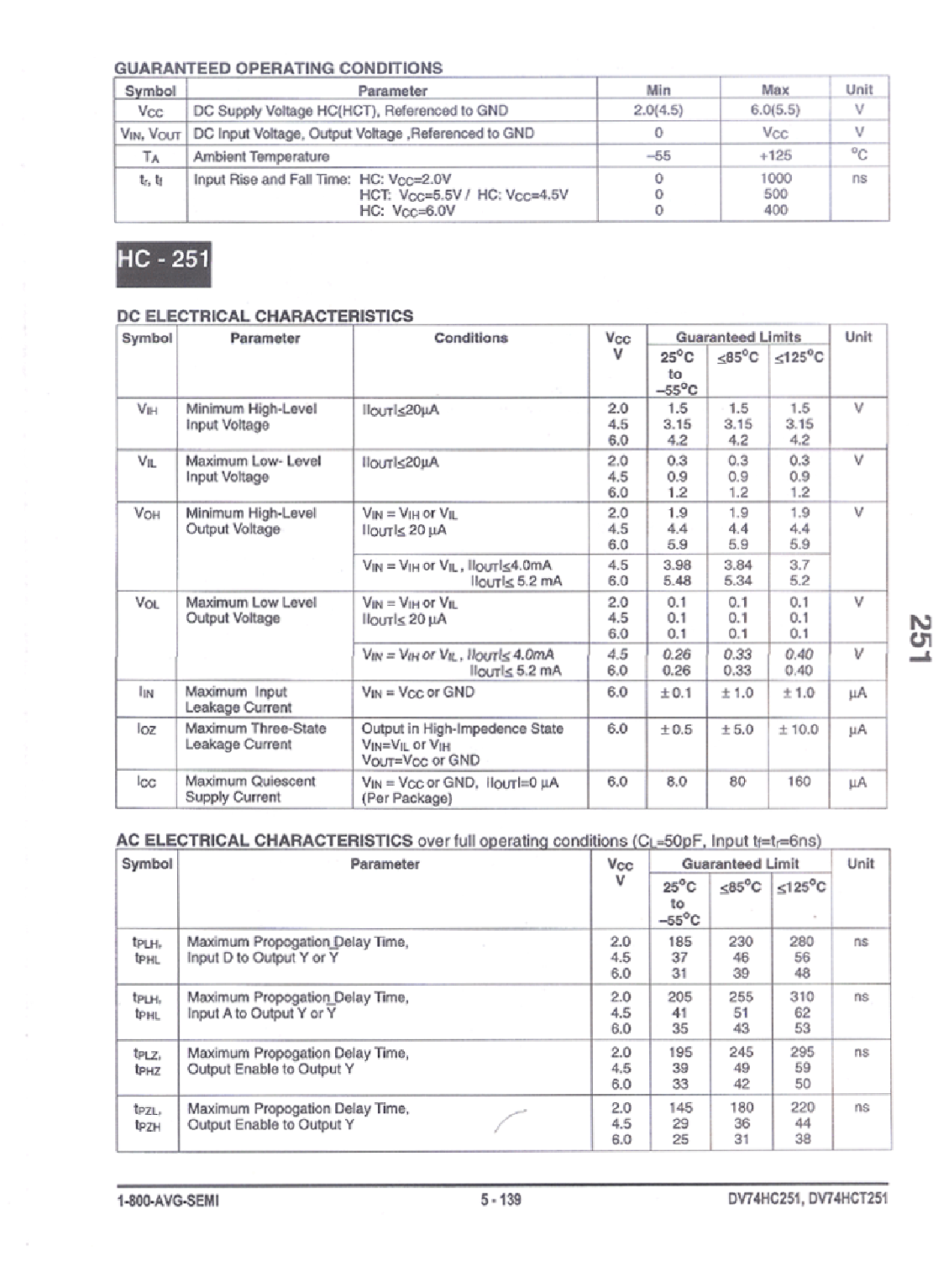

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

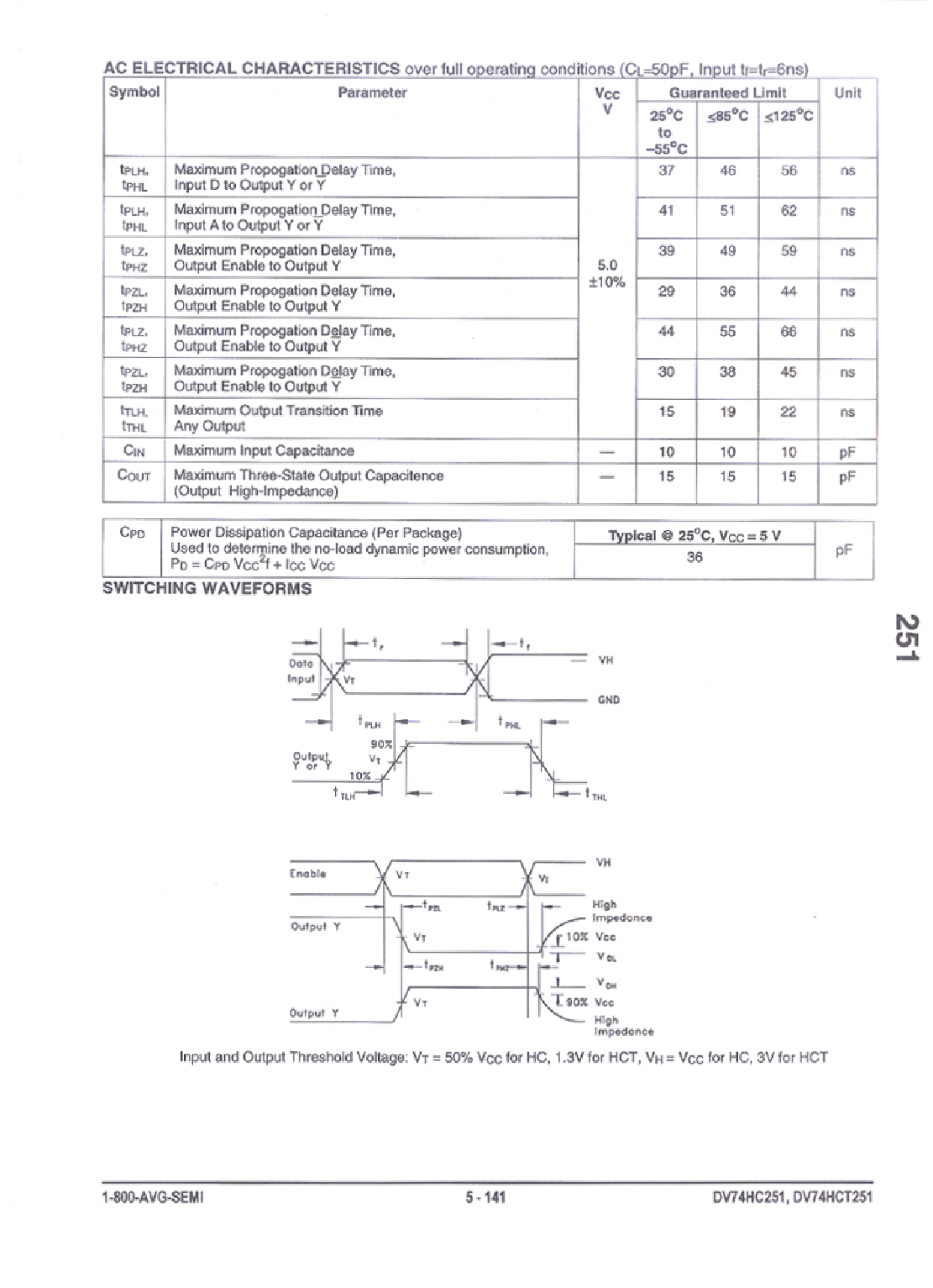

propagation delay (tpd)	56 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm

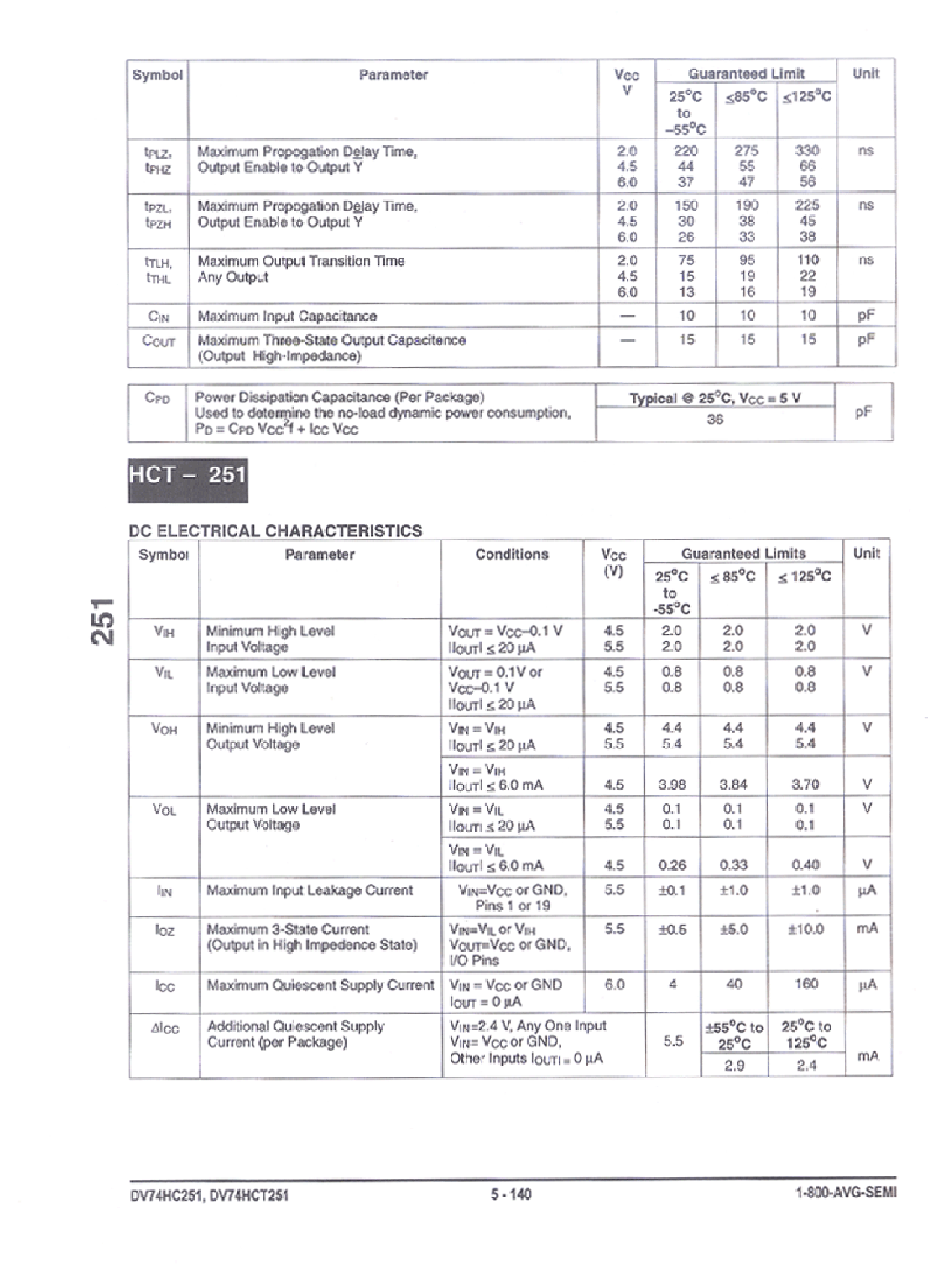

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	DV74HCT251N	DV74HCT251D
Description	Multiplexer, HCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, HCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16, PLASTIC, SOP-16
Parts packaging code	DIP	SOIC
package instruction	DIP,	SOP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	HCT	HCT
JESD-30 code	R-PDIP-T16	R-PDSO-G16
length	19.175 mm	9.9 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1
Number of entries	8	8
Output times	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	56 ns	56 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	3.9 mm
