LME1215D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> LME1215D

LME1215D: DescriptionAnalog Circuit, PDIP4; CategoryAnalog mixed-signal IC The signal circuit; File Size209KB，1 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/

Download Datasheet Parametric Compare View All

LME1215D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LME1215D	-	-	View	Buy Now

LME1215D Overview

Analog Circuit, PDIP4

LME1215D Parametric

Parameter Name	Attribute value
Maker	XP Power
Reach Compliance Code	compliant
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
JESD-30 code	R-PDIP-T4
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	0.016 A
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP4/8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

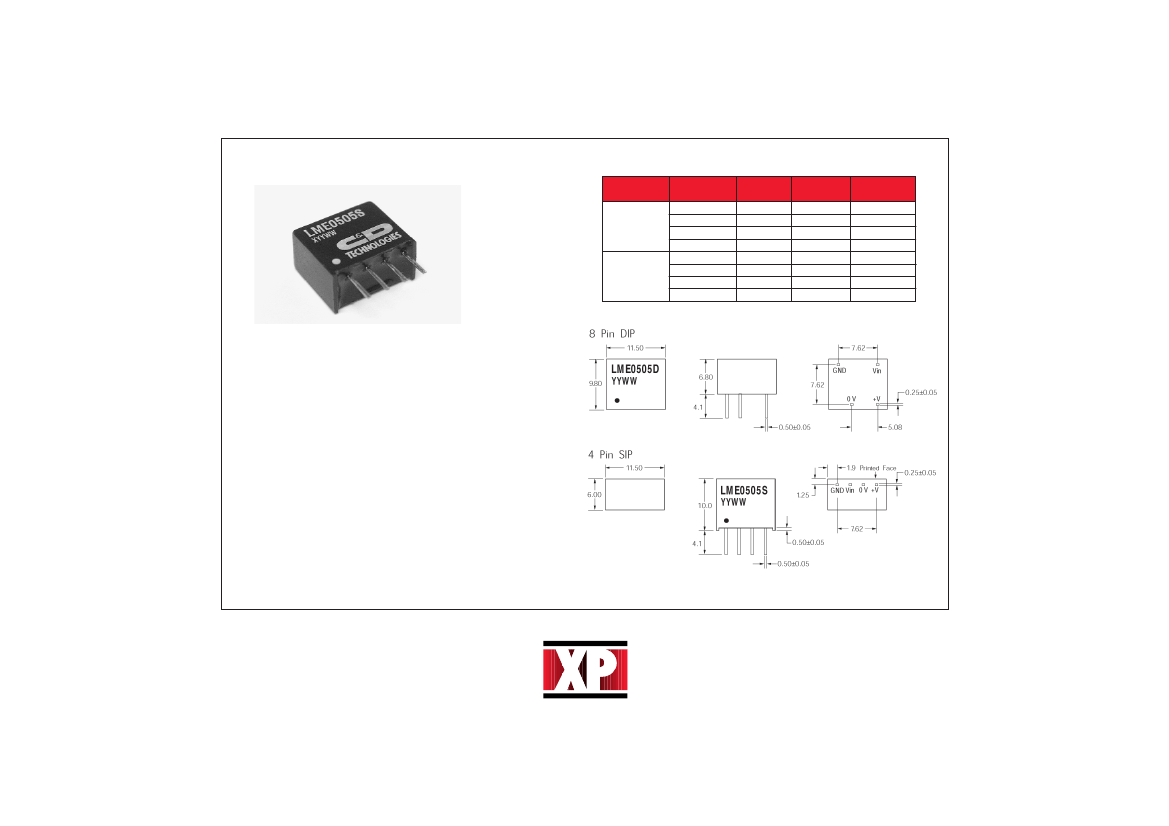

LME Series

0.25 Watts Single Output

Output

Efficiency

Model

Voltage

Current

Number

5.0 V

50 mA

70%

LME05 05S

9.0 V

28 mA

75%

LME05 09S

12.0 V

21 mA

75%

LME05 12S

15.0 V

16 mA

75%

LME05 15S

5.0 V

50 mA

70%

LME12 05S

9.0 V

28 mA

75%

LME12 09S

12 V

12.0 V

21 mA

75%

LME12 12S

15.0 V

16 mA

75%

LME12 15S

NOTE: Dual in line packages available; replace ‘S’ in part number with ‘D’.

Nominal

Input Voltage

Input

●

Input Range

±10% of nominal

Typically within -7.5 to +2.5% at full load

1.2%

15% 3.3 V & 5 V output models

10% 9 V, 12 V and 15 V output models

±0.03%/°C

<100 mV pk-pk

0 °C to +125 °C

Derate from +70 °C at 2.22%/°C

-55 °C to +150 °C

1000 VDC

100 kHz typ

300 °C/10 sec 1.5 mm from case

Output

●

Voltage Accuracy of nominal

●

Line Regulation (Vin ±10%)

●

Load Regulation

(10-100% full load)

●

Temperature Coefficient

●

Ripple and Noise

(20 MHz bandwidth)

●

Short Circuit Duration

General

●

Operating Temperature

●

Storage Temperature

Isolation (flash tested for 1 sec)

Switching Frequency (full load)

Lead Temperature

Weight : SIP 1.48 g, DIP 1.3 g

www.xpplc.com

sales@xpplc.com

Rev 4.0

LME1215D Related Products

	LME1215D	LME0505D	LME1215S	LME1212S	LME0515S
Description	Analog Circuit, PDIP4	Analog Circuit, PDIP4	Analog Circuit	Analog Circuit	Analog Circuit
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
Maximum input voltage	13.2 V	5.5 V	13.2 V	13.2 V	5.5 V
Minimum input voltage	10.8 V	4.5 V	10.8 V	10.8 V	4.5 V
Number of terminals	4	4	4	4	4
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum output current	0.016 A	0.05 A	0.016 A	0.021 A	0.016 A
Nominal output voltage	15 V	5 V	15 V	12 V	15 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	DIP4/8,.3	DIP4/8,.3	SIP4,.18	SIP4,.18	SIP4,.18
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	SINGLE	SINGLE	SINGLE
Maker	XP Power	XP Power	-	XP Power	XP Power
