LM0555CN datasheet, PDF - EEWORLD Datasheet

LM0555CN: DescriptionPULSE; RECTANGULAR, TIMER, PDIP8; CategoryAnalog mixed-signal IC The signal circuit; File Size158KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

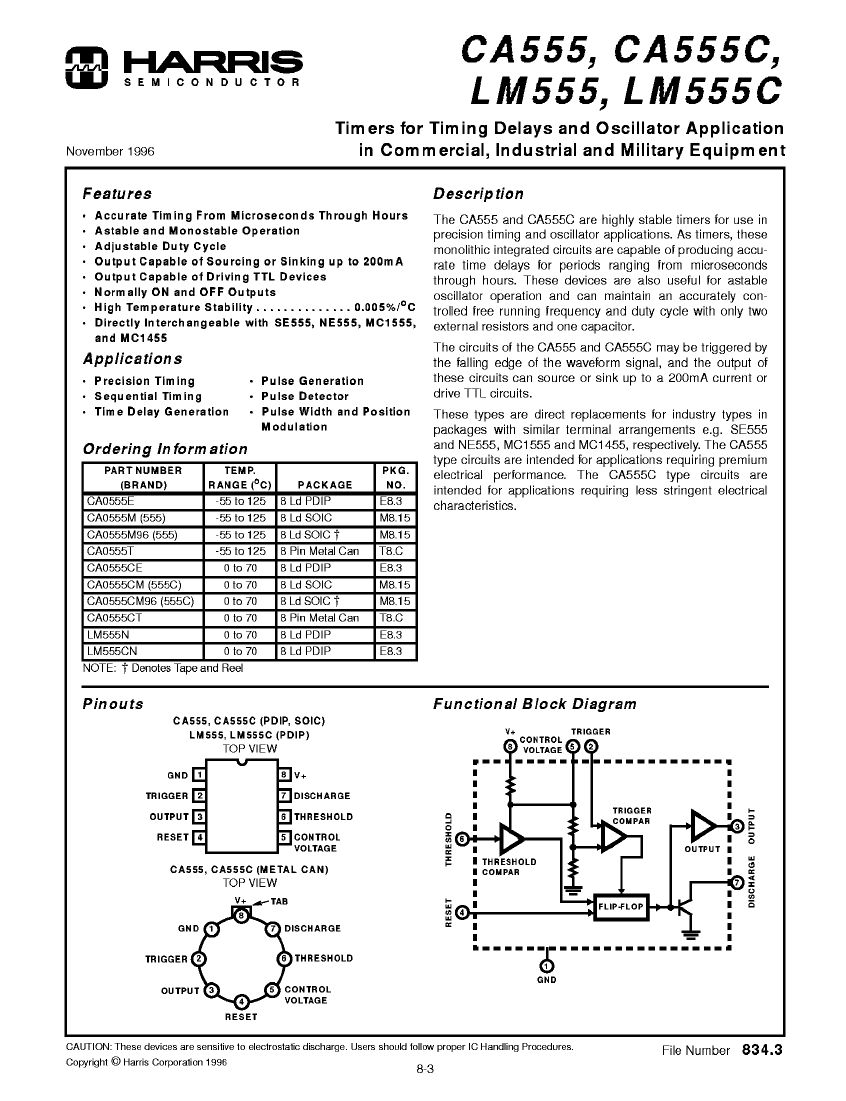

LM0555CN Overview

PULSE; RECTANGULAR, TIMER, PDIP8

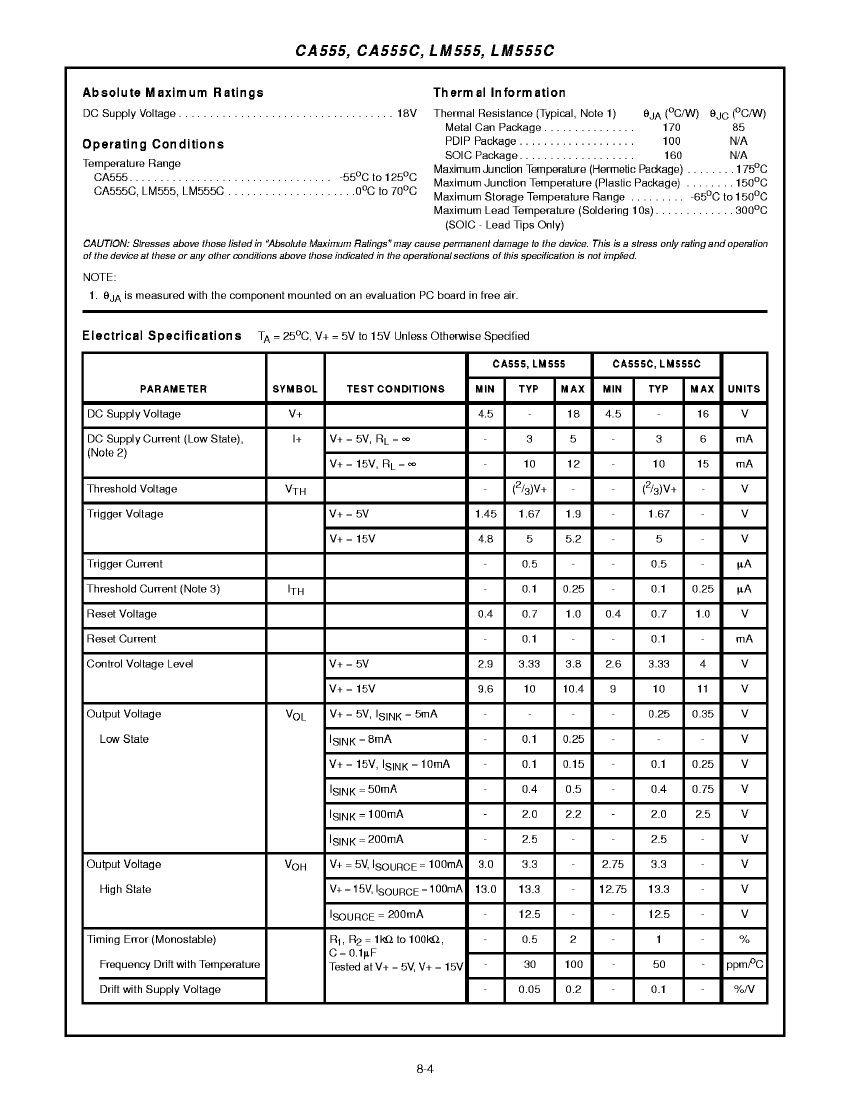

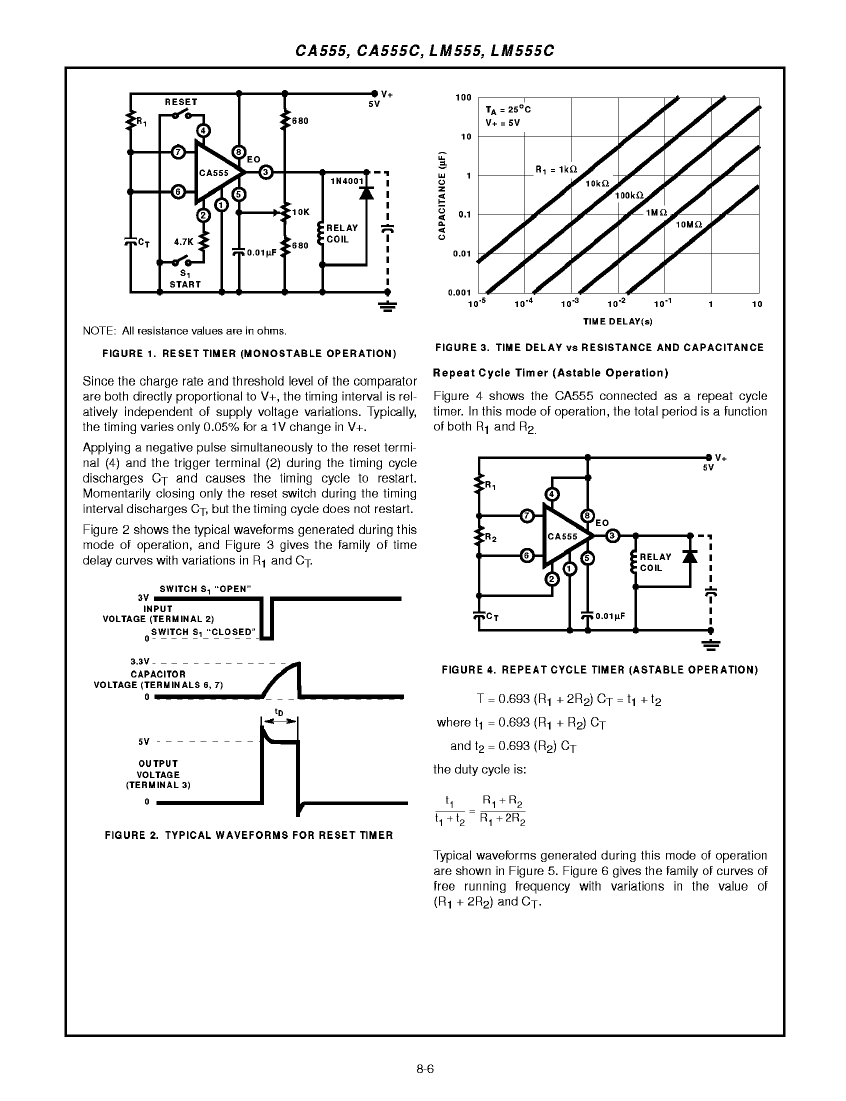

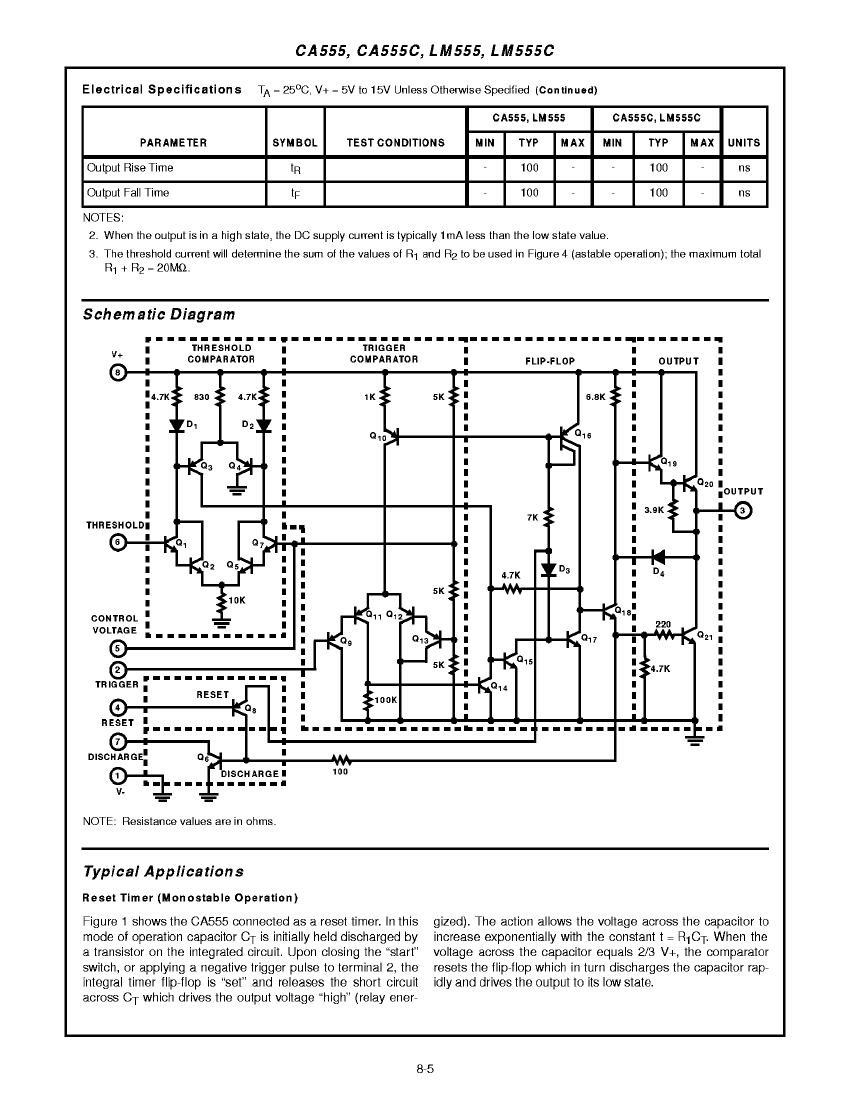

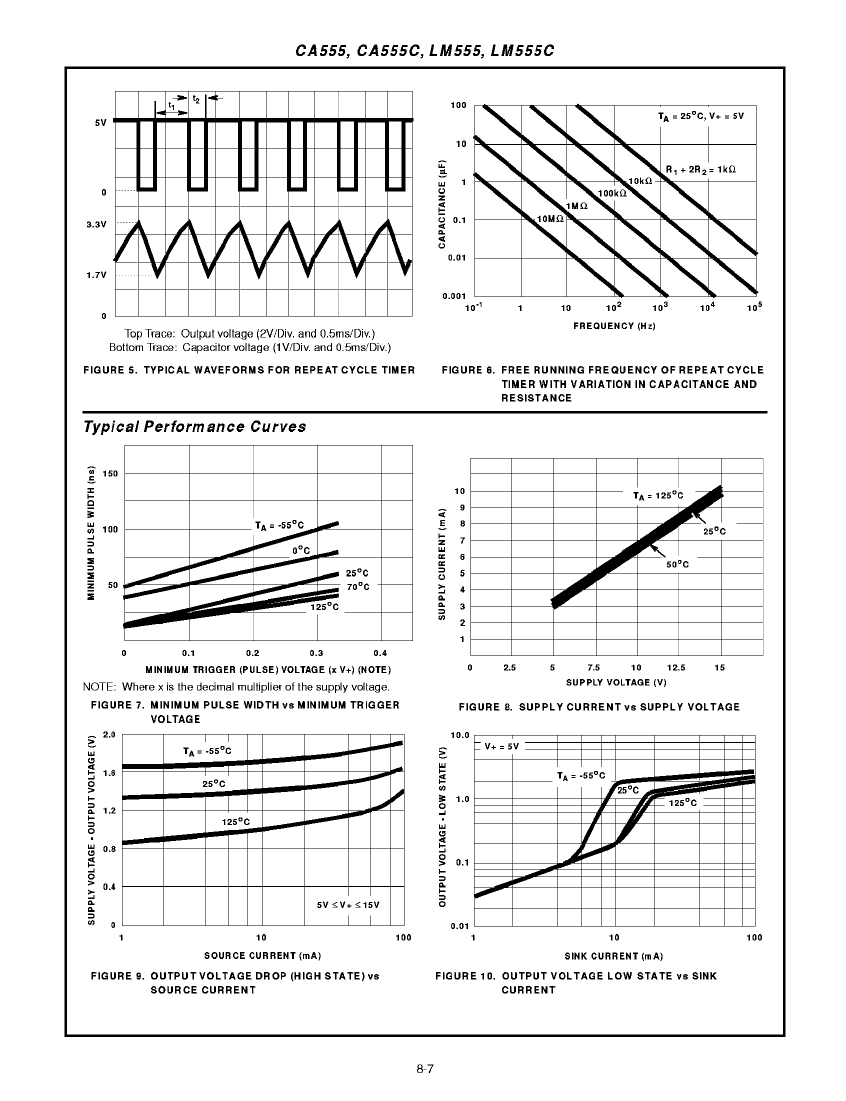

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	IT CAN ALSO OPERATE AT 15V NOM
Analog Integrated Circuits - Other Types	PULSE; RECTANGULAR
JESD-30 code	R-PDIP-T8
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	LM0555CN	LM0555N
Description	PULSE; RECTANGULAR, TIMER, PDIP8	PULSE; RECTANGULAR, TIMER, PDIP8
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	IT CAN ALSO OPERATE AT 15V NOM	IT CAN ALSO OPERATE AT 15V NOM
Analog Integrated Circuits - Other Types	PULSE; RECTANGULAR	PULSE; RECTANGULAR
JESD-30 code	R-PDIP-T8	R-PDIP-T8
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	16 V	18 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
