LPO1704-224MLC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPO1704-224MLC

LPO1704-224MLC: DescriptionGeneral Purpose Inductor, 220uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size105KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

LPO1704-224MLC Overview

General Purpose Inductor, 220uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT

LPO1704-224MLC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COILCRAFT
Reach Compliance Code	compliant
ECCN code	EAR99
core material	CERAMIC
DC Resistance	7 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LPO1704
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	10 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

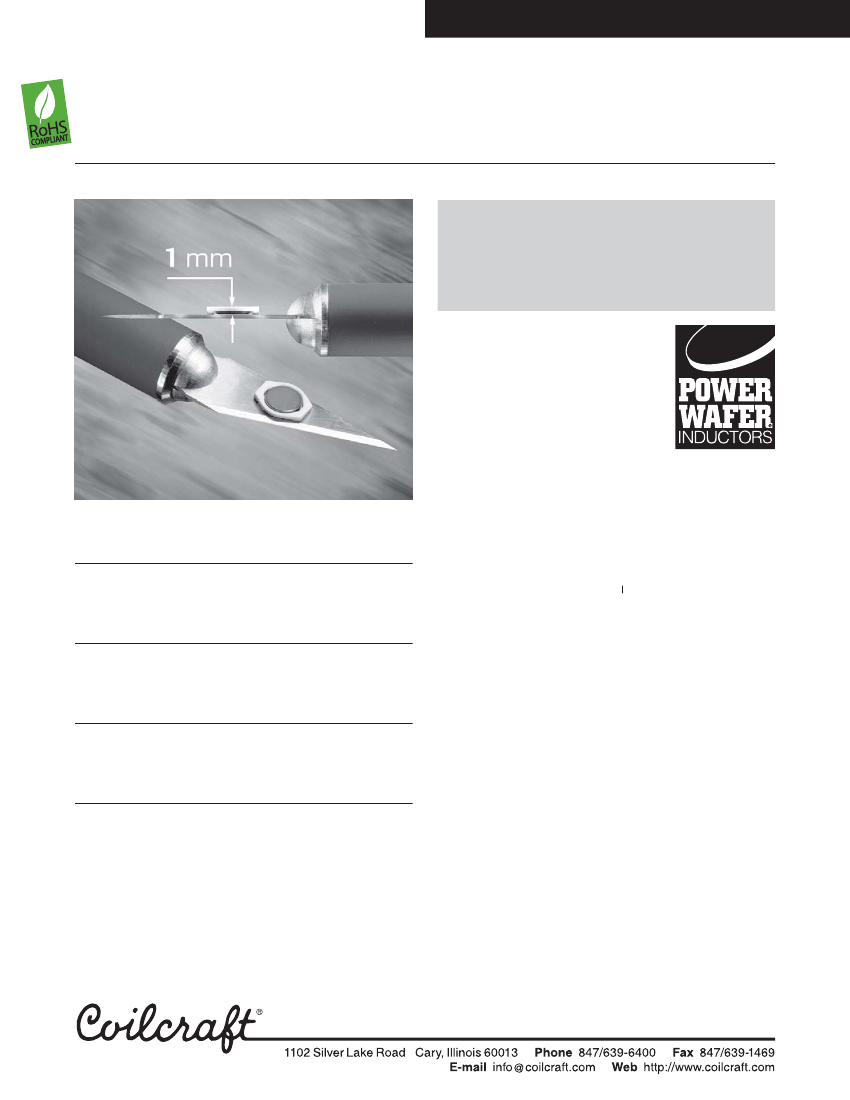

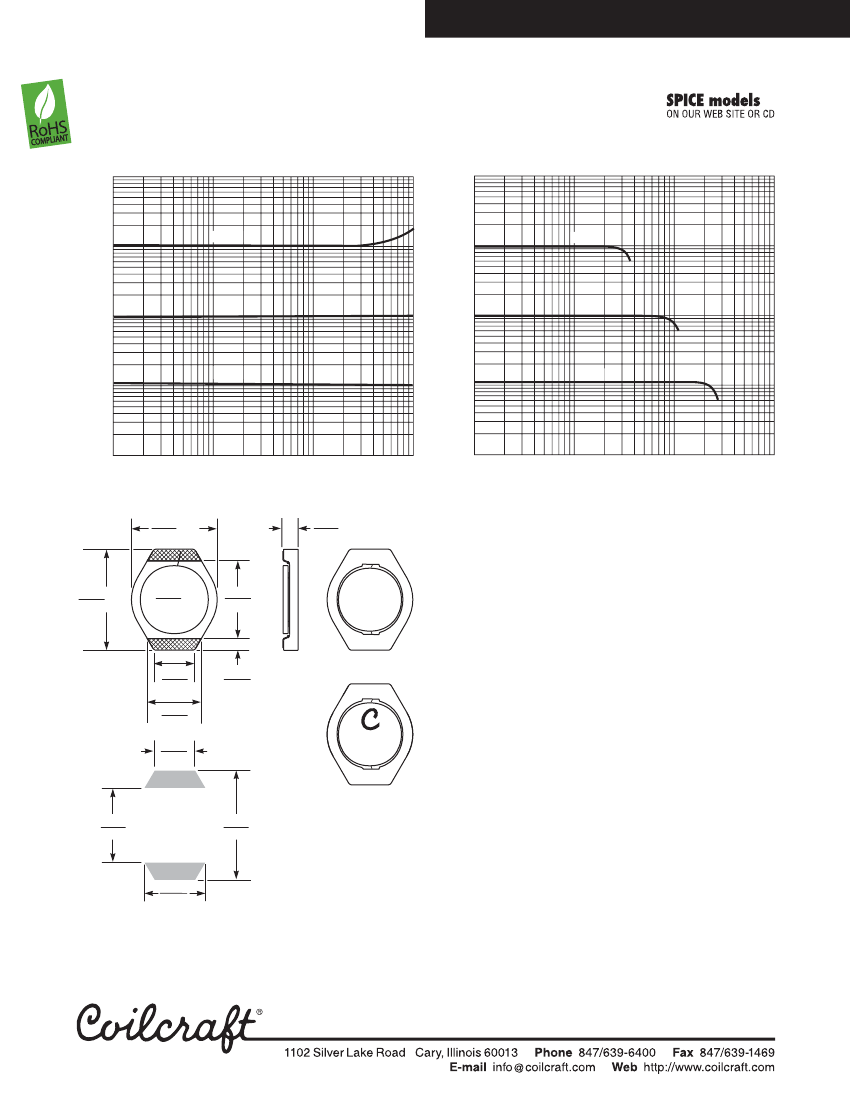

Document 233-1

SMT Power Inductors - LPO1704 Series

We now offer an improved version of

this series: LPO6610.

It has identical electrical specifications and footprint,

and comes in a more robust package that features part

identification marking. We will, however, continue to

produce the LPO1704 indefinitely.

Measuring just 1 mm high, the

LPO1704 is the world’s lowest pro-

file power inductor!

This series has been specially de-

signed for applications requiring the

smallest possible footprint and low-

est height: notebook computers,

PDAs, PC Cards, mobile phones and

other handheld products.

The specially designed ceramic case totally protects the

winding while the flat top provides the best possible

surface for pick and place handling.

Part number

LPO1704-122ML_

LPO1704-152ML_

LPO1704-222ML_

LPO1704-332ML_

LPO1704-472ML_

LPO1704-682ML_

LPO1704-103ML_

LPO1704-153ML_

LPO1704-223ML_

LPO1704-333ML_

LPO1704-473ML_

LPO1704-683ML_

LPO1704-104ML_

LPO1704-154ML_

LPO1704-224ML_

LPO1704-334ML_

DCR

SRF

±20% max

typ

(µH) (Ohms) (MHz)

1.2 0.08

190

1.5 0.10

140

2.2 0.12

115

3.3 0.16

4.7 0.20

6.8

0.32

0.41

0.55

0.85

1.3

1.8

2.5

3.5

5.0

7.0

15.0

Isat

Irms

(A)

2.1

1.7

1.9

1.5

1.6

1.4

1.3

1.2

1.1

0.90

0.80

0.65

0.50

0.40

0.35

0.30

0.25

0.18

0.16

0.13

0.85

0.75

0.60

0.52

0.42

0.36

0.30

0.26

0.21

0.18

0.13

1. When ordering, please specify

packaging

code:

LPO1704-334MLC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

2. Tested at 100 kHz, 0.1 Vrms, 0 Adc.

3. DC current at which the inductance drops 10% (typ) from its value

without current.

4. Average current for a 40°C rise above 25°C ambient.

5. Operating temperature range -40°C to +85°C.

6. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

100

150

220

330

Specifications subject to change without notice.

Please check our website for latest information. Document 233-1

Revised 01/27/05
