JANTX2N688 datasheet, PDF - EEWORLD Datasheet

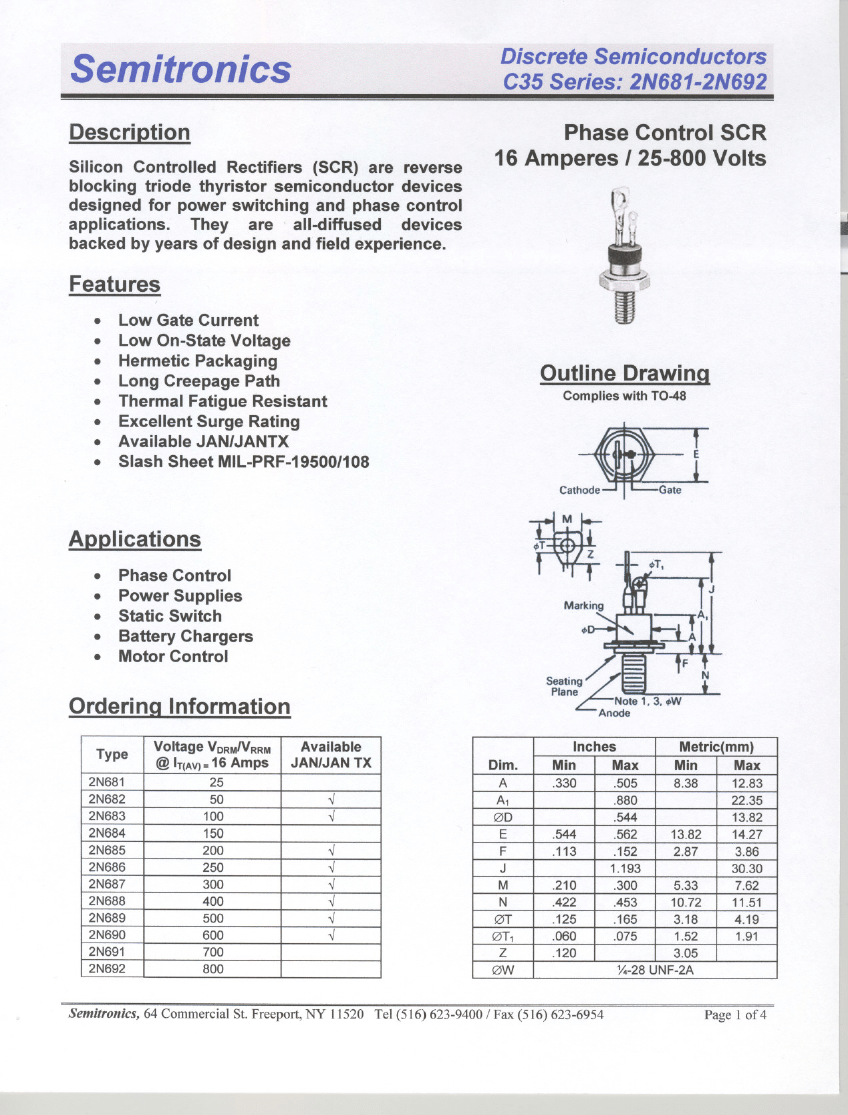

JANTX2N688: DescriptionSilicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-48, HERMETIC SEALED PACKAGE-2; CategoryAnalog mixed-signal IC Trigger device; File Size2MB，4 Pages; ManufacturerSemitronics Corp.; Related ProductsFound13parts with similar functions to JANTX2N688

Download Datasheet Parametric View All

JANTX2N688 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTX2N688	-	-	View	Buy Now

Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-48, HERMETIC SEALED PACKAGE-2

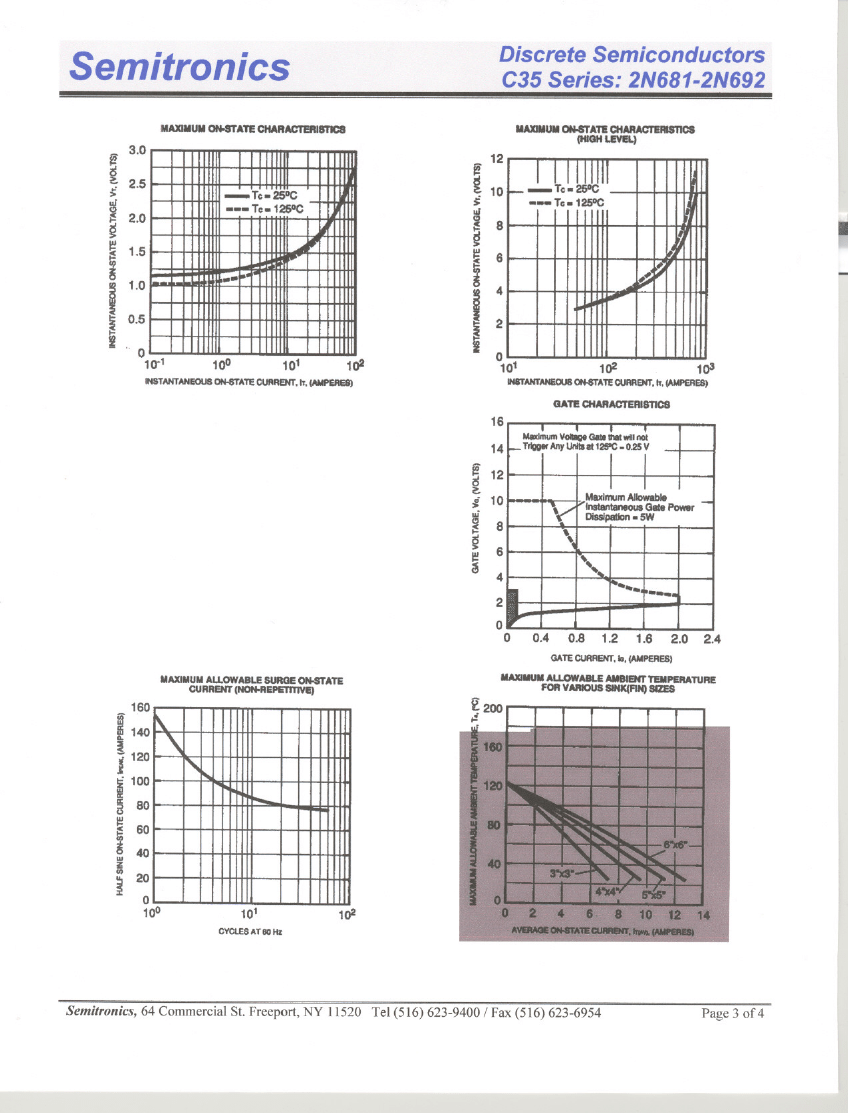

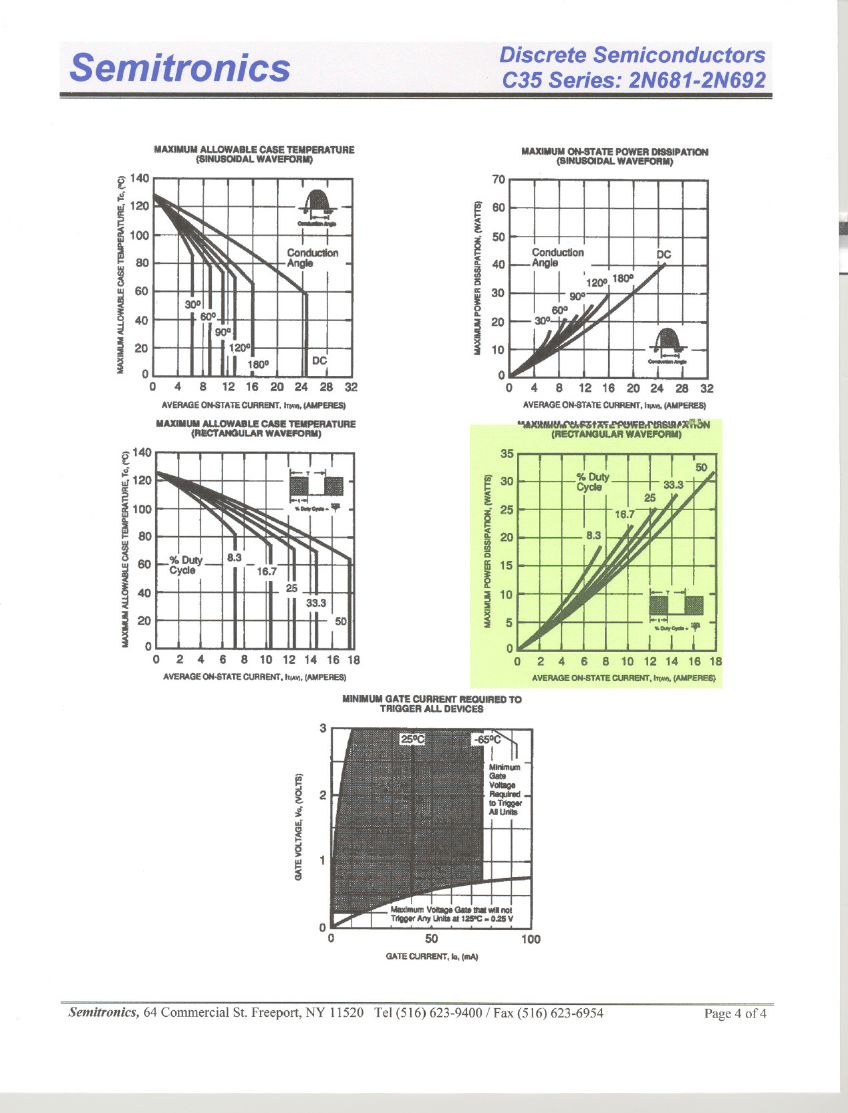

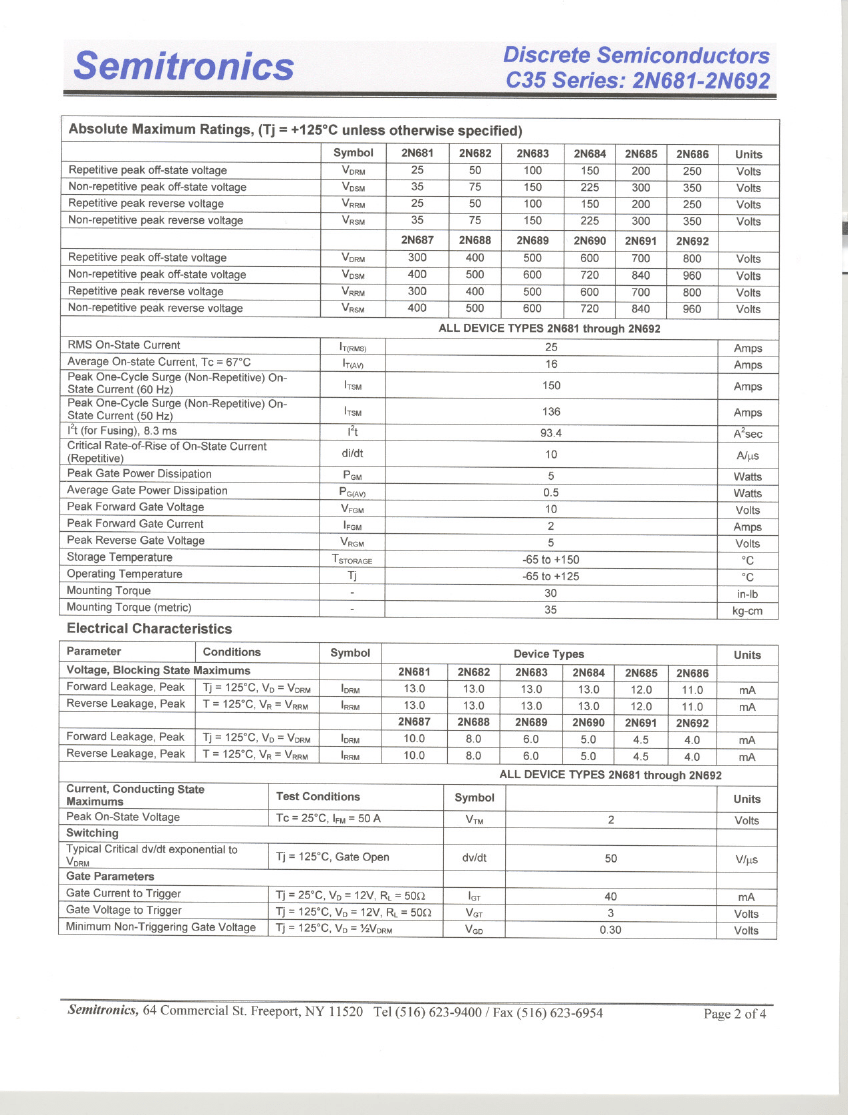

Parameter Name	Attribute value
Parts packaging code	TO-48
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	unknow
Shell connection	ANODE
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	30 V/us
Maximum DC gate trigger current	40 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	50 mA
JEDEC-95 code	TO-48
JESD-30 code	O-MUPM-D2
Maximum leakage current	4 mA
On-state non-repetitive peak current	150 A
Number of components	1
Number of terminals	2
Maximum on-state current	25000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-60 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Qualified
Maximum rms on-state current	25 A
Guideline	MIL-19500/108
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1

Part Number	Manufacturer	Description
2N687	Digitron	Silicon Controlled Rectifier; Max Peak Repetitive Reverse Voltage: 300; Max TMS Bridge Input Voltage: 16; Max DC Reverse Voltage: 5; Capacitance: 20; Package: TO-48
2N686	Vishay(威世)	Silicon Controlled Rectifier, 25 A, 250 V, SCR, TO-208AA
2N688	SSDI	Silicon Controlled Rectifier, 39.25A I(T)RMS, 25000mA I(T), 400V V(DRM), 1 Element, TO-48, TO-48, 2 PIN
2N688PBF	International Rectifier （ Infineon ）	Silicon Controlled Rectifier, 25A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-208AA
2N687PBF	Vishay(威世)	Silicon Controlled Rectifier, 25A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-208AA
2N686PBF	International Rectifier （ Infineon ）	Silicon Controlled Rectifier, 25A I(T)RMS, 250V V(DRM), 250V V(RRM), 1 Element, TO-208AA
2N688LEADFREE	Central Semiconductor	Silicon Controlled Rectifier, 25A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-48, TO-48, 2 PIN
2N687LEADFREE	Central Semiconductor	Silicon Controlled Rectifier, 25A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-48, TO-48, 2 PIN
2N686LEADFREE	Central Semiconductor	Silicon Controlled Rectifier, 25A I(T)RMS, 250V V(DRM), 250V V(RRM), 1 Element, TO-48, TO-48, 2 PIN
S4025H	Loras Industries Inc	Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 400V V(DRM), 1 Element, TO-48
C230D	Digitron	25 A, 100 V, SCR
SPS425	ON Semiconductor(安森美)	FIBER OPTIC RECEIVER,BAR-2B
C234D	Loras Industries Inc	Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 400V V(DRM), 1 Element, TO-48
