2N688LEADFREE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 2N688LEADFREE

2N688LEADFREE: DescriptionSilicon Controlled Rectifier, 25A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-48, TO-48, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size110KB，8 Pages; ManufacturerCentral Semiconductor; Environmental Compliance; Related ProductsFound13parts with similar functions to 2N688LEADFREE

Download Datasheet Parametric View All

2N688LEADFREE Overview

Silicon Controlled Rectifier, 25A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-48, TO-48, 2 PIN

2N688LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-48
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	compli
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	40 mA
JEDEC-95 code	TO-48
JESD-30 code	O-MUPM-D2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	25 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal surface	MATTE TIN (315)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	10
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

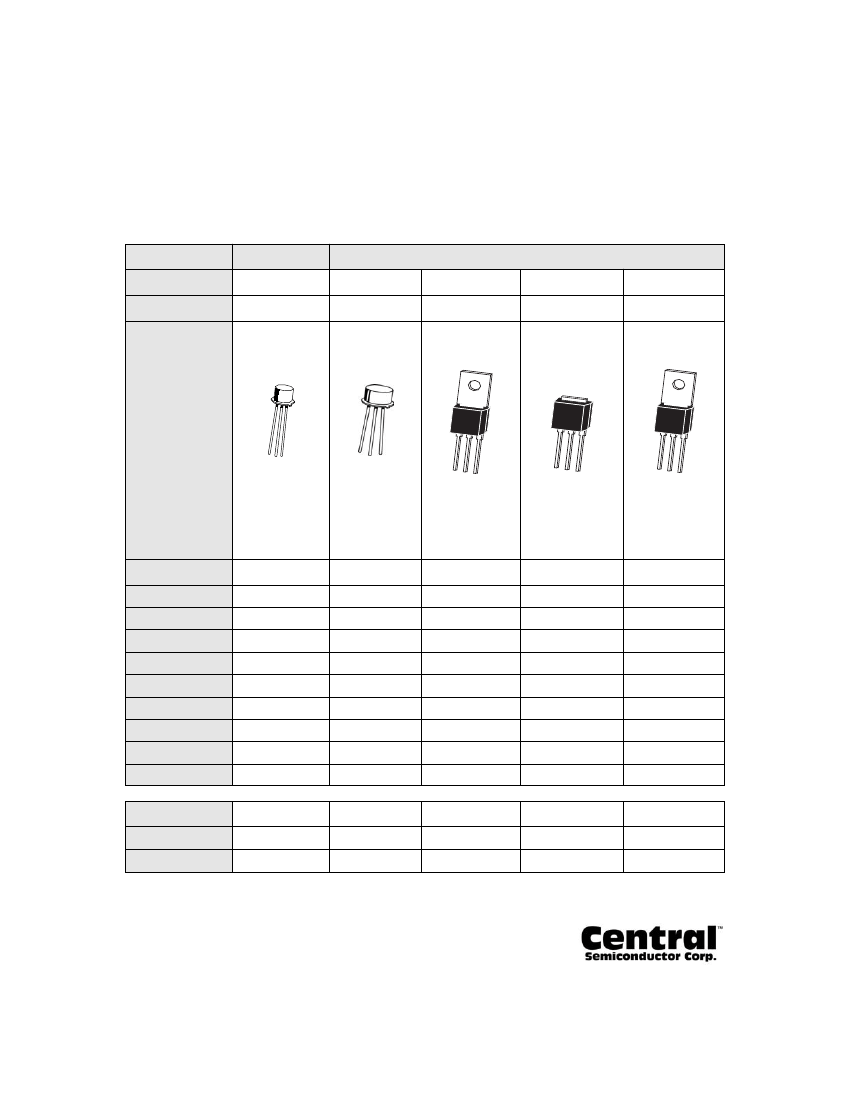

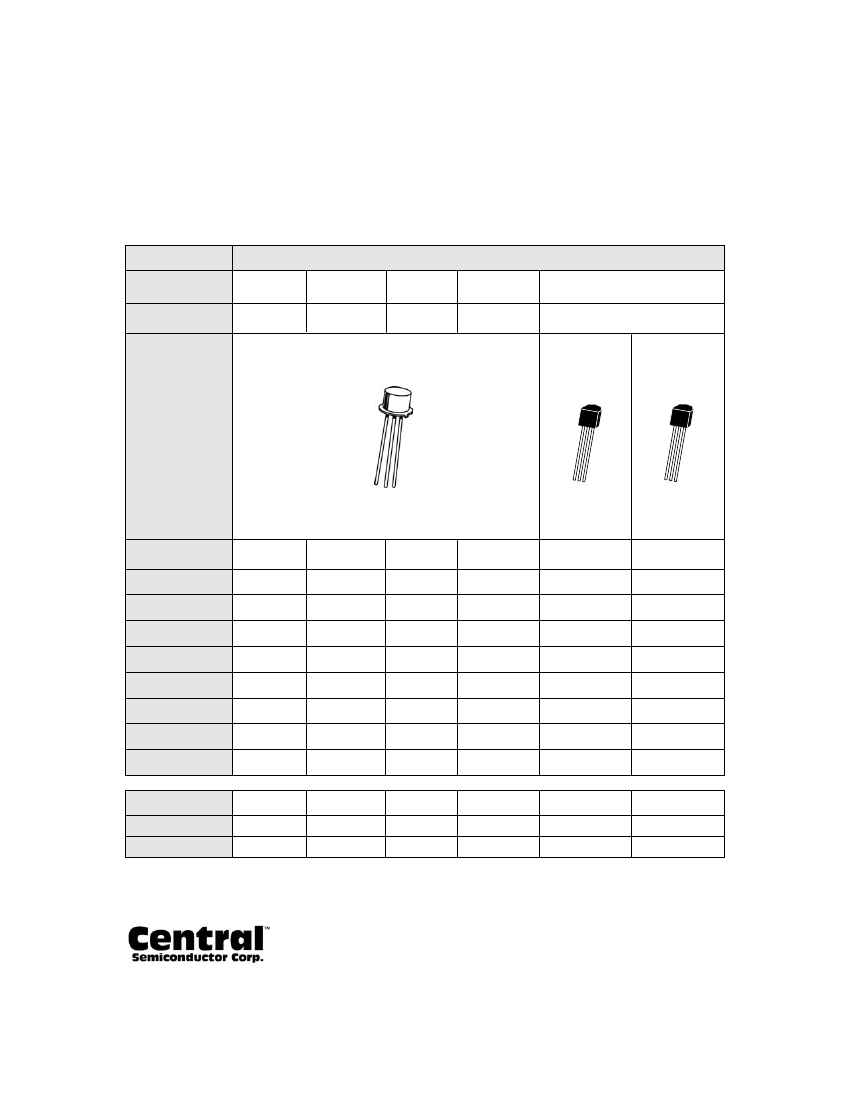

SCRs

(Silicon Controlled Rectifiers)

Metal/Plastic Packages

0.8 to 110 Amperes RMS

15 to 1200 Volts

IT (AMPS)

@ TC ( C)

ITSM (AMPS)

0.8

6.0

TO-92

Pinout

TO-92

Pinout

CASE

VRRM (VOLTS)

100

150

200

300

400

IGT

VGT

2N876

2N877

2N878

2N879

2N880

2N881

2N882

2N883

200µA

0.8V

5.0mA

2N884

2N885

2N886

2N887

2N888

2N889

2N890

2N891

20µA

0.7V

5.0mA

TO-18

CGA

AGC

2N3001

2N3002

2N3003

2N3005

2N3006

2N3007

2N5060

2N5061

2N5062

2N5063

BRX44*

BRX45*

BRX46*

2N3004

2N3008

2N5064

2N6564

2N6565

BRX47*

BRX48*

BRX49*

200µA

0.8V

5.0mA

20µA

0.7V

3.0mA

200µA

0.8V

5.0mA

200µA

0.8V

5.0mA

* TO-92-18R lead forming available. Please consult factory.

w w w. c e n t r a l s e m i . c o m

Recommended Resources

Two common-emitter transistor amplifiers connected to form a directly coupled two-stage amplifier

Overvoltage detection circuit

KTM03 locomotive trigger circuit

400m radio remote control transmitter circuit

Tube amplifier TDA1541NOS DAC (complete tube version) circuit diagram

Singing tumbler circuit

2N688LEADFREE Similar Products

Part Number	Manufacturer	Description
2N687	Digitron	Silicon Controlled Rectifier; Max Peak Repetitive Reverse Voltage: 300; Max TMS Bridge Input Voltage: 16; Max DC Reverse Voltage: 5; Capacitance: 20; Package: TO-48
2N686	Vishay(威世)	Silicon Controlled Rectifier, 25 A, 250 V, SCR, TO-208AA
2N688	SSDI	Silicon Controlled Rectifier, 39.25A I(T)RMS, 25000mA I(T), 400V V(DRM), 1 Element, TO-48, TO-48, 2 PIN
JANTX2N688	Semitronics Corp	Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-48, HERMETIC SEALED PACKAGE-2
2N688PBF	International Rectifier （ Infineon ）	Silicon Controlled Rectifier, 25A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-208AA
2N687PBF	Vishay(威世)	Silicon Controlled Rectifier, 25A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-208AA
2N686PBF	International Rectifier （ Infineon ）	Silicon Controlled Rectifier, 25A I(T)RMS, 250V V(DRM), 250V V(RRM), 1 Element, TO-208AA
2N687LEADFREE	Central Semiconductor	Silicon Controlled Rectifier, 25A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-48, TO-48, 2 PIN
2N686LEADFREE	Central Semiconductor	Silicon Controlled Rectifier, 25A I(T)RMS, 250V V(DRM), 250V V(RRM), 1 Element, TO-48, TO-48, 2 PIN
S4025H	Loras Industries Inc	Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 400V V(DRM), 1 Element, TO-48
C230D	Digitron	25 A, 100 V, SCR
SPS425	ON Semiconductor(安森美)	FIBER OPTIC RECEIVER,BAR-2B
C234D	Loras Industries Inc	Silicon Controlled Rectifier, 25A I(T)RMS, 25000mA I(T), 400V V(DRM), 1 Element, TO-48
