599-11-225-08-001442 datasheet, PDF

Datasheet> All Categories > The connector> socket> 599-11-225-08-001442

599-11-225-08-001442: DescriptionIC Socket, BGA255, 255 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size369KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

599-11-225-08-001442 Overview

IC Socket, BGA255, 255 Contact(s), ROHS COMPLIANT

599-11-225-08-001442 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BGA SOCKET
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	BGA255
Shell material	BRASS
JESD-609 code	e4
Number of contacts	255

Preview

Download Datasheet

View All

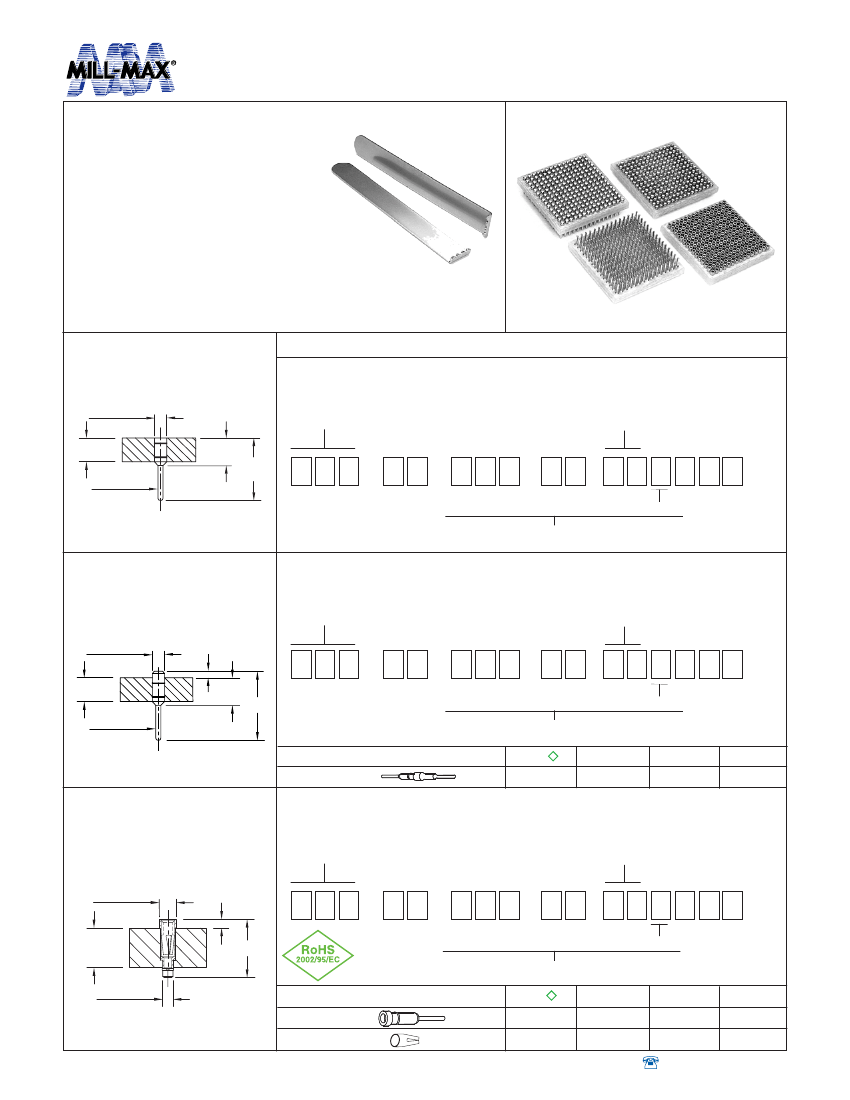

BALL GRID ARRAYS

For 0,8mm Grid

Male Pin Adapters & Female Socket

•

BGA adapter/socket systems are a reliable way to make BGAs

pluggable, they may also be used as a high

density board-to-board interconnect.

•

The BGA device is soldered to a 9929

adapter (or a 7929 adapter is soldered

to a PCB); and then either one can be

plugged into a 9645 surface mount socket.

•

Both socket and adapter have the same

footprint as the BGA device.

•

Insertion force is only .4N per pin, and a pry-bar tool

(part #828-01-010) is available for extraction.

•

Insulator material is FR-4 epoxy having a TCE to match the BGA

device and circuit board.

BGA MOUNT

ADAPTER PIN TYPE 9929

Series 5XX

Ordering Information

FOR BGA MOUNT ADAPTERS

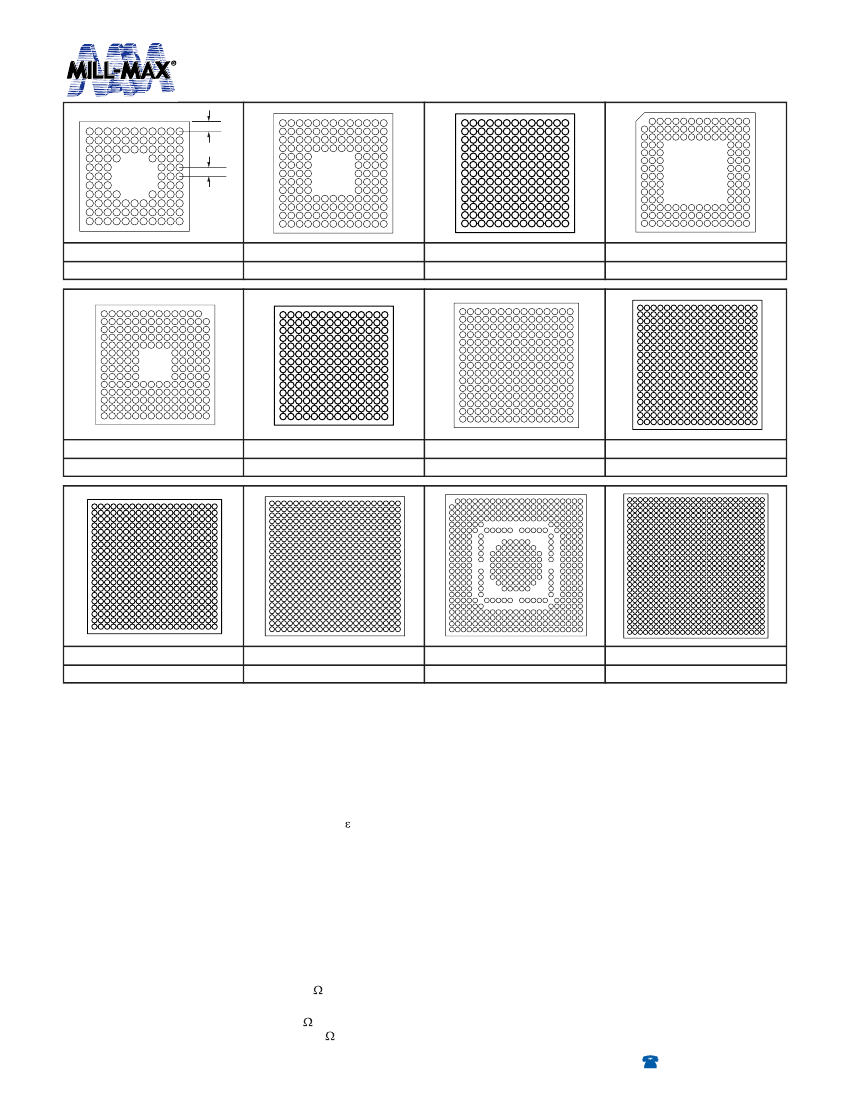

Locate footprint pattern from page 111.2, the middle 8 digits of the part

number will be located under the pattern.

Series

0,61 DIA.

1,19

0,25 DIA.

1,37

3,12

5 9 9

Plating

Code

Window

1 0

No. of pins

Grid size

Pattern #

4 2 9

Determined from footprint pattern on page 111.2

PRINTED CIRCUIT MOUNT

ADAPTER PIN TYPE 7929

FOR PCB MOUNT ADAPTERS

Locate footprint pattern from page 111.2, the middle 8 digits of the part

number will be located under the pattern.

Series

0,61 DIA.

1,19

0,25 DIA.

0,46

1,37

3,58

5 7 9

Plating

Code

Window

1 0

No. of pins

10

0,25µm Au

Grid size

Pattern #

4 2 9

Determined from footprint pattern on page 111.2

PLATING CODE XX=

Pin Plating

SURFACE MOUNT

RECEPTACLE TYPE 9942

FOR FEMALE SOCKETS

Locate footprint pattern from page 111.2, the middle 8 digits of the part

number will be located under the pattern.

Series

Plating

Code

Window

0,69 DIA.

1,57

0,41 DIA.

0,33

5 9 9

1 1

No. of pins

11

0,25µm Au

Grid size

Pattern #

4 4 2

2,29

Determined from footprint pattern on page 111.2

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m

111.1



516-922-6000
