Part Number

Search

8996-0-15-01-13-14-10-0

Description
PCB Terminal
CategoryThe connector    terminals
File Size39KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric Compare View All

8996-0-15-01-13-14-10-0 Overview

PCB Terminal

8996-0-15-01-13-14-10-0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial number8996
terminal genderFEMALE
Terminal and terminal strip typesPCB TERMINAL
PIN RECEPTACLES
for .048” - .064” diameter pins (#13 contact)
for .045” - .065” diameter pins (#23 contact)
8365
8996
9064
9280

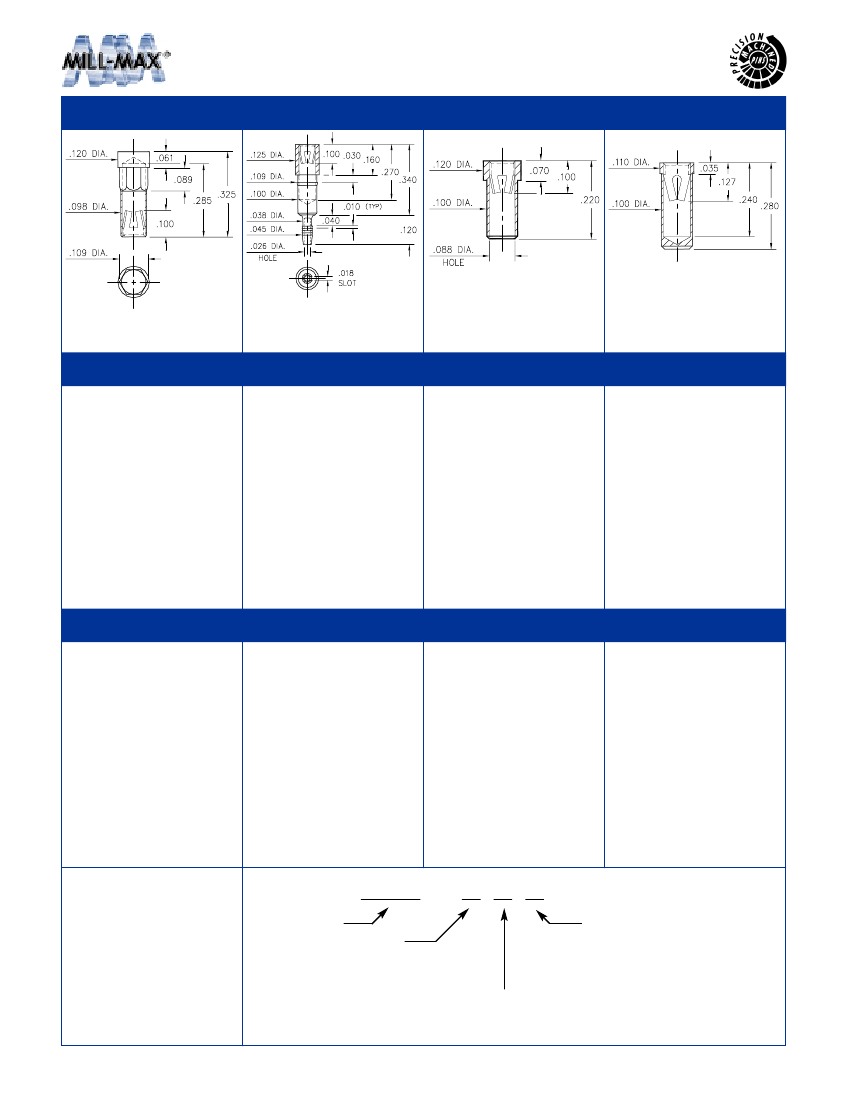

8365-0-15-XX-13-XX-10-0
Hex-pressfit in .106 plated
thru hole.
8996-0-15-XX-13-XX-10-0
Compliant press-fit in .040±.003 plated
hole. For .060→.100 thick board.
9064-0-15-XX-13-XX-10-0
Solder mount in .102 min.
mounting hole
9280-0-15-XX-13-XX-10-0
Solder mount in .102 min.
mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 15 - XX - XX - XX - 10 - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
15
10µ"
GOLD OVER
NICKEL
SELECT CONTACT
#13 OR #23
CONTACT (DATA ON PAGE 214)
SPECIFY CONTACT FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
14
10µ"
GOLD OVER
NICKEL
27
30µ"
GOLD OVER
NICKEL
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
158

8996-0-15-01-13-14-10-0 Related Products

8996-0-15-01-13-14-10-0 8996-0-15-15-13-27-10-0 8996-0-15-15-13-01-10-0 8996-0-15-15-13-14-10-0 8996-0-15-01-13-27-10-0 8996-0-15-01-13-01-10-0
Description PCB Terminal PCB Terminal PCB Terminal PCB Terminal PCB Terminal PCB Terminal
Is it lead-free? Contains lead Lead free Contains lead Lead free Contains lead Contains lead
Is it Rohs certified? incompatible conform to incompatible conform to incompatible incompatible
Maker Mill-Max Mill-Max Mill-Max Mill-Max Mill-Max Mill-Max
Reach Compliance Code compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Manufacturer's serial number 8996 8996 8996 8996 8996 8996
terminal gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Terminal and terminal strip types PCB TERMINAL PCB TERMINAL PCB TERMINAL PCB TERMINAL PCB TERMINAL PCB TERMINAL
