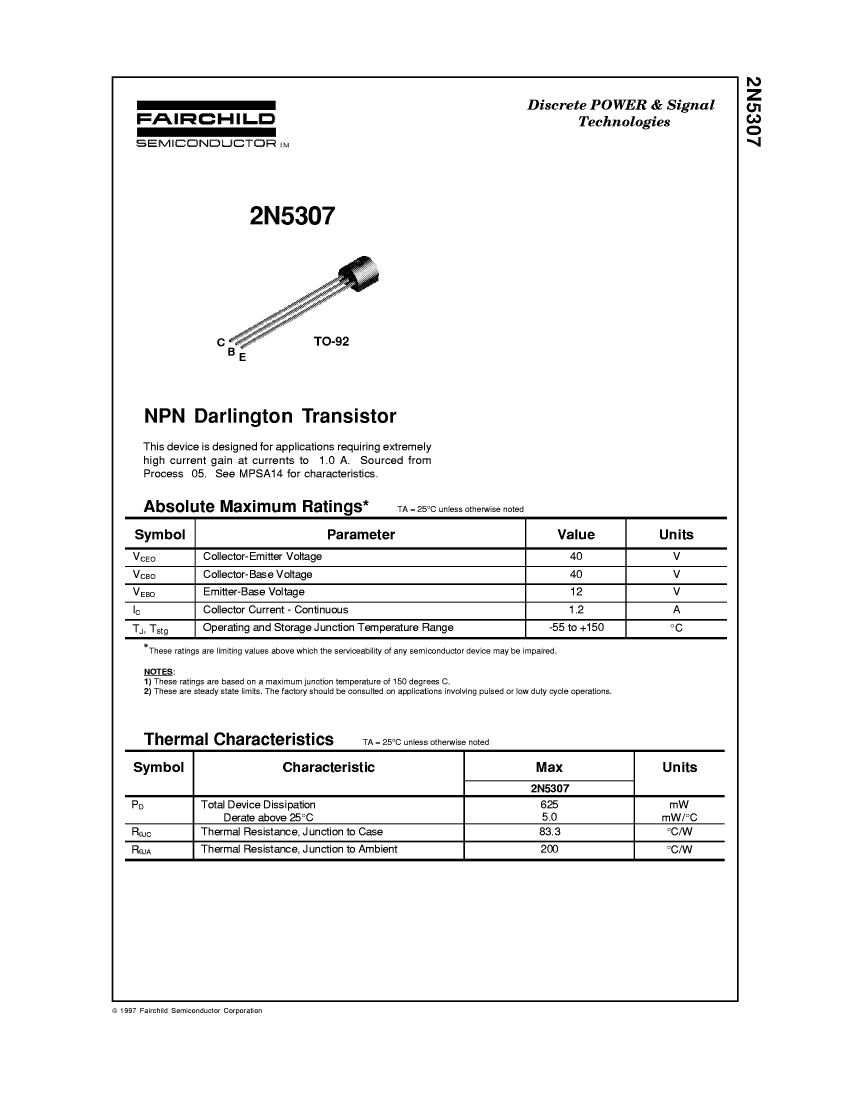

Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92

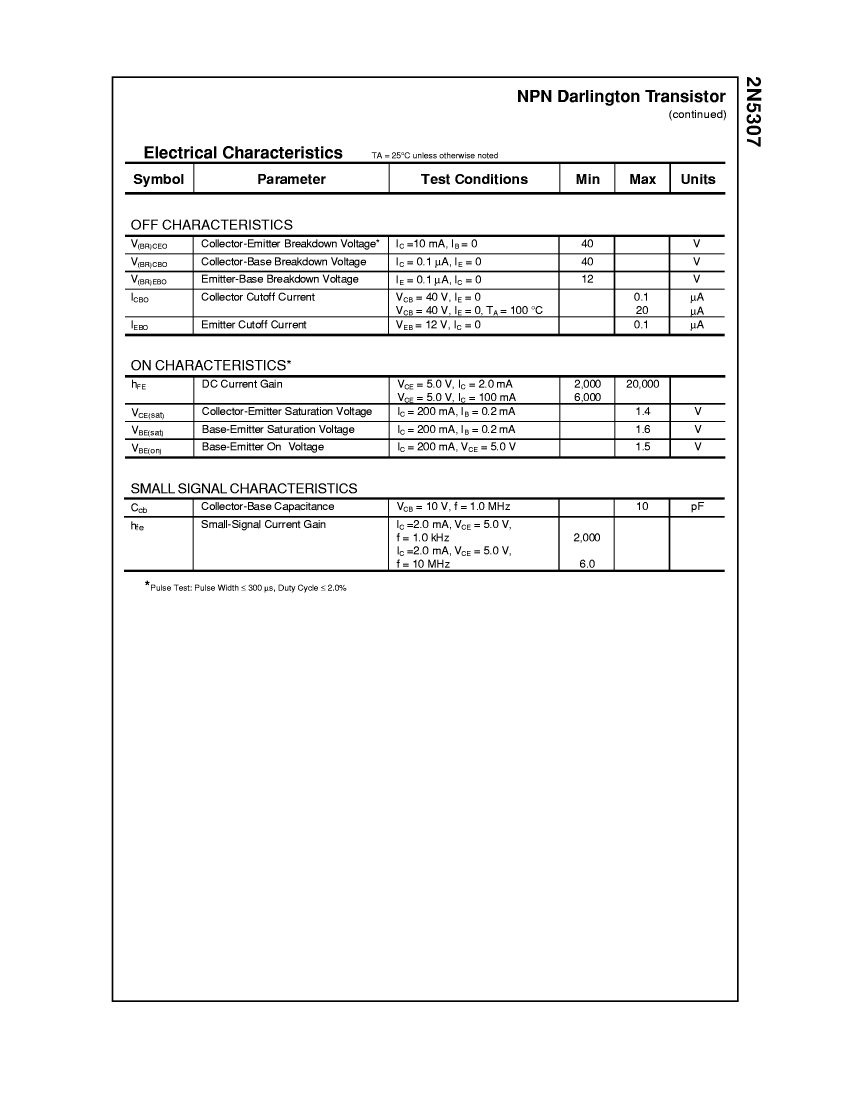

| Parameter Name | Attribute value |
| package instruction | CYLINDRICAL, O-PBCY-T3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 1.2 A |
| Collector-emitter maximum voltage | 40 V |
| Configuration | DARLINGTON |
| Minimum DC current gain (hFE) | 6000 |
| JEDEC-95 code | TO-92 |
| JESD-30 code | O-PBCY-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | BOTTOM |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2N5307D26Z | 2N5307D74Z | 2N5307D27Z | 2N5307D75Z | 2N5307J18Z | 2N5307J05Z | |
|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN | Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN |
| package instruction | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 |
| Reach Compliance Code | unknow | compli | unknow | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 1.2 A | 1.2 A | 1.2 A | 1.2 A | 1.2 A | 1.2 A |
| Collector-emitter maximum voltage | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V |
| Configuration | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON | DARLINGTON |
| Minimum DC current gain (hFE) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| JESD-30 code | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| JEDEC-95 code | TO-92 | TO-92 | TO-92 | TO-92 | - | - |
