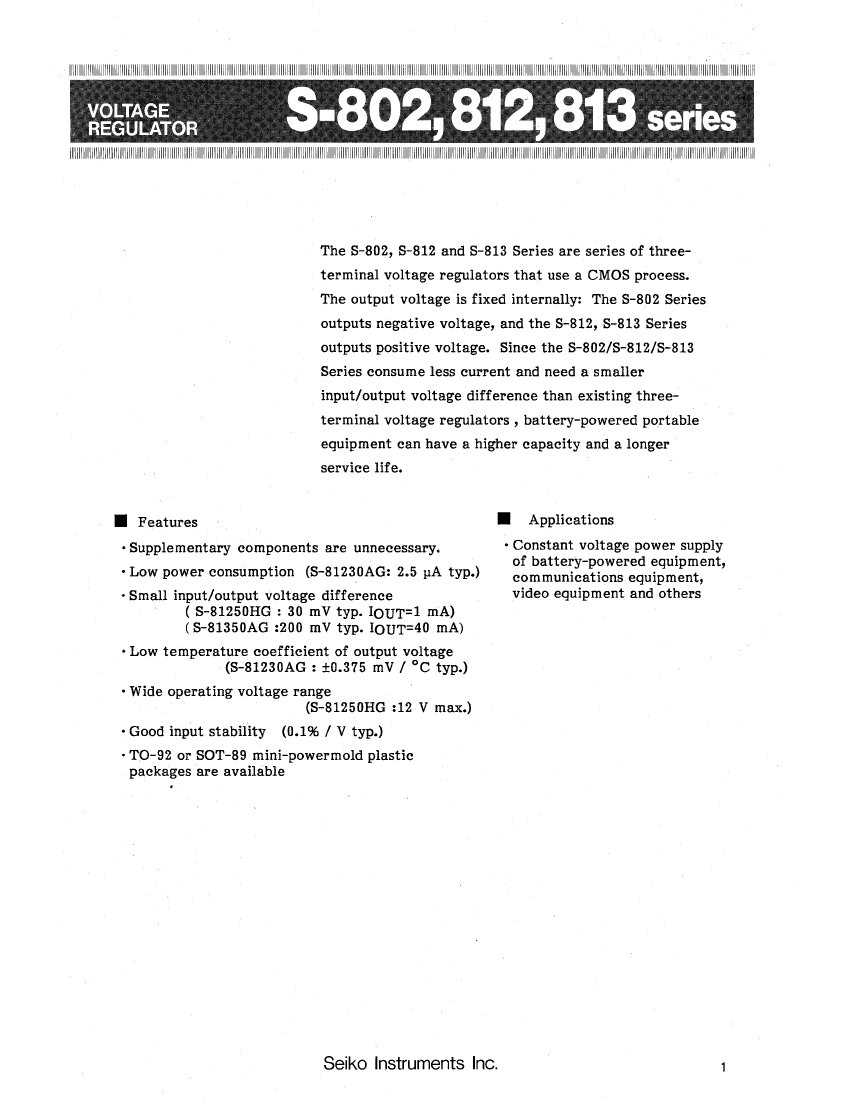

S-81252HG Overview

Regulator, 1 Output, CMOS,

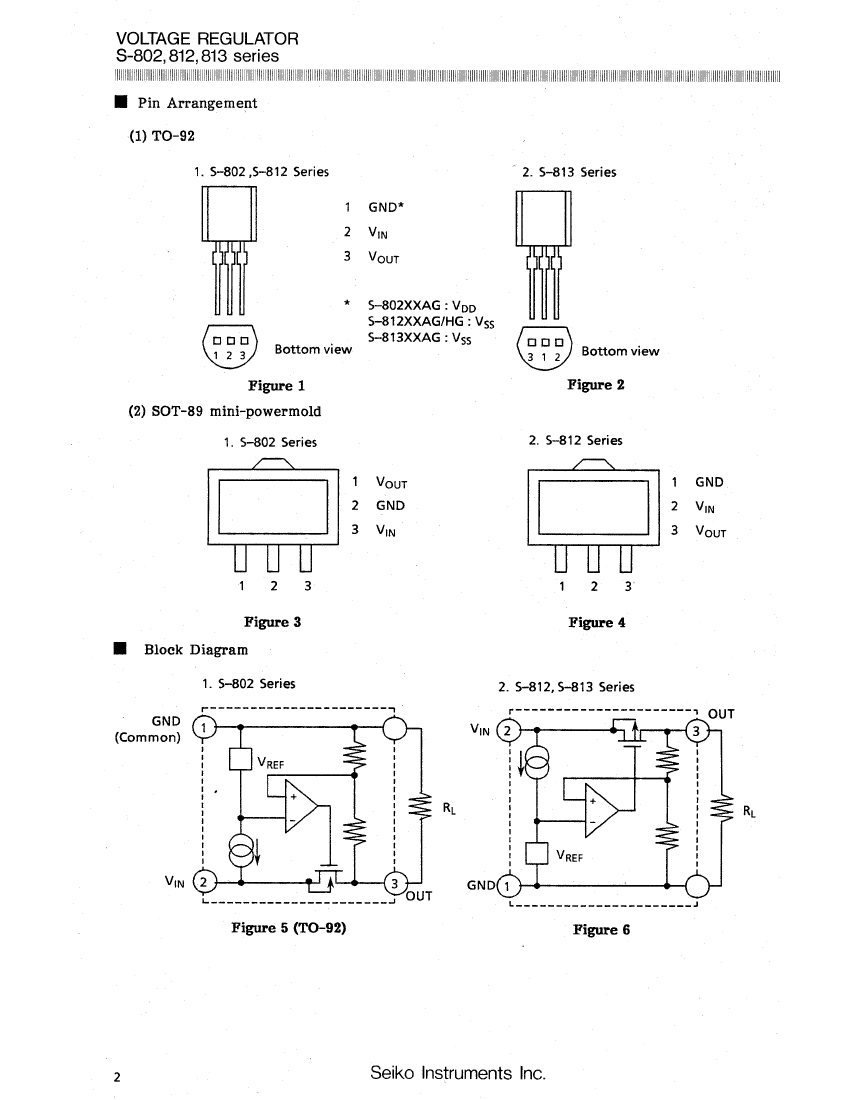

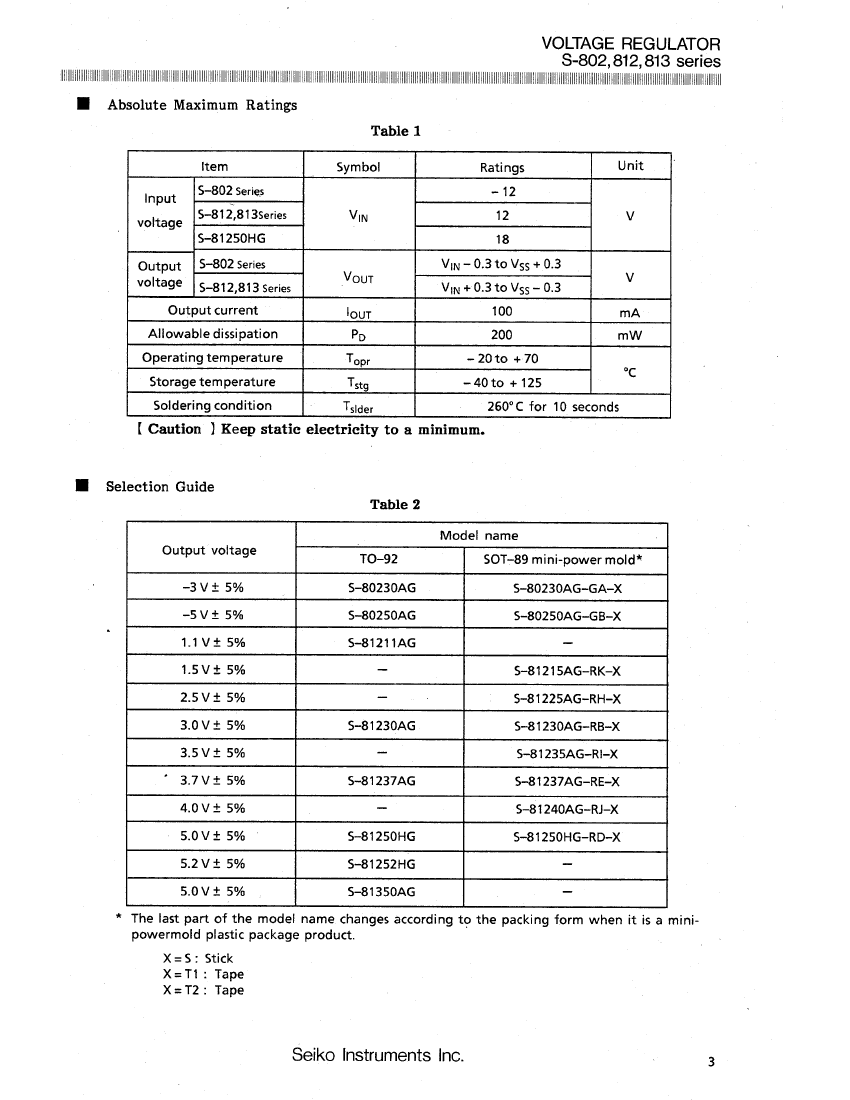

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ABLIC
package instruction	, SIP3,.1,50
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	0.03 V
Maximum absolute input voltage	12 V
JESD-609 code	e0
Maximum load regulation	0.08%
Output times	1
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output current 1	0.04 A
Nominal output voltage 1	5.2 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1,50
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum voltage tolerance	4%

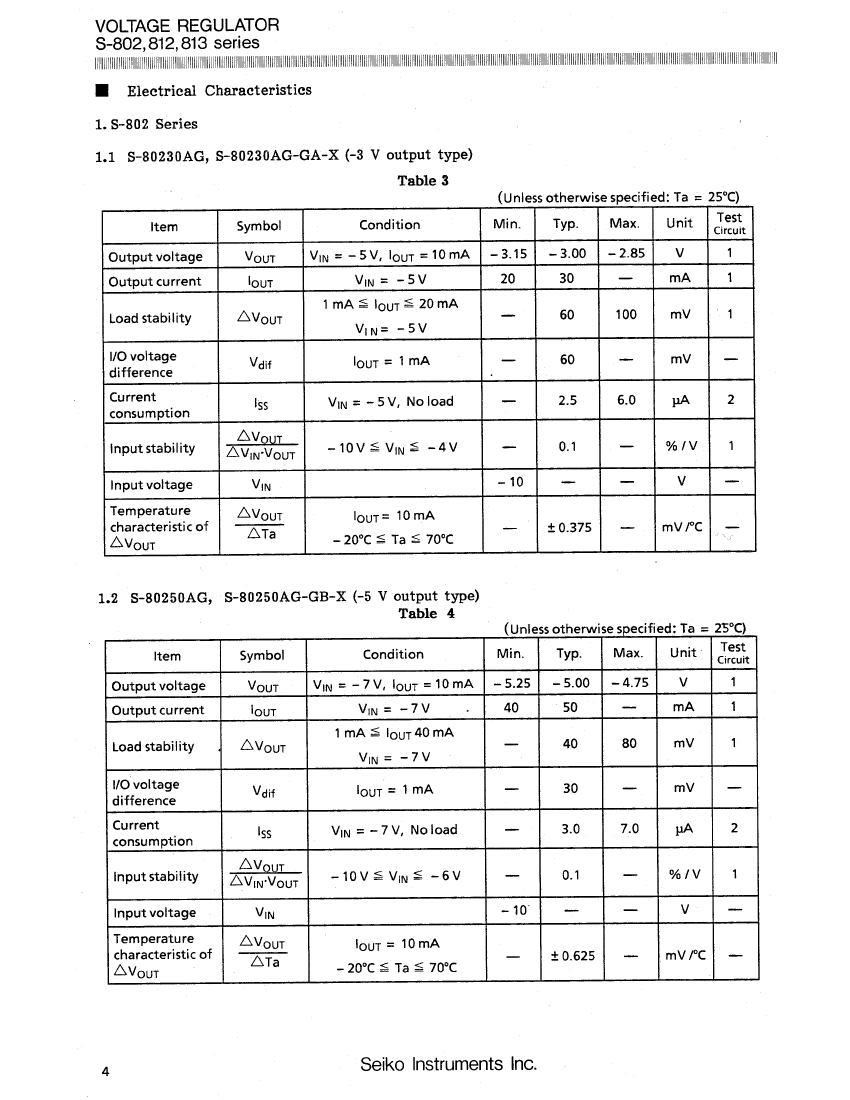

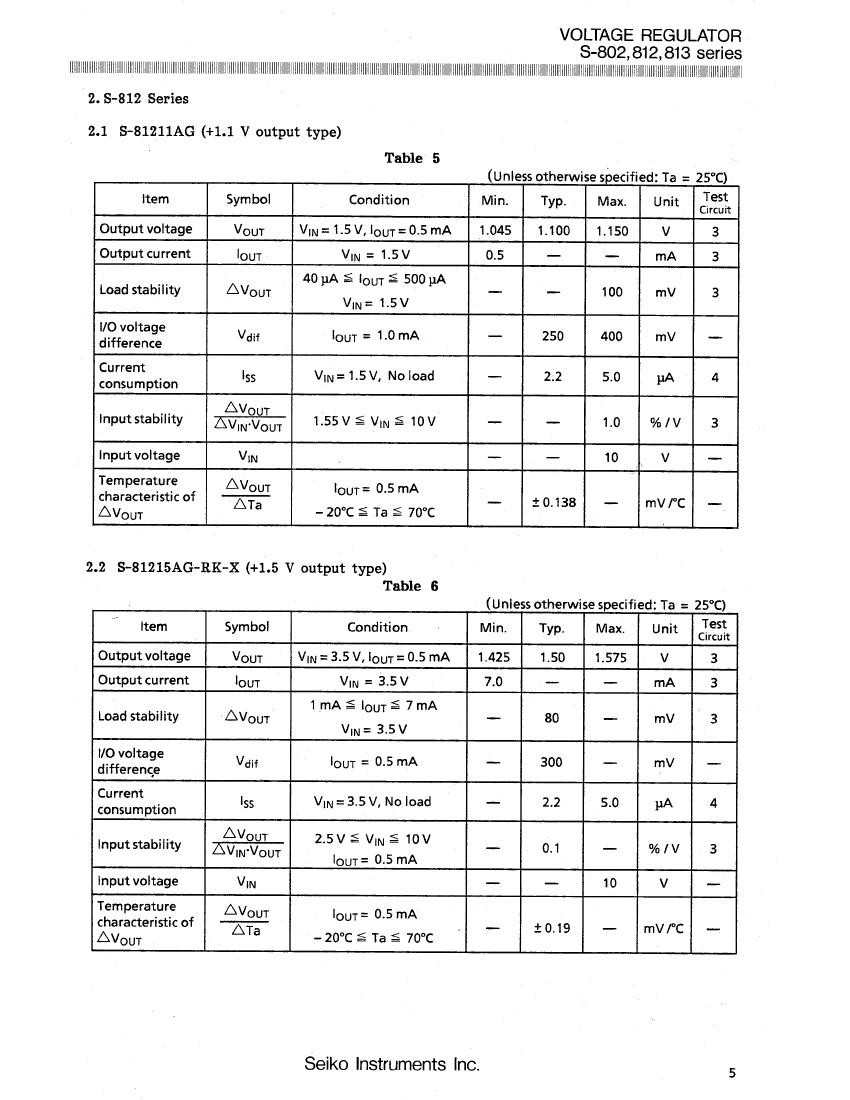

	S-81252HG	S-81230AG	S-80230AG
Description	Regulator, 1 Output, CMOS,	Regulator, 1 Output, CMOS,	Fixed Negative LDO Regulator, 3V, CMOS, PBCY3, TO-92, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	ABLIC	ABLIC	ABLIC
Reach Compliance Code	unknown	unknown	unknown
Adjustability	FIXED	FIXED	FIXED
Nominal dropback voltage 1	0.03 V	2.15 V	2.15 V
Maximum absolute input voltage	12 V	10 V	12 V
JESD-609 code	e0	e0	e0
Output times	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-	-20 °C
Nominal output voltage 1	5.2 V	3 V	3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1,50	SIP3,.1,50	SIP3,.1,50
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	BOTTOM
Maximum voltage tolerance	4%	5%	5%
package instruction	, SIP3,.1,50	-	TO-92, SIP3,.1,50
Maximum load regulation	0.08%	-	0.08%
Maximum output current 1	0.04 A	-	0.02 A
