ST6209BB1/XXX datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ST6209BB1/XXX

PDF

ST6209BB1/XXX: Description8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size65KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

ST6209BB1/XXX Overview

8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20

ST6209BB1/XXX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-20
Contacts	20
Reach Compliance Code	not_compliant
Has ADC	YES
Address bus width
bit size	8
CPU series	ST6200
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Number of I/O lines	12
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	1036
ROM programmability	MROM
Maximum seat height	3.93 mm
speed	8 MHz
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	HCMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

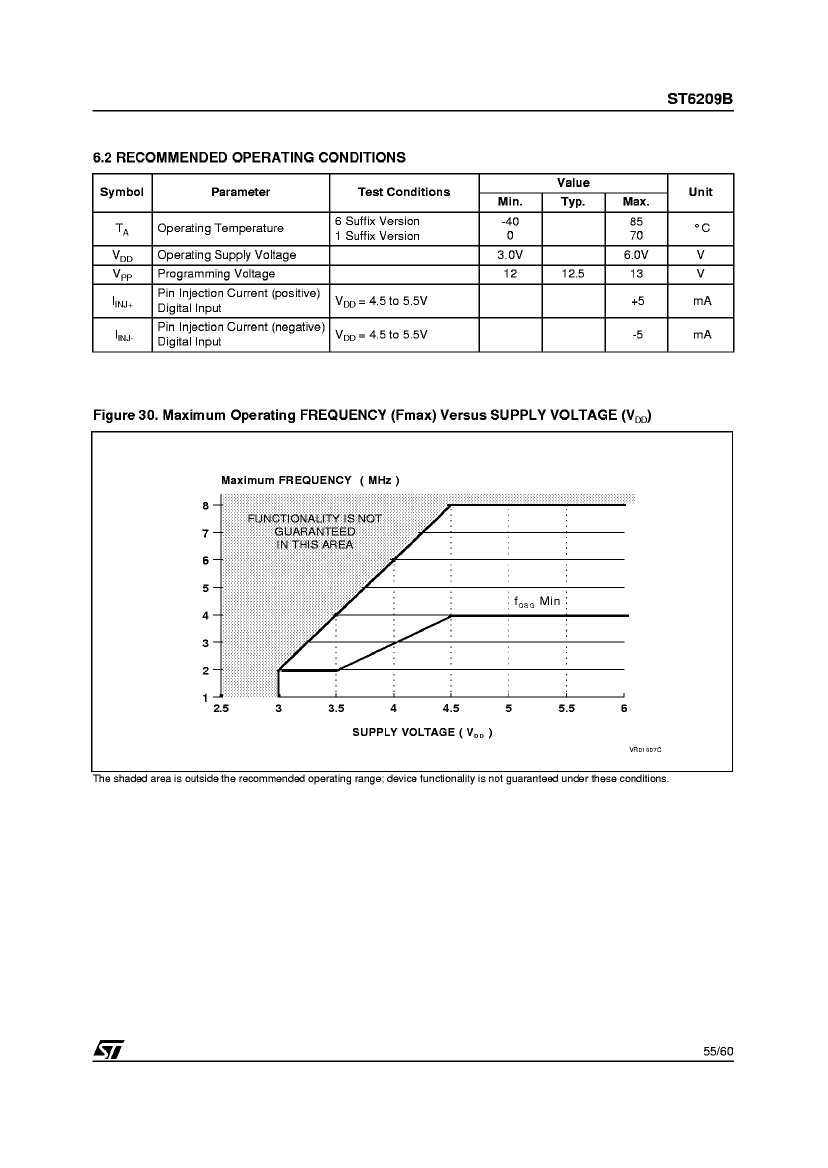

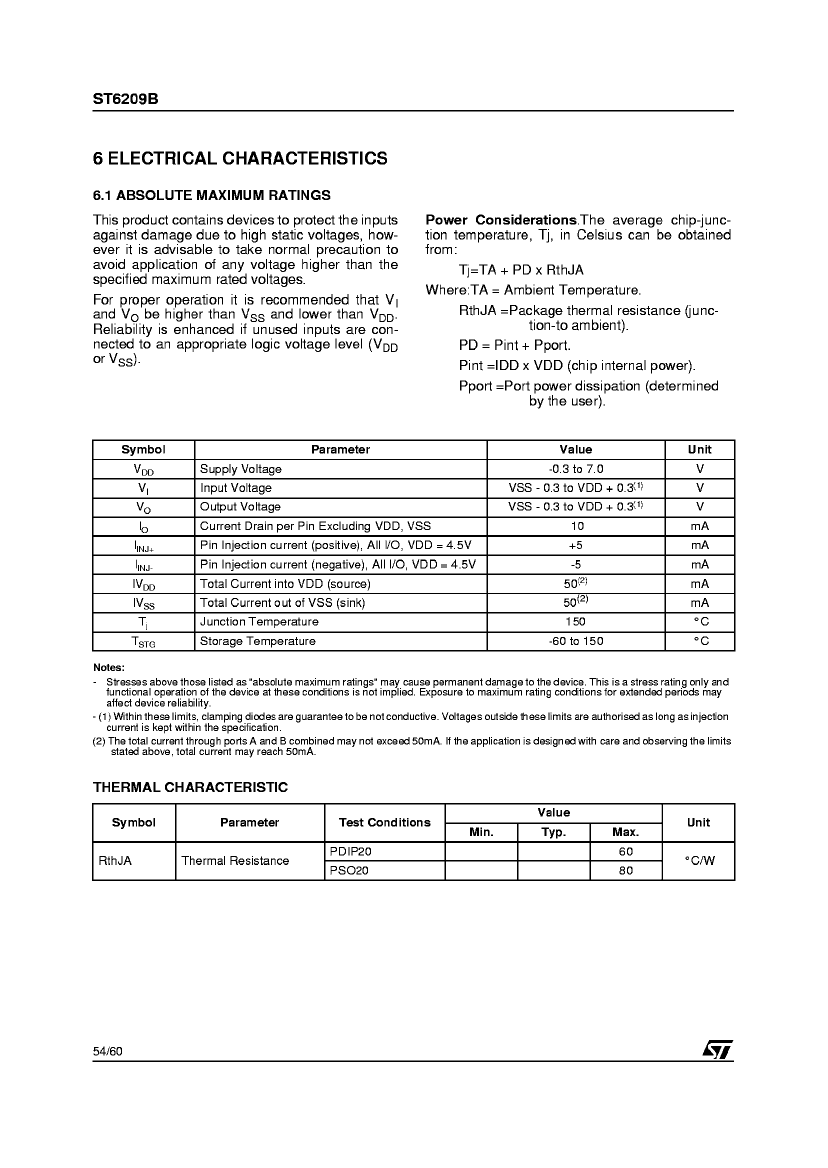

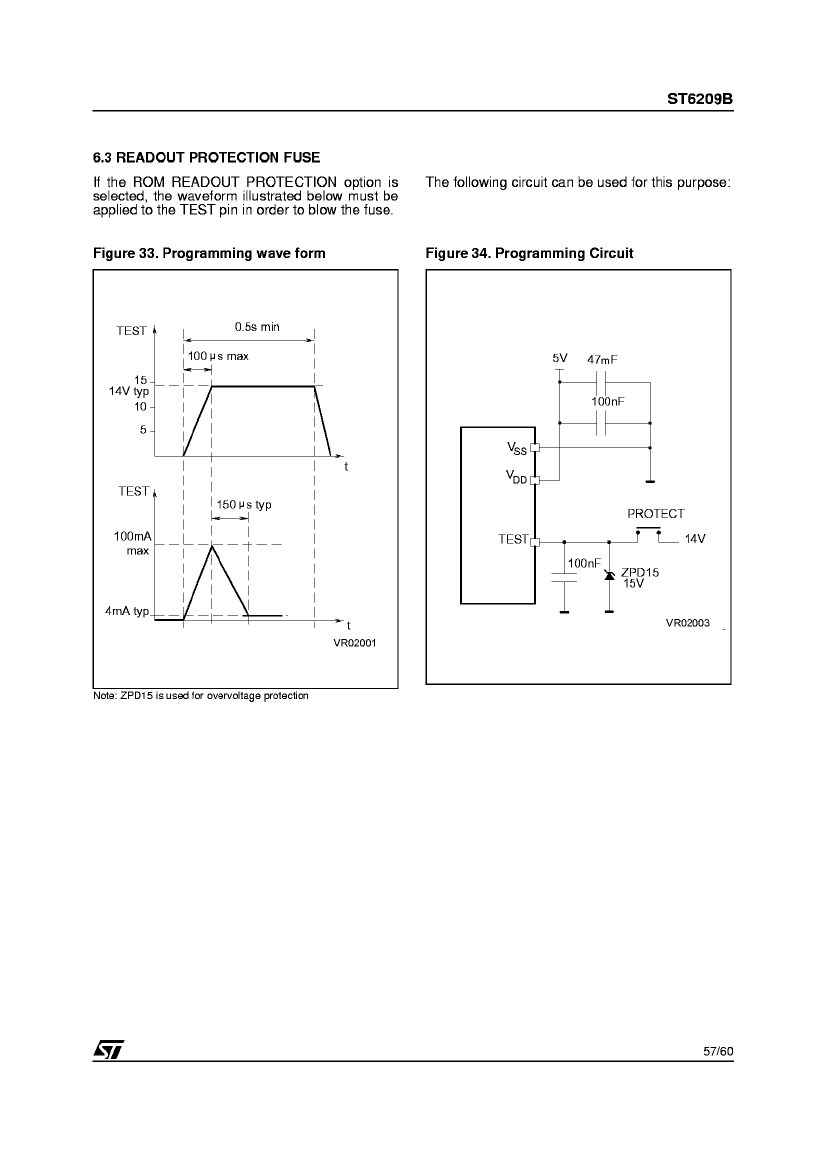

Preview

Download Datasheet

ST6209BB1/XXX Related Products

	ST6209BB1/XXX	ST6209BB6/XXX	ST6209BM1/XXX	ST6209BM6/XXX
Description	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDSO20, 0.300 INCH, PLASTIC, SOP-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDSO20, 0.300 INCH, PLASTIC, SOP-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	SOIC	SOIC
package instruction	0.300 INCH, PLASTIC, DIP-20	0.300 INCH, PLASTIC, DIP-20	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, SOP-20
Contacts	20	20	20	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Has ADC	YES	YES	YES	YES
bit size	8	8	8	8
CPU series	ST6200	ST6200	ST6200	ST6200
maximum clock frequency	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	R-PDIP-T20	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0
Number of I/O lines	12	12	12	12
Number of terminals	20	20	20	20
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	SOP20,.4	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	64	64	64	64
rom(word)	1036	1036	1036	1036
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	3.93 mm	3.93 mm	2.85 mm	2.85 mm
speed	8 MHz	8 MHz	8 MHz	8 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	YES	YES
technology	HCMOS	HCMOS	HCMOS	HCMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.5 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
