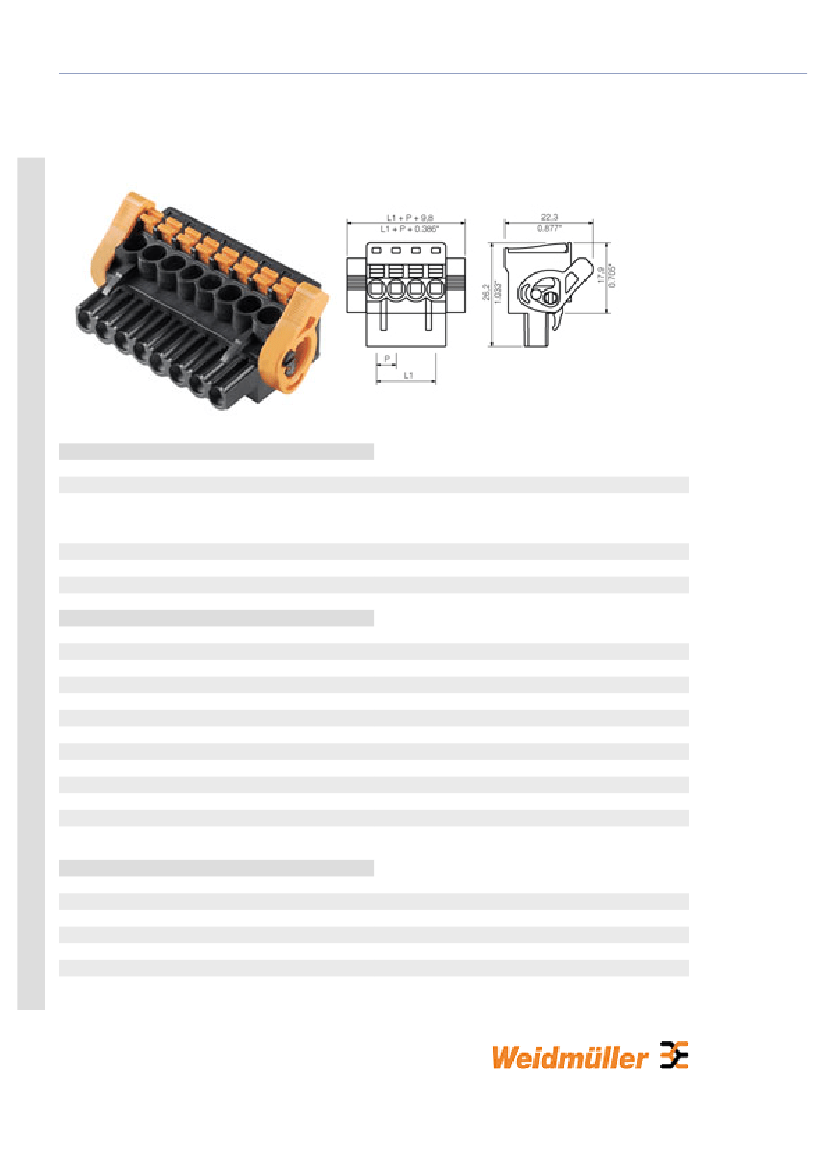

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/90/270 | BLF 5.00/90LH SN
Connectable conductors
Clamping range, min.
Clamping range, max.
Conductor connection cross-section AWG, min.
Conductor connection cross-section AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Stranded, max. H07V-R
Stranded, min. H07V-R
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
w. wire end ferrule, DIN 46228 pt 1, min
with wire end ferrule, DIN 46228 pt 1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
with plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. of poles (Tu=20°C)
Rated current, max. No. of poles (Tu=20°C)
Rated current, no. of poles (Tu=40°C), min.
Rated current, no. of poles (Tu=40°C), max.
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage at overvoltage category/pollution
degree III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group B)
Rated current (use group B)
UL 1059 rating data
Rated voltage (use group B)
Rated current (use group B)
Approvals
Approvals institutes
Classifications
eClass 6.0
Notes
Notes
0.13 mm²
3.31 mm²
AWG 26
AWG 12
0.2 mm²
2.5 mm²
2 mm²
0 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
2.4 mm x 1.5 mm
18.5 A
6A
12.5 A
6A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
300 V
10 A
300 V
10 A
CSA; CURUS
27-26-07-08
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/90/270 | BLF 5.00/90LH SN
Notes
Similar products
Order No.
1979990000
1980000000
1980010000
1980020000
1980030000
1980040000
1980050000
1980060000
1980070000
1980080000
1980090000
1980100000
1980110000
1980120000
1980130000
1980140000
1980150000
1980160000
Part designation
BLF 5.00/03/90LH SN BK BX
BLF 5.00/04/90LH SN BK BX
BLF 5.00/05/90LH SN BK BX
BLF 5.00/06/90LH SN BK BX
BLF 5.00/07/90LH SN BK BX
BLF 5.00/08/90LH SN BK BX
BLF 5.00/09/90LH SN BK BX
BLF 5.00/10/90LH SN BK BX
BLF 5.00/11/90LH SN BK BX
BLF 5.00/12/90LH SN BK BX
BLF 5.00/13/90LH SN BK BX
BLF 5.00/14/90LH SN BK BX
BLF 5.00/15/90LH SN BK BX
BLF 5.00/16/90LH SN BK BX
BLF 5.00/17/90LH SN BK BX
BLF 5.00/18/90LH SN BK BX
BLF 5.00/19/90LH SN BK BX
BLF 5.00/20/90LH SN BK BX
Version
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 17, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 19, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 20, 90°, Box
-3-
