FST3244 8-Bit Bus Switch
June 1997
Revised January 2005
FST3244
8-Bit Bus Switch
General Description
The Fairchild Switch FST3244 provides 8-bits of high-
speed CMOS TTL-compatible bus switching in a standard
’244 pin-out. The low on resistance of the switch allows
inputs to be connected to outputs without adding propaga-
tion delay or generating additional ground bounce noise.
The device is organized as two 4-bit switches with separate
OE inputs. When OE is LOW, the switch is ON and Port A
is connected to Port B. When OE is HIGH, the switch is
OPEN and a high-impedance state exists between the two
ports.
Features
■
4
:
switch connection between two ports.
■
Minimal propagation delay through the switch.
■
Low l
CC
.
■
Zero bounce in flow-through mode.
■
Control inputs compatible with TTL level.
Ordering Code:
Order Number
FST3244WM
FST3244QSC
FST3244MTC
FST3244MTCX_NL
(Note 1)
Package Number
M20B
MQA20
MTC20
MTC20
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
20-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150" Wide
20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Pb-Free 20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Note 1:
“_NL” indicates Pb-Free package (per JEDEC J-STD-020B). Device available in Tape and Reel only.
Logic Diagram
Connection Diagram
Truth Table
Inputs
OE
1
OE
2
L
H
L
H
Inputs/Outputs
1A, 1B
1A
1A
Z
Z
1B
1B
2A
Z
2A, 2B
2A
Z
2B
2B
Pin Descriptions
Pin Name
OE
1
, OE
2
1A, 2A
1B, 2B
Description
Bus Switch Enable
Bus A
Bus B
DS500021
L
L
H
H
© 2005 Fairchild Semiconductor Corporation
www.fairchildsemi.com
FST3244
Absolute Maximum Ratings
(Note 2)
Supply Voltage (V
CC
)
0.5V to
7.0V
0.5V to
7.0V
DC Switch Voltage (V
S
)
DC Input Voltage (V
IN
) (Note 3)
0.5V to
7.0V
50mA
DC Input Diode Current (l
IK
) V
IN
0V
DC Output (I
OUT
) Sink Current
DC V
CC
/GND Current (I
CC
/I
GND
)
Storage Temperature Range (T
STG
)
Recommended Operating
Conditions
(Note 4)
Power Supply Operating (V
CC
)
Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Input Rise and Fall Time (t
r
, t
f
)
Switch Control Input
Switch I/O
Free Air Operating Temperature (T
A
)
0nS/V to 5nS/V
0nS/V to DC
4.0V to 5.5V
0V to 5.5V
0V to 5.5V
/
100mA
65
q
C to
150
q
C
128mA
40
q
C to
85
q
C
Note 2:
The Absolute Maximum Ratings are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The Recommended Operating Conditions tables will define the conditions
for actual device operation.
Note 3:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 4:
Unused control inputs must be held HIGH or LOW. They may not
float.
DC Electrical Characteristics
Symbol
V
IK
V
IH
V
IL
I
I
I
OZ
R
ON
Parameter
Clamp Diode Voltage
High Level Input Voltage
Low Level Input Voltage
Input Leakage Current
OFF-STATE Leakage Current
Switch On Resistance
(Note 6)
V
CC
(V)
4.5
4.0–5.5
4.0–5.5
5.5
5.5
4.5
4.5
4.5
4.0
I
CC
Quiescent Supply Current
Increase in I
CC
per Input
5.0V and T
A
T
A
Min
40
q
C to
85
q
C
Typ
(Note 5)
Units
Max
Conditions
I
IN
1.2
2.0
0.8
V
V
V
18mA
r
1.0
r
1.0
4
4
8
11
7
7
15
20
3
2.5
P
A
P
A
:
:
:
:
P
A
mA
0
d
V
IN
d
5.5V
0
d
A, B
d
V
CC
V
IN
V
IN
V
IN
V
IN
V
IN
0V, I
IN
0V, I
IN
2.4V, I
IN
2.4V, I
IN
64mA
30mA
15mA
15mA
0
5.5
5.5
25
q
C
V
CC
or GND, I
OUT
'
I
CC
One input at 3.4V
Other inputs at V
CC
or GND
Note 5:
Typical values are at V
CC
Note 6:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On resistance is determined by the lower of the
voltages on the two (A or B) pins.
www.fairchildsemi.com
2
FST3244
AC Electrical Characteristics
C
L
Symbol
Parameter
V
CC
Min
t
PHL
,t
PLH
t
PZH
, t
PZL
t
PHZ
, t
PLZ
Prop Delay Bus to Bus (Note 7)
Output Enable Time
Output Disable Time
1.0
1.0
T
A
40
q
C to
85
q
C,
50pF, RU RD 500
:
V
CC
Min
4.0V
Max
0.25
6.1
5.6
ns
ns
ns
V
I
V
I
V
I
6.2
V
I
V
I
OPEN
7V for t
PZL
OPEN for t
PZH
7V for t
PLZ
OPEN for t
PHZ
Figures 1, 2
Figures 1, 2
Figures 1, 2
Units
Conditions
Figure No.
4.5 – 5.5V
Max
0.25
5.6
Note 7:
This parameter is guaranteed by design but is not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On
resistance of the switch and the 50pF load capacitance, when driven by an ideal voltage the source (zero output impedance).
Capacitance
Symbol
C
IN
C
I/O
Note 8:
T
A
(Note 8)
Parameter
Typ
3
5
Max
Units
pF
pF
V
CC
5.0V
5.0V
Conditions
Control Pin Input Capacitance
Input/Output Capacitance
25
q
C, f
V
CC
, OE
1 MHz, Capacitance is characterized but not tested.
AC Loading and Waveforms
Note:
Input driven by 50
:
source terminated in 50
:
Note:
C
L
includes load and stray capacitance
Note:
Input PRR
1.0 MHz, t
W
500 nS
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3
www.fairchildsemi.com
FST3244
Physical Dimensions
inches (millimeters) unless otherwise noted

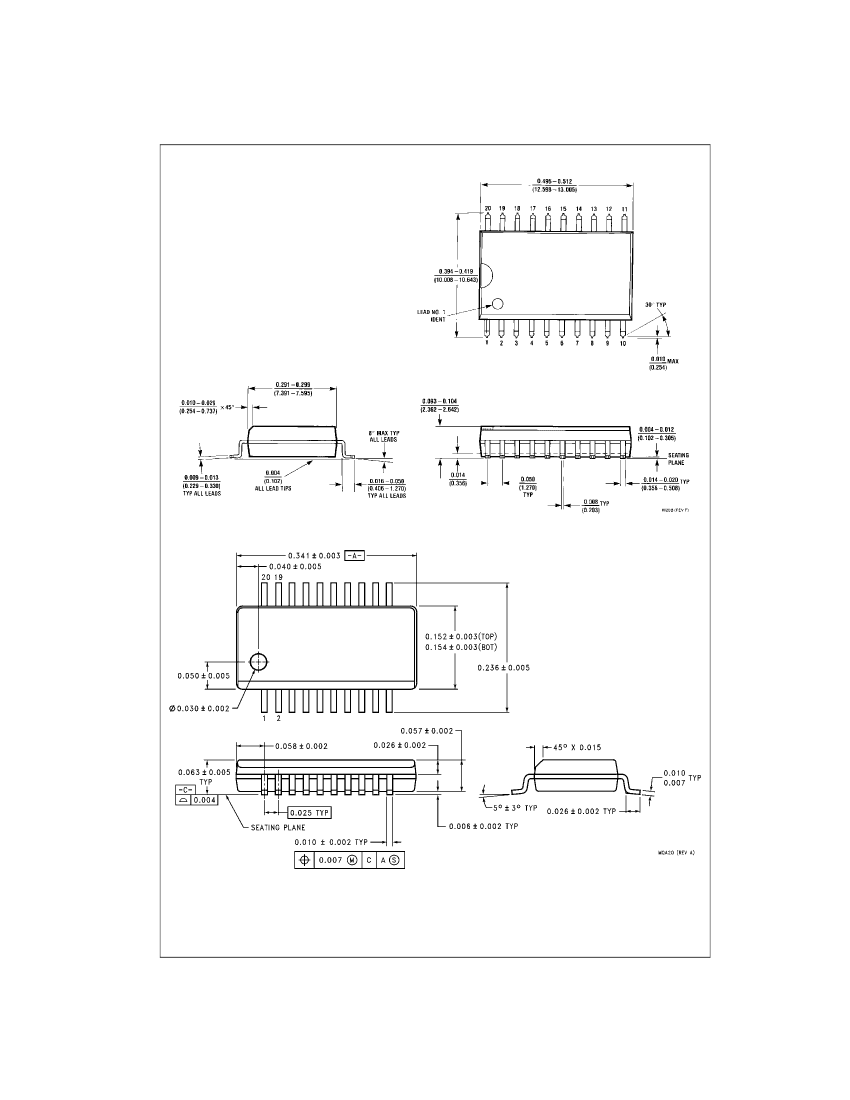

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
Package Number M20B
20-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150" Wide
Package Number MQA20
www.fairchildsemi.com
4
FST3244 8-Bit Bus Switch
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

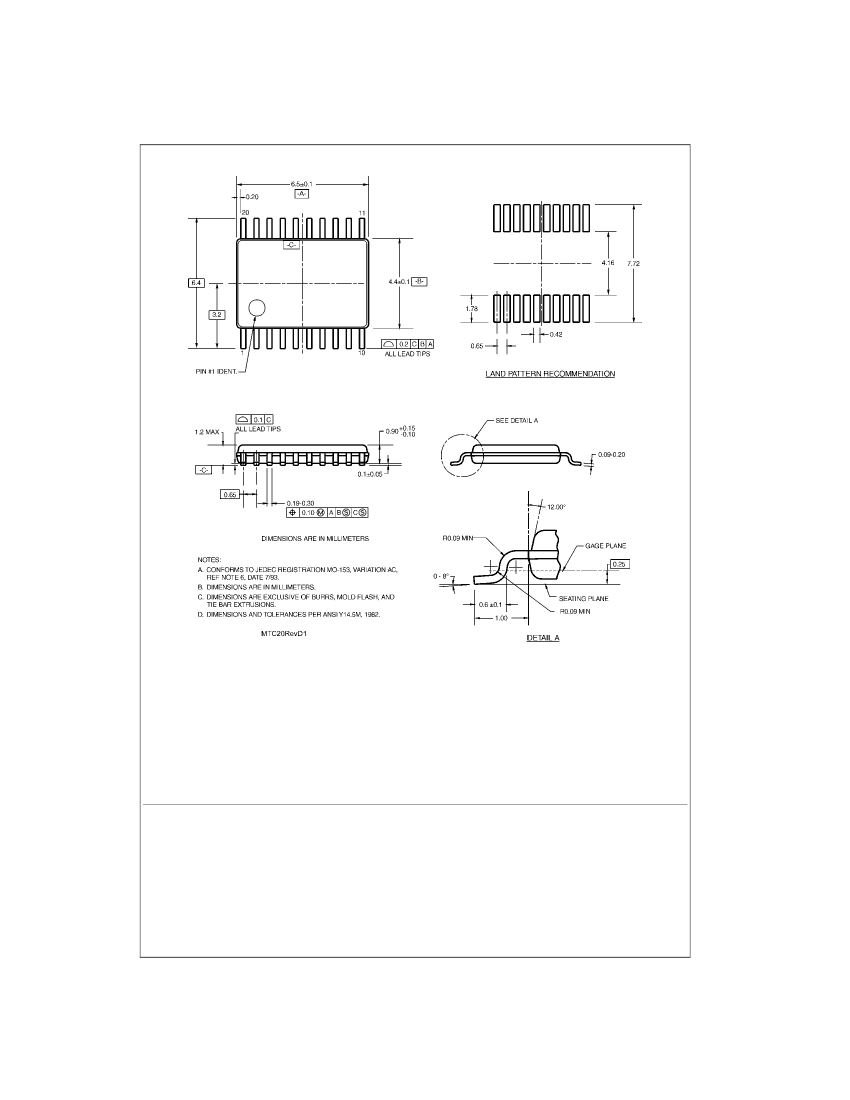

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Package Number MTC20
Technology Description
The Fairchild Switch family derives from and embodies Fairchild’s proven switch technology used for several years in its
74LVX3L384 (FST3384) bus switch product.
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
5
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
www.fairchildsemi.com
