AWH64G-0222-IDC-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> AWH64G-0222-IDC-R

AWH64G-0222-IDC-R: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

AWH64G-0222-IDC-R Overview

Board Connector, 64 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking

AWH64G-0222-IDC-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	ASSMANN
Reach Compliance Code	compliant
body width	0.327 inch
subject depth	0.756 inch
body length	3.965 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	AWH
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	LATCH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	64

Preview

Download Datasheet

View All

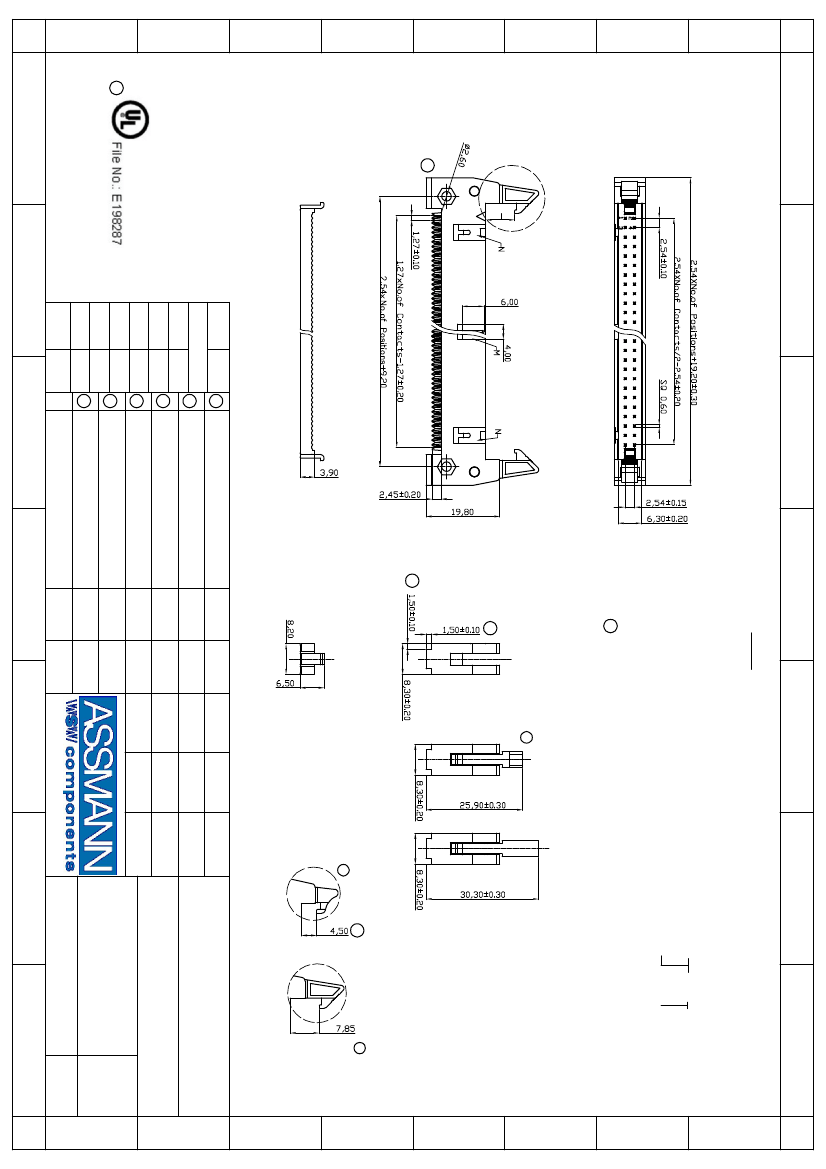

NOTES:

MATERIAL

1.Insulator Material:PBT+30%G.F,(UL94V-0),Grey

2.Contact Material : Brass

3.Contact Plating : 1u" Au selective Over Ni

ELECTRICAL

1.Current Rating : 3.0 AMP

2.Withstand Voltage : 1000V AC/minute

3.Contact Resistance : 20mΩ max

4.Insulation Resistance: 1000MΩ min

ENVIRONMENTAL

1.Operation Temperature: -40°C to +105°C

2.Packing : Tube

3.10P~18P with slot"M" without slot "N"

20P-64P with slot "M" and "N"

Ordering Information

AWH xxG-02x2-IDC

No. of Contacts :

10,14,16,20,26,

30,34,40,50,60,64

Latch Type

0 -without latch

2 -with short latches

3 -with long latches

without Latch

with short Latch

with long Latch

Scale

Free

TOLERANCE

X.X

X.XX

ANGLE

Modify the shape of insulator

Change the packing tray into tube

05.06.2017

21.09.2015

Winnie

Drawn

Date

25.01.2006

Short Latch

Long Latch

RoHS compliant

Unit: mm

Name

Customer-No.

Alex

±0.40

±0.25

X.XXX ±0.15

Add UL file no.

Upddate

12.12.2013

29.03.2013

Winnie

Amy

Approved

05.06.2017

Winnie

ASSMANN WSW-No.

AWH xxG-02x2-IDC

3°

Correct drawing of short latch

Modify dimension from 7.65 to 7.85

05.05.2010

03.11.2009

Dean

Drawing-No.

DIM

TOL

ASS 2231 CO

Id.

Modification

Date

Name

rev08

Replace

Sheet
